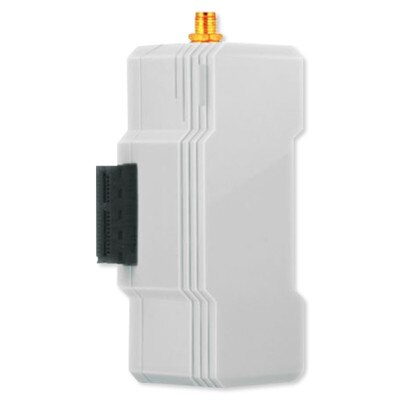

Zipato Zipabox 3G Expansion Module

Keep Your Zipabox Connected To A Network

The Zipato Zipabox 3G Expansion Module keeps your Zipabox or Zipabox2 controllers connected to a network if there's an IP disruption. It features a SLIM card slot to allow the main unit of the Zipabox to connect to a 3G network.

• Keeps your Zipabox controller connected to a network during IP disruptions
• Micro SIM card support
• 7.76Mbps uplink speed (maximum)
• Supports GSM/GPRS/UMTS/EDGE/HSDPA
• Easily snaps into a Zipabox expansion slot

Installation Details

This device is meant for mounting with the Zipato Zipabox or Zipabox2. Before connecting it, power down your Zipabox by disconnecting it from the power supply. The 3G Expansion Module must always be installed in expansion slot 1, next to the Zipabox. Other modules can be attached to the 3G module. After connecting the 3G module to the Zipabox, connect the Zipabox to the power supply again.

Contents

• Zipabox 3G Expansion Module
• Manual

NOTE: Requires connection to the Zipato Zipabox or Zipabox2.

Security ' Automation For Every Home

Zipato is a cloud-based home automation and security system designed to make homes safe, comfortable and energy efficient. Compatible with a variety of wired and wireless automation protocols, Zipato supports flexible installation, customization, and DIY expandability. Control Zipato locally or over the Internet for complete home control and peace of mind!

Product Features

• UMTSP/HSPA module
• GSM/GPRS/UMTS/EDGE/HSDPA support
• [EU] 900/2100MHz@UMTS
• [EU] 900/1800MHz@GSM
• [US] 850/1900MHz@UMTS
• Maximum 7.76Mbps uplink speed
• Micro SIM card support

Technical Details

• Manufacturer Part #: ZBM.3G
• I/O ' LEDS: 1 status LED
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Humidity: 5% to 95% non-condensing
• Storage: -13°F to 158°F (-25°C to 70°C)
• Dimensions: 1.2(W) x 3.4(H) x 1.9 in (30 x 86 x 48 mm)
• Certifications: EMC, FCC, CE
• Warranty: 1 Year

»Zipato ZBM.3G Zipabox 3G Expansion Module Spec Sheet (.pdf)
