Zipato ZipaTile2 Z-Wave Home Automation Controller

Order now and we'll ship same business day (if ordered before 3 pm PST).

SKU: ZPZT2HBSZWUSULE
$599.00

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

The Ultimate All-In One Smart Home Hub

Center control of your home into one extremely powerful controller with the Zipato ZipaTile2 Z-Wave Home Automation Controller. The Zipatile 2 is a complete home automation and security hub controller housed within a single wall-mount tablet. Using integrated sensors, touchscreen keypad, security alarm, IP camera, speaker and microphone, the ZipaTile 2 offers the ultimate starting point for building out your smart home system. And best of all, it serves as the command center for all of the most popular communications protocols, including Z-Wave Plus, WiFi, and Bluetooth.

  • Touchscreen controller manages devices and provides local control over smart home system
  • Supports Z-Wave, Bluetooth, and WiFi devices out-of-the-box
  • Built-in sensors detect motion, noise, shock, temperature, humidity, light
  • Displays video from integrated IP camera with speaker and microphone
  • Simple drag and drop rule creation in Zipato web portal
  • Free app for iOS and Android mobile devices
  • Supports "clustering" for use with additional controllers

The ZipaTile 2 is a wall-mounted Android-powered home automation controller that combines an 8-inch touchscreen tablet (800 x 1280) with built-in communication radios and sensors for Motion, Shock, Sound, Light, Temperature, and Humidity. This Z-Wave home automation device comes loaded with integrated features and functions and provides a dual dry output and dry input for wiring in other external devices. The ZipaTile 2 can be remotely controlled through the Zipato Rule Creator online web portal and by iOS or Android powered smart devices via the Zipato app, connecting you to your home wherever you are.

Complete Feature List

Home Automation Controller

  • Local home automation and security manager
  • Local room scene manager
  • Remote control with smartphone
  • Online rule creator for the Zipatile or whole home system
  • Out of the box Z-Wave, WiFi, Bluetooth connectivity
  • Optional support for Nest, Philips Hue, Sonos, Homekit and more

Security Systems: Alarm

  • Remote control with smartphone
  • 24/7 central monitoring
  • Photo and video messages
  • Motion sensor
  • Noise sensor
  • Shock sensor
  • Multi-sound alarm siren

Wall-Mount Tablet with Wi-Fi

  • Touch keypad with 6 scene buttons
  • Web browser, email, Skype
  • Multimedia/home theater control
  • Sticky notes
  • News stream
  • Photo frame
  • Weather forecast
  • Room temperature display
  • Room humidity display
  • Room illuminance display

Elder Care

  • Motion sensor
  • Noise detector
  • Automatic check calls
  • Panic button with auto call
  • Sound reminders
  • Video and voice calls

Thermostat

  • Remote control with smartphone
  • Air condition control
  • Gas/floor heating control
  • Temperature meter
  • Exterior temperature meter

IP Camera

  • Remote control with smartphone
  • 2 megapixels for high-resolution
  • Live video stream (H.264)
  • Motion-activated and scheduled recordings

Intercom

  • Remote control with smartphone
  • Video calls
  • Conference calls
  • Door phone control
  • SIP server client
  • Dual-network IP connectivity

How It Works

The Zipato ZipaTile 2 receives programming information from the Zipato web portal through your existing Internet router and uses wireless technologies, such as Z-Wave or Bluetooth, to communicate with connected devices. The Zipatile 2 also supports wired connections via dry contacts for additional local sensors. The Zipatile 2's built-in sensors provide full coverage of the room it is installed in, while at the same time watching the rest of your home through connected sensors. This ensures the possibility for complete home security coverage and automation.

Zipato Web Portal & Smartphone App

The Zipato Rule Creator web portal is free to access and requires no subscription fees. You will use the web portal to log in online to configure your devices, monitor your home's security, and review energy consumption of metered devices. You'll also be able to set up multiple users with different access rights, review home event history, set up email and text alerts, and customize your system by adding or removing devices.

The web portal can be accessed through any web browser, as well as a free smartphone app. The app is available to download for iOS and Android mobile devices, providing convenient remote control for your home.

DIY Customization with Zipato Rule Creator

Through the web portal, you can access the Zipato Rule Creator, an online intuitive graphical programming tool that lets you add devices or change settings whenever you want from anywhere in the world. Just log into your account to make changes. No software installation or programming skills are required!

The Zipato Rule Creator allows you to create "rules" for your connected devices. Rules trigger events when other events occur. You can easily develop rules yourself with the Rule Creator's comprehensive library of drag and drop micro blocks (control functions), which can be mixed, matched and stacked to create simple or complex control sequences. Events can be triggered by:

  • Conditions (many)
  • Status change of any device
  • Absolute time
  • Sunrise/sunset (with offset)
  • By email received
  • Security panel events
  • By matched infrared codes
  • Recurring at regular second/minute intervals
  • Event actions
  • Optional Monitoring Service

As a free service from Zipato, you can receive automatic system monitoring and alerts from the Zipato Home Monitoring Servers. Alerts can be customized with the Zipato Rule Creator.

Installation Details

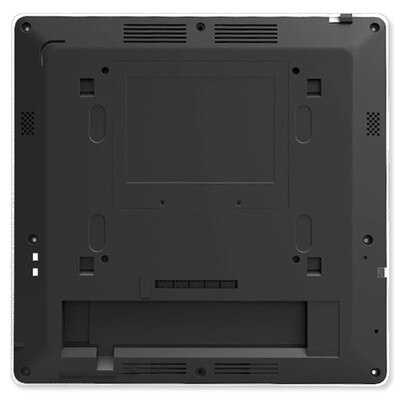

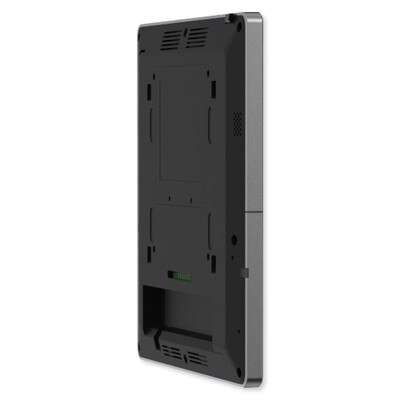

The ZipaTile 2 is designed either to mount to a wall with the included hardware, or to sit in the included tabletop stand. Ideally, it should be placed in a central location where you can use the touchscreen display to monitor your home environment, communicate through the video intercom, and conveniently adjust settings.

The unit can be powered in two different ways, either with the included plug-in power supply or with a wired connection through the wall.

Contents

  • ZipaTile 2
  • In-Wall Power Supply
  • Wall Mounting Kit
  • VESA Mounting Kit
  • Wall Socket Adapter
  • Mounting Screws

NOTE: Requires an Internet connection.

Security & Automation For Every Home

Zipato is a cloud-based home automation and security system designed to make homes safe, comfortable and energy efficient. Compatible with a variety of wired and wireless automation protocols, Zipato supports flexible installation, customization, and DIY expandability. Control Zipato locally or over the Internet for complete home control and peace of mind!

Key Features

  • Powered by a Quad-Core ARM CPU, Mali400 MP2 GPU
  • Runs on the Android 8.1 Oreo operating system
  • 8GB of flash memory and 2GB of RAM

Supported Protocols

  • Wi-Fi 802.11 b/g/n
  • Ethernet
  • Bluetooth 4.0
  • EnOcean
  • 433 MHz
  • ULE
  • Z-Wave+ (908.42 MHz, U.S.)
  • 3G/4G wireless networks

Technical Details

  • Manufacturer Part #: zt2.hbs.zwus.ule (Black with Silver Frame)
  • CPU: Quad-Core Cortex ARM CPU
  • Memory: 2GB RAM
  • Flash Memory: 8GB
  • Operating System: Android 8.1 Oreo
  • 4 Dry Outputs: 230VAC, 1A (60 W max)
  • 1 Dry Input: 230 VAC
  • Video Camera: 2MP
  • 2 Stereo Speakers: 8Ω/1W
  • Alarm: Multi-sound alarm siren, 100db @10cm
  • Approvals: Safety: UL power supply; EMC: FCC, CE; RoHS
  • Warranty: 1 Year

Power

  • Power Input: 5VDC
  • Power Supply Input: 100-240VAC, 50/60Hz
  • Power Usage: < 2W (idle), 7W (max.)
  • Backup Battery: Li-Ion 3.7V 3500mAh
  • Optional Power Sources: PoE, HVAC using C wire

Physical

  • Operating Temperature: 32° to 104°F (0°to 40°C)
  • Storage Temperature: -13° to 158°F (-25° to 70°C)
  • Humidity: 5 to 95 percent, non-condensing
  • Dimensions: 8.05(W) x 8.05(H) x 0.35(D) inches (205 x 205 x 5 mm)
  • Weight: 1.09 pounds / 17.42 ounces (494g)
