Zipato Z-Wave Plus Multi-Sensor, Gen5 (U.S.)


Huge Savings! (All Sales Final.)

36 available at this price.

Pay in 4 interest-free payments. Learn More.

$20.78 $49.00

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

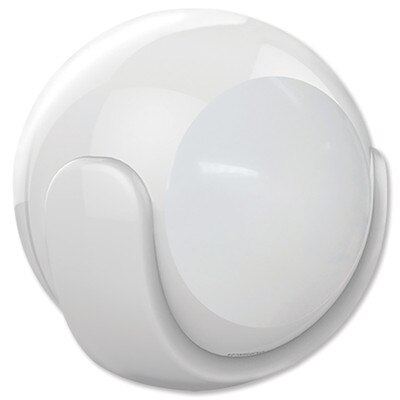

Z-Wave Sensor Detects Both Motion & Light

The Zipato Z-Wave Multi-Sensor (U.S.) is designed to not only detect motion in a room, but also measure the room's ambient light levels. It's a great multifunction PIR sensor that is ideal for both home security and lighting control. When activated, the Zipato Multi-Sensor can automatically trigger other Z-Wave devices (sold separately), such as an audible alarm when an intruder is detected, or a smart dimmer switch to add more light to a darkened room. When used with a Zipato home automation controller (sold separately), it can be integrated into a Z-Wave home automation network using Zipato Rule Creator. It's also compatible with other Z-Wave devices and controllers that display the Z-Wave logo.

  • Designed to detect motion and measure the light levels of a room
  • Can work with a Zipato home automation controller and other devices (sold separately) that display the Z-Wave logo
  • Can trigger a security system alarm
  • Battery powered (includes battery)
  • Easy installation

Installation Details

The Zipato Z-Wave Multi-Sensor is intended for wall mounting and must be installed in a corner of a room or perpendicularly to the doors (7 feet above the ground or more). Included is a sensor holder, which can be installed with screws (included) or double sided tape (not included).


  • PIR Sensor
  • Holder
  • Battery (CR123A)
  • (2) Screws
  • (2) Screw Stoppers
  • Probe
  • User Manual


  • Requires a Z-Wave network controller (sold separately).
  • Actual detection range of the sensor can be influenced by environment conditions, such as moving objects within the sensor's detection area (trees blowing in the wind, cars passing by, etc.)
  • False motion alarms may be caused by moving masses of air and heat as well. If sensor keeps reporting false alarms, install the sensor in a different location.

Security And Automation For Every Home

Zipato is a cloud-based home automation and security system designed to make homes safe, comfortable and energy efficient. Compatible with a variety of wired and wireless automation protocols, Zipato supports flexible installation, customization, and DIY expandability. Control Zipato locally or over the Internet for complete home control and peace of mind!


  • Manufacturer Part #: NE-NAS-PD01ZT.US
  • Protocol: Z-Wave – 908.4MHz US
  • Power: Battery (CR123A, included)
  • Standby Current: 16uA
  • Range:
    • Up to 164 feet (50 meters) outdoor
    • Up to 98 feet (30 meters) indoor
  • Detection Range: Up to 23 feet (7 meters)
  • Viewing Angle: 110 degrees
  • Operating Temperature: 32° to 104° F (0° to 40° C)
  • Storage Temperature: 32° to 140° F (0° to 60° C)
  • Dimensions: 1.8 x 1.8 x 1.9 inches (45 x 45 x 48 mm)
  • Certifications: UL, FCC, CE, RoHS
  • Warranty: 1-Year Standard
