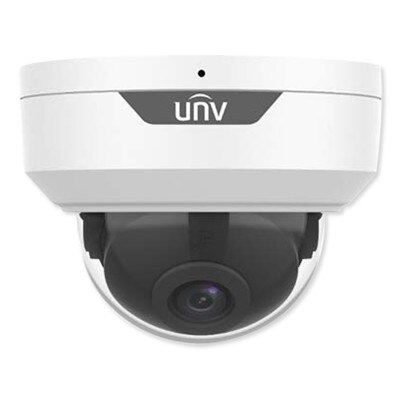

Uniview 5MP HD IR Dome Analog Camera, 2.8mm Fixed Lens

SKU: UNUACD125AF28M

Temporarily unavailable for purchase. Please contact customer service for more information.

$119.00

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

More Products by Uniview

Details

Monitor Indoor/Outdoor Activities In 5MP Resolution

Enhance the security surveillance at your property by capturing HD-quality footage with the Uniview 5MP HD IR Fixed Dome Analog Camera, 2.8mm Lens. This 5MP dome camera captures indoor/outdoor activity in 1620p resolution at 25fps and supports TVI / AHD / CVI / CVBS video outputs. It features an IR-cut filter, Lighthunter technology, and four types of exposure modes (Global, BLC, HLC, and DWDR) to ensure optimal image quality is captured in low light environments at any time of day. Its Flip feature allows you to digitally rotate the camera's image (horizontally or vertically) to ensure the view is right side up and appears correctly even if the camera is installed upside down or at an unusual angle. It also comes with a built-in microphone to capture audio recordings of the recorded footage, allowing you to not only see what is happening but hear the audio to aid in investigating and understanding the recorded video.

  • Surveillance dome camera supports up to 5MP (2880 x 1620 @25fps) and TVI / AHD / CVI / CVBS video outputs
  • LightHunter technology ensures high image quality in low-light environments
  • Flip functionality allows the view to be rotated 180 degrees
  • IP67-rated as weather resistant and IK10-rated as vandal resistance
  • Powered via DC 12V(±25%), with reverse polarity protection
  • Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software

Installation Details

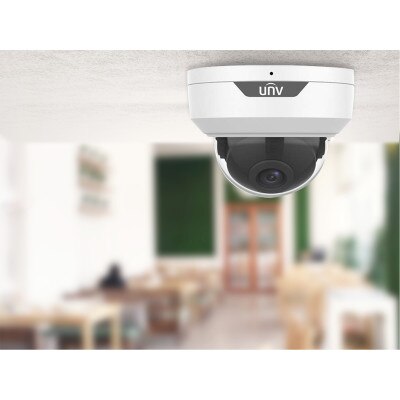

This Fixed Dome Analog Camera is weather-resistant (IP67), vandal-resistant (IK10), and can be installed outdoors or indoors. The camera is powered by a 5.5 mm interface with 4kV surge protection to handle voltage spikes up to 4 kilovolts in magnitude. Included is a mounting template and hardware for installation with alternative mounting options available such as pole mounting, pendant mounting, and more are available through mounting adapter accessories (sold separately).

UNV-Link

Take control of your Uniview cameras and NVRs with the UNV-Lin application for iOS and Android. The UNV-Link app aims to enhance the daily experience of end users by providing convenient access to live view, playback and alarms. This all-in-one app offers the power of 24/7 monitoring, intrusion alarms, and video intercom functionality.

Contents

  • Dome Camera
  • Mounting Hardware
  • Manual

Notes

  • This device supports viewing and management via a web browser on a PC.
  • Compatible network video recorders (NVR) sold separately.

Uniview – A Global Provider of Security and AIoT Solutions

Uniview aspires to provide excellent product performance at an affordable price. As a leading security camera service provider, Uniview can meet any security needs across different indoor or outdoor scenarios. Their high quality security cameras render images even in low illumination environments and utilize smart security functions based on video content analytics, while minimizing bandwidth and storage. Uniview creates IP cameras, NVRs, Encoders, Decoders, storage devices, and client software including their UNV-Link app. Uniview evolves their hardware and software products by taking into consideration AIoT (Artificial intelligence of things), Cloud networking, and Internet of Things infrastructure.

Specifications

  • Manufacturer Part #: UAC-D125-AF28M
  • UPC: 810093325894

Sensor

  • Pixel: 5MP
  • Size: 1/2.7"
  • Minimum illumination:
    • 0.005 lux (F1.6, AGC ON)
    • 0 lux (IR on)

Lens

  • Lens Type: 2.8mm
  • Lens Mount: M12
  • Angle of View: H: 109.1° V: 60.9° D: 126.7°

Illuminator

  • Illuminator: One IR illuminator
  • Illumination Distance: 30m
  • Lifetime: ≥60, 000 hours

Video

  • Resolution: 5MP@25fps: 2880(H) x 1620(V); 5MP@20fps: 2592(H) x 1944(V); 5MP@12.5fps: 2592(H) x 1944(V); 4MP: 2560(H) x 1440(V); 1080P: 1920(H) x 1080(V)
  • Frame Rate:
    • TVI:
      • NTSC: 5MP@20fps(default), 5MP@12.5fps, 4MP@30fps, 1080P@30fps
      • PAL: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 1080P@25fps
    • AHD:
      • NTSC: 5MP@20fps, 4MP@30fps, 1080P@30fps
      • PAL: 5MP@20fps, 4MP@25fps, 1080P@25fps
    • CVI:
      • NTSC: 5MP@25fps, 4MP@30fps, 1080P@30fps
      • PAL: 5MP@25fps, 4MP@25fps, 1080P@25fps
    • CVBS:
      • NTSC：1200x480
      • PAL：1200x576


  • Shutter Time:
    • NTSC: 1/30s–1/50000s
    • PAL: 1/25s-1/50000s
  • Exposure Mode: Four modes: Global (default), BLC, HLC, DWDR
  • Day/Night: Three modes: Auto (default), Day, Night
  • Noise Reduction: 2D
  • White Balance: Two modes: Auto (default), Manual
  • WDR (Wide Dynamic Range): DWDR
  • Smart IR: Support
  • Flip: Supports 180° horizontal flip, 180° vertical flip

Audio

  • Microphone:
    • TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
    • CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps

Interface

  • Power: 5.5mm power interface
  • Video Output: BNC, supports TVI / AHD / CVI / CVBS

Operating Environment

  • Temperature: -22° F to 140° F (-30° C to 60° C)
  • Humidity: ≤ 95% (RH, non-condensing)
  • Surge Protection: 4kV for power and video output interfaces
  • Ingress Protection: IP67
  • IK Rating: IK10

General

  • Power: DC 12V(±25%), with reverse polarity protection, Max 3.3W
  • Mount: Surface mount (default), optional tilted mounting bracket

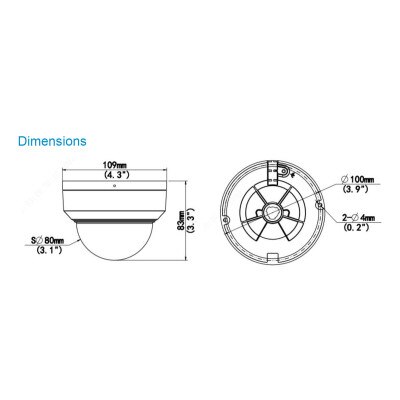

  • Dimensions (Ø x H): ♦109 x 83mm (♦4.2" x 3.3")
  • Weight: 327g (0.82lb)
  • Material: Metal
  • Certification: CB, CE, FCC, UL

Downloads

»Uniview UAC-D125-AF28 5MP LightHunter HD IR Fixed Dome Analog Camera Spec Sheet (.pdf)
»Uniview Analog Fixed Dome Camera Quick Start Guide (.pdf)
