Splitter/Wallplate Pro (Original)

SKU: AVADSWP1x

Please Select Option To View Availability

$9.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

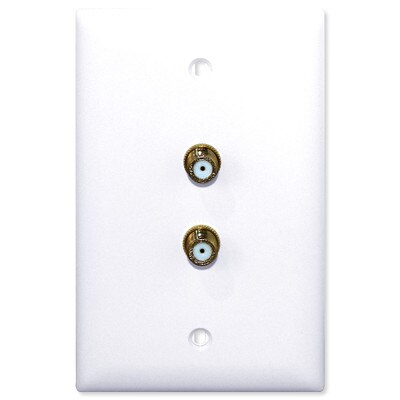

Wallplate with Built-In 2.4 GHz Splitter

Split cable and satellite signals without a connector cable or an external splitter by installing the Splitter/Wallplate Pro (Original). This single-gang wallplate has a built-in splitter, so you can connect two devices directly to your single cable signal. It supports direct connections for your TV, DVR, digital cable/satellite receiver, A/V receiver, cable modem, or any other coaxial device.

  • No connector cable required
  • Fewer connections improves signal strength
  • Bi-directional for HDTV and Internet
  • Flat F-connectors with 1-inch separation
  • Soldered steel back

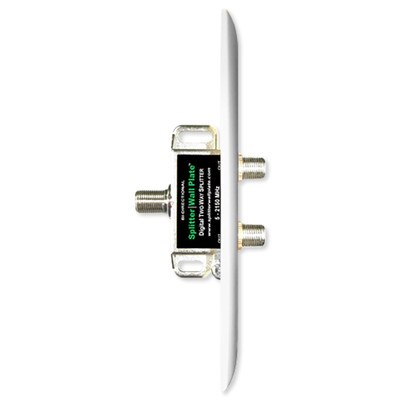

The Splitter/Wallplate Pro is a two-way broadband-ready splitter that can be used for HDTV, satellite dish, and Internet modem/router installations. The coax cable inside your wall screws onto the back of the Splitter/Wallplate. Then, with the two included screws, you simply attach the wallplate to the wall.

Designed for professional-grade installations, the wallplate features the Holland Electronics HFS-2D splitter, which offers bi-directional functionality for HDTV and Internet connections, as well as patented diode-steered power passing to one or all ports.

Because fewer connections provide reduced signal loss, the Splitter/Wallplate helps improve signal performance, providing low insertion loss from 5 to 2150 MHz. With a soldered steel back and heavy-duty construction, the Splitter/Wallplate also eliminates signal ingress impairments by shielding against EMI and RFI.

Contents

  • Splitter/Wallplate Pro Original
  • (2) Mounting Screws

In-Wall Cable Splitters By Advanced Dynamics

Advanced Dynamics Corp gives professional installers the ability to split cable signals without "old school" techniques. As the leading designer of in-wall cable splitters, Advanced Dynamics delivers high-performance in-wall splitting for any cable application, digital or broadband. When you're splitting cable, rely on Advanced Dynamics for professional, advanced results.

Specifications

  • Type: Bi-directional
  • Wallplate Material: Nylon
  • Connector Pins: "F" connectors – 15 PSI sealed; 1 inch separated
  • Bandwidth: 5 MHz to 2.4 GHz
  • Impedance: 75 Ohms
  • Certifications: DISH Network approved; SCTE compliant

Downloads

»Advanced Dynamics ADSWP1 Splitter/Wallplate Pro Original Spec Sheet (.jpg)
»Advanced Dynamics ADSWP1 Splitter/Wallplate Pro Original Brochure (.pdf)
»Advanced Dynamics ADSWP1 Splitter/Wallplate Pro Original Diagram (.pdf)
