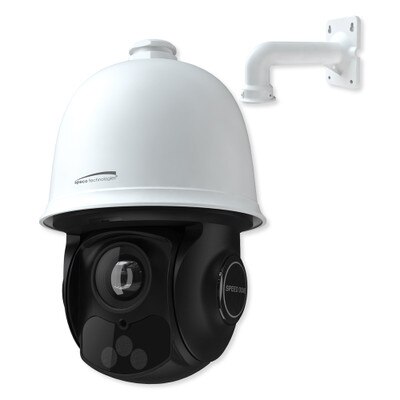

Speco 4MP PTZ Advanced Analytic IP Camera with Smart Tracking, 4.7-141mm, 30x Optical Zoom Lens

Capture Clear Surveillance With Advanced Analytics

Add high-quality security surveillance to your property by installing the Speco 4MP PTZ Advanced Analytic IP Camera with Smart Tracking. This IP camera has a 4.7-141mm 30x optical zoom lens, features a max resolution of 2560 x 1440, and supports H.265/H.264/MJPEG compression formats. With an IR cut filter for true day/night operation and WDR (wide dynamic range) technology for image compensation in high contrast areas, this IP security camera performs exceptionally well in indoor/outdoor areas. The camera also has built-in standard PoE to help minimize the use of power cables and includes a junction box for secure installation.

• 4.7-141mm 30x optical zoom lens captures HD resolution (2560x1440 @ 30fps)
• True WDR (wide dynamic range) for image compensation in high contrast areas
• Supports H.265, H.264, MJPEG compression formats
• IR range is 328 feet, depending on scene reflection
• Weather resistant IP66 rated for durable use

This IP camera provides 30x optical zoom and PTZ control, which means it supports eight viewing directions: left/right/up/down/upper left/upper right/bottom left/bottom right. When viewing an image, just use the mouse on the live view screen to draw a box of interest in the image. The camera will then rotate and zoom to that region. It also features Advanced Analytics, which will help it ignore false triggers such as falling leaves, and animal movement. Its Advanced Analytics feature provides detection capabilities for face, line crossing, region detection, intrusion and more to vastly enhance the surveillance security around your property.

Remote Management from Your Computer or Phone

This Speco camera can be controlled via Speco's web management tool and free Speco Mobile app (iOS and Android) when connected to a compatible network video recorder (NVR), sold separately. Through the web tool or the app, you can view live footage from connected cameras, adjust settings, and customize presets for optimal, personalized performance.

Installation Details

This IP Camera is weather-resistant (IP67) and can be installed outdoors or indoors. To help conceal and protect the camera's cables, a junction box is included. A mounting template and hardware are also included for accurate installation and the camera is powered by a 12VDC power supply (power supply devices sold separately).

Contents

• Network Camera Unit
• Junction Box
• Mounting Hardware
• CD (manual, software, for PC)

Notes

• This device supports viewing and management via a web browser on a PC.
• 12VDC Power Supply not included (uses PoE as standard).
• Network video recorders (NVR) sold separately.
• Do not connect two power supplying sources to the device at the same time, it may result in device damage.

Commercial & Residential Solutions From Speco

Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers, architects and homeowners rely on Speco products to satisfy both their commercial and residential needs.

• Manufacturer Part #: O4P30X2
• UPC: 030519032476
• Image Sensor: Progressive scan 1/2.5" CMOS, 4MP
• Maximum Resolution: 2560 x 1440
• Minimum Illumination: 0.01 lux @ F1.5, AGC ON; 0 lux with IR
• Field of View (H):
• Horizontal: 62.5° ~ 2.1°; Vertical: 37.3° ~ 1.3°;
• Diagonal: 70°~2.6°
• Image Settings: Flip, Mirror, Saturation, Brightness, Contrast, Sharpness
• Compensation: True WDR/BLC/HLC
• Day/Night: Smart IR with cut filter
• Electronic Shutter Speed: 1s ~ 1/10000s
• DNR: 3D DNR
• Angle Adjustment: Pan: 0° ~ 360°; Tilt -3°~90°
• Main Stream Resolution: 4MP/3MP/1080P/720P (1~ 30fps)
• Sub Stream Resolution: 1080P/1280x960/720P/D1/VGA/CIF (1~30fps)
• Third Stream: D1/CIF/480x240 (1~30fps)
• Compression: H.265, H.264, MJPEG
• Audio Compression: G.711A/G.711U
• Network: RJ45 jack
• Power: AC/DC jack (24V)
• Microphone Input: 3.5mm
• Audio Output: 3.5mm
• Card Slot: MicroSD, up to 256GB (card not included)
• Alarm: 1CH alarm input; 1CH alarm output
• Reset: Yes
• RS 485: No
• Protocols: HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
• DDNS Support: Speco DDNS (No fee)
• Security: User ID & Password protection, IP/MAC address filtering, digest authentication
• User Access: Max. 6 simultaneous users (Actual number of users may vary depending on bandwidth)
• PoE: PoE+ (IEEE 802.3at)
• Analytics: Line crossing, region entrance/exiting/intrusion (human/motor vehicle/non-motor vehicle classification), face detection
• Exception Detection: Scene change, video blur and video color cast detection
• Alarm Triggers: Motion, Sensor alarm, Analytics, SD card error
• Image Settings: Watermark, IP address filtering, video mask, password protection
• Action Modes: Preset/Cruise/Track/Auto Scan/Random Scan
• Web Browser Support: Windows (Internet Explorer 8 and up)
• PC Application: SecureGuard® VMS, SecureGuard® CMS
• Mobile: SecureGuard® Client (iPhone® and Android™)
• Other Viewing Platforms: Apple TV and Amazon Fire TV
• Power: PoE+ (IEEE 802.3at), 24V AC/DC (power supply included)
• Power Consumption: 30W (max)
• Operating Temperature: -22°F – 122°F
• Operating Humidity: 10% – 95% RH
• Dimensions: 8.22(Dia.) x 12.91(H) inches (209 x 328mm)
• Certifications: IP66, FCC
• Warranty: 1 Year

»Speco O4P30X2 4MP 30X PTZ Advanced Analytic IP Camera with Smart Tracking and Included Wall Mount Spec Sheet (.pdf)
»Speco O4P30X2 4MP PTZ Advanced Analytic IP Camera with Smart Tracking Quick Start Guide (.pdf)
»Speco O4P30X2 4MP PTZ Network Camera User Manual (.pdf)
