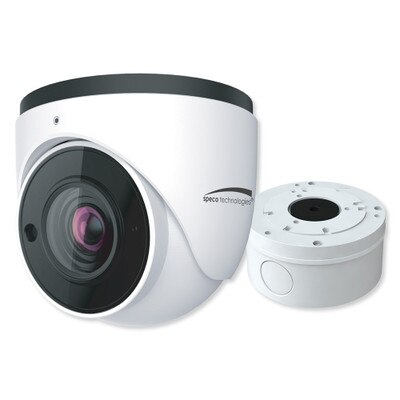

Speco 2MP H.265 IP Turret Camera with Analytics and Junction Box


Order now and we'll ship same business day (if ordered before 3 pm PST).


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


Install HD Surveillance with Smart Analytic Review Software

Add an HD security camera with advanced detection technology to your surveillance system with the Speco 2MP H.265 IP Turret Camera with Analytics and Junction Box. This HD security camera is designed to survey indoor or outdoor environments and offer advanced review functions to help watch over your property. Its IP67 weather resistant housing protects it from extreme temperatures and its integrated IR cut filter and digital Wide Dynamic Range (WDR) allow it to see and deliver clear HD images in low light conditions. This model also features a motorized varifocal lens that auto-focuses as you zoom in/out, providing an adjustable 34.9 to 88° degree viewing angle and 360° pan and rotation options. Power over Ethernet (PoE) connections make it easy to include into virtually any security or surveillance system and a junction box protects both the camera and its wiring.

  • Motorized varifocal 2.8-12mm lens
  • Supports up to 1080p (2MP) at 30fps with H.265/H.264/MJPEG compression
  • Built-in IR cut filter provides night vision up to 164 feet
  • Smart Analytics improve footage review with line crossing, region intrusion and video blurring detection features (requires NR/HR series recorder)
  • SD card slot adds up to 128 gb of extra memory
  • Weather resistant housing enables operation in extreme weather conditions
  • Powered by PoE or 12VDC power supply
  • Remote monitoring via web browser, free mobile app, and VMS

Easy Access To Footage Via Mobile Or PC App

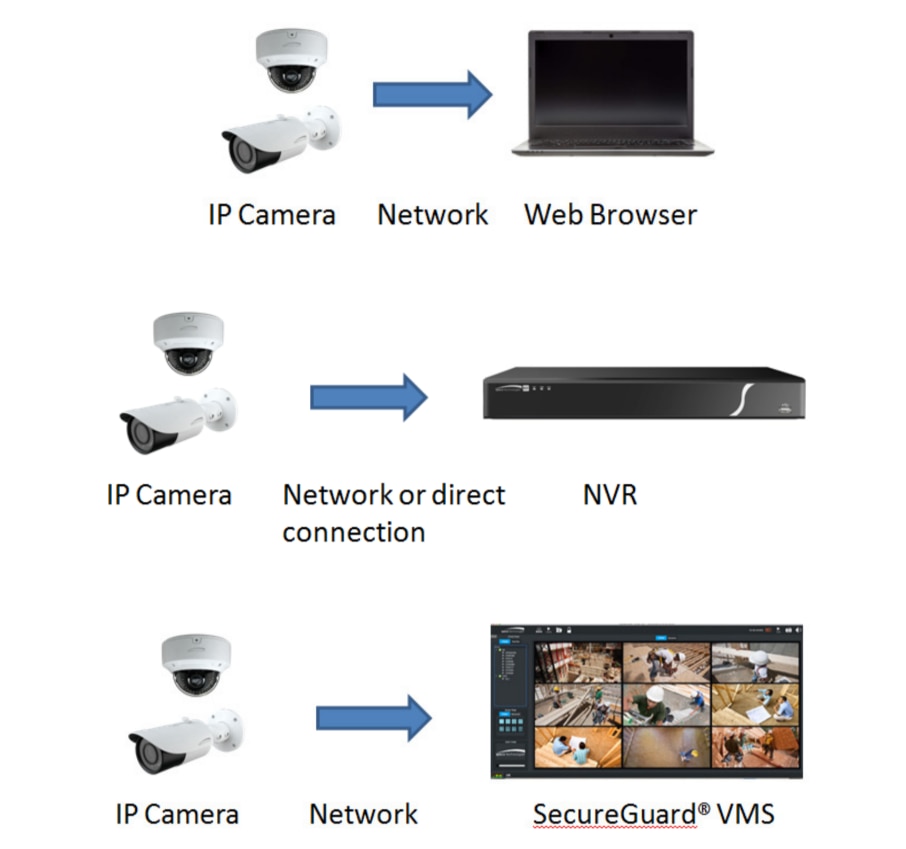

View live and recorded footage anywhere and anytime you wish through the free SecureGuard PC application or mobile app for iOS and Android devices. Connecting the camera to a Speco DVR or NVR enables you to view live video footage as well as playback, pause, rewind, and fast forward recorded footage using your smartphone, tablet, or PC. This allows you to monitor your home from any location with an Internet connection.

The camera also supports Smart Analytics software. Smart Analytics software simplifies reviewing saved footage for specialized surveillance tasks (requires NR/HR series recorder). By connecting a Speco Analytic camera to the NVR, you can review footage through the Speco management portal using Smart Playback functions, such as drawing a line or box across a specific area of a recording in order to rapidly search for activity within the selected area.

Installation Details

The Speco 2MP Dome IP Camera can be installed outdoors or indoors and comes with mounting hardware and a junction box for easy installation. The camera is primarily powered by a Power over Ethernet connection. It can also be powered with a 12VDC power supply, sold separately.


  • IP Camera
  • Junction Box
  • (3) Tapping Screws
  • (3) Plastic Plugs
  • Rubber Plug
  • Screwdriver
  • Drill Template
  • Software CD
  • Quick Start Guide

IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.

Speco Technologies

For over 45 years, SPECO Technologies has been dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers and architects rely on Speco products to satisfy both their commercial and residential needs.


  • Manufacturer Part #: O2VT1V
  • Warranty: 5 Year


  • Image Sensor: Progressive scan 1/2.9" CMOS, 2MP
  • Maximum Resolution: 1920 x 1080 (2MP)
  • Field of View (H): 34.8 to 88° (H)
  • Minimum Illumination: F1.2, Color: 0.05 lux; BW: 0 lux
  • Video Settings: Region of Interest, Privacy masking, Brightness, Contrast, Hue, Saturation, Denoise, Antiflicker, Day/Night mode, Infrared settings, Exposure, Gain, Corridor Pattern, Image flip/mirror
  • Day/Night: IR cut filter
  • Compensation: DWDR
  • IR LEDs: 30
  • IR Range: 164' (depending on scene reflection)
  • Electronic Shutter Speed: 1/25 - 1/100000 sec.
  • DNR: 3D
  • White Balance: Auto, Manual
  • Angle Adjustment: Pan (0° ~ 360°), Tilt (0° ~ 80°), Rotation (0° ~ 360°)


  • Main Resolution: 1920x1080, 1280x720 @ 30fps
  • Sub Stream Resolution: D1, CIF, 480x240 @ 30fps
  • Video Compression: H.265, H.264, MJPEG
  • Bitrate Control: VBR, CBR (64Kbps ~ 6Mbps)
  • Multiple Streaming: 2 simultaneous streams


  • Protocols: UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, UPnP, HTTP, HTTPS, QoS
  • DDNS support: Speco DDNS (free of charge)
  • Security: User ID & Password protection, IP/Mac address filtering, digest authentication
  • User Access: Max. 3 simultaneous users, Actual number of users may vary depending on bandwidth


  • Audio Compression: G.711A / G.711U


  • Ethernet: 10/100 Mbps
  • Power: DC jack
  • Microphone Input: Built-in mic
  • Card Slot: MicroSD, up to 128GB (not included)
  • Alarm In/Out: No
  • Reset: Yes


  • PoE: Standard (IEEE 802.3af)
  • Analytics: Line crossing, region intrusion and video blurring detection (requires NR/HR series recorder)
  • Alarm Triggers: Motion, Analytics, SD card error
  • Image Settings: Watermark, IP address filtering, video mask, password protection


  • Web Browser Support: Windows (Internet Explorer 8 and up)
  • PC Application: SecureGuard® VMS, SecureGuard® CMS
  • Mobile:
    • SecureGuard® Mobile (iPhone and Android)
    • Speco Blue (iPhone and Android)
  • Other Platforms: Apple TV, Amazon Fire TV

Operating & Unit

  • Power: PoE, 12VDC (power supply not included)
  • Power Consumption:< 9.5W
  • Operating Temperature: -40°F – 140°F (-40°C to 60°C)
  • Operation Humidity: Less than 95 % (non-condensing)
  • Dimensions: 4.38" (Dia) x 3.92" (H)
  • Weight: 1.47 lbs
  • Certifications: FCC, RoHS
