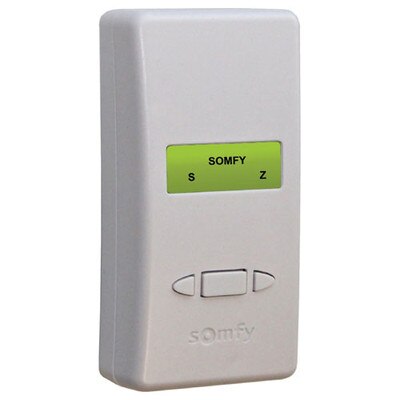

Somfy Z-Wave to RTS Interface

Integrate Somfy & Z-Wave Technologies

Control your Somfy devices with Z-Wave controllers! Simply connect the Somfy Z-Wave to RTS Interface to your Somfy TaHomA home automation system. This Somfy ZRTSI II Module will receive commands from your Z-Wave controller, and then convert them into Radio Technology Somfy (RTS) commands for up to 16 connected RTS motors or groups of motors.

• Enables Z-Wave control for RTS motors
• Supports up to 16 groups of RTS devices
• Plugs into a standard power outlet

Integrating RTS devices into the Somfy Z-Wave to RTS Interface is easy through intuitive digital menus, displayed clearly on an LCD screen. This Somfy ZRTSI II Module has one base node and 16 virtual nodes. The virtual nodes correspond to 16 RTS channels. Once programmed into the Interface, these virtual nodes duplicate all settings for each channel within the Z-Wave network. This Somfy ZRTSI II Module requires 110VAC power and can be plugged into any standard outlet.

NOTE: One Somfy Z-Wave to RTS Interface is recommended for each 25 to 35-foot area where RTS motors are present.

RTS: Exclusive Somfy Technology Dedicated To Your Comfort

Radio Technology Somfy (RTS) offers a high performance, convenient and reliable solution for awning and screen automation, eliminating the need for wiring between the motor and controls. With the radio receiver integrated within the motor, RTS is the ideal choice because installation is quick and easy. Whether you want to control your awning or screen at the touch of a button or use automatic controls, Somfy has the solution. It's so easy, It's Somfy!

• Power Source: 110VAC
• Dimensions: 5.6(H) x 2.76(W) x 1.5(D) inches (not including outlet prongs)

»Somfy 1811265 Somfy Z-Wave to RTS Interface Brochure (.pdf)
»Somfy 1811265 Somfy Z-Wave to RTS Interface Installation Manual (.pdf)
