Somfy TaHoma Ethernet Adaptor

SKU: SO1870470

Order now and we'll ship same business day (if ordered before 3 pm PST).

$31.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Controls Window Coverings Up To 65 Feet Away

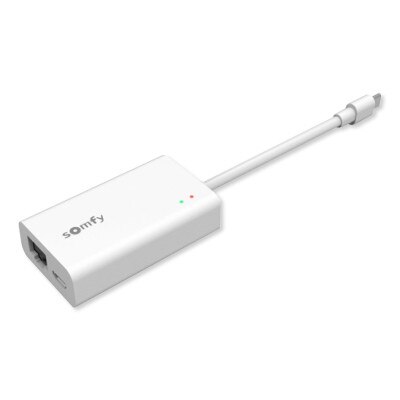

The Somfy TaHoma Ethernet Adaptor provides an Ethernet LAN port to the Somfy TaHoma RTS/Zigbee Smartphone and Tablet Interface, which provides a fast and stable Internet connection. This adapter has a transmission speed of 10/100 Mbps and a yellow light that indicates data transfer and a green light to indicate an Ethernet connection.

  • 10/100Mbps transmission speed
  • Data transfer indicated by yellow light and Ethernet connection by green light
  • Micro USB Female: 5V, 2A (max) input power and Micro USB Male: 5V, 2A (max) output power
  • RJ45 + Micro B Female (Downlink Port) and RJ45 + Micro B Male (Uplink Port)
  • 5 Year Warranty

Contents

  • TaHoma Ethernet Adaptor
  • Safety Instructions

NOTE: Requires the Somfy TaHoma RTS/Zigbee Smartphone and Tablet Interface (part# 1811731, sold separately).

IMPORTANT NOTE: Somfy products are not available to ship outside the U.S. Please contact Somfy directly for international orders.

RTS: Exclusive Somfy Technology Dedicated To Your Comfort

Radio Technology Somfy (RTS) offers a high performance, convenient and reliable solution for awning and screen automation, eliminating the need for wiring between the motor and controls. With the radio receiver integrated within the motor, RTS is the ideal choice because installation is quick and easy. Whether you want to control your awning or screen at the touch of a button or use automatic controls, Somfy has the solution. It's so easy, It's Somfy!

Specifications

  • Manufacturer Part #: 1870470
  • Input Power: Micro USB Female: 5V, 2A (max)
  • Output Power: Micro USB Male: 5V, 2A (max)
  • Number of Ports:
    • (Downlink Port) RJ45 + Micro B Female
    • (Uplink Port) RJ45 + Micro B Male
  • Transmission Speed: 10/100Mbps
  • Operating Temperature: 32°F to 140°F (0°C to 60°C)
  • Dimensions: 7.36(L) x 1.39(W) x 0.67(H) inches (186.94mm x 35.31mm x 17.02mm)
  • Shipping Weight: 0.056 lbs (25.5g)
  • Certifications: FCC, IC
  • Warranty: 5 years (from date of manufacturer)

Downloads

»The Somfy TaHoma Checklist (.pdf)
»Somfy 1811731 TaHoma RTS/Zigbee Smartphone and Tablet Interface Spec Sheet (.pdf)
»Somfy 1811731 TaHoma Quick Start Guide (.pdf)
»Somfy 1811731 TaHoma RTS Smartphone and Tablet Interface Programming Guide (.pdf)
