  • Seco-Larm Enforcer Access Control Keypad, Outdoor, Sealed/Weatherproof

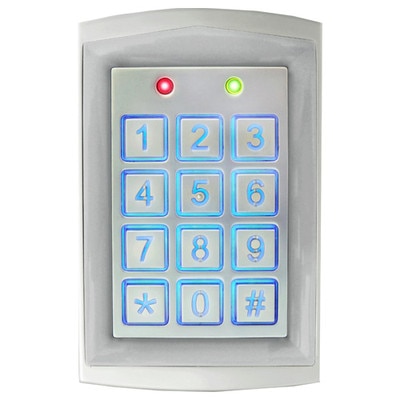

Seco-Larm Enforcer Access Control Keypad, Outdoor, Sealed/Weatherproof

SKU: SESK1323SDQ

Usually ships in 3-5 days.

$96.81

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Ip65 Weatherproof Rating, Rugged Aluminum Construction

The Seco-Larm Weatherproof Outdoor Digital Access Keypad is standalone. All keypad features are programmed directly from the keypad and it is able to mount to a single-gang back box. It is designed with backlit keys for easy night time use.

  • 12~15 VDC operation.
  • 1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
  • 2 Form C relays, each rated 1 Amp @ 30VDC.
  • Each relay has programmable output time from 1~99 seconds or toggle.
  • Output #2 can be programmed for use with a doorbell.
  • 2 Egress inputs and 1 door sensor input.
  • Two multi-colored status LEDs.
  • All features are programmed directly from the keypad – no need for an external programmer.
  • EEPROM memory protects programmed information in case of power loss.
  • Optical tamper for added security.
  • Circuitry is potted with epoxy for outdoor use.
  • IP65 weatherproof rating, rugged aluminum construction.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Type: Sealed Housing Weatherproof Outdoor Digital Access Keypad
  • Number of user codes: Up to 1,010
  • Operating voltage: 12~15 VDC
  • Current drain:
    • Stand-by: 40mA@12VDC
    • Active: 70mA@12VDC
    • Relay outputs (2): 1A@30VDC, Form C, NO/COM/NC
  • Egress inputs: 2, N.O. Ground
  • Door sensor input: N.C. Ground
  • Tamper sensor: Optical
  • Operating temperature: -4° ~122° F (-20° ~50° C)
  • Keypad LED life: 60,000 hours (over 6.8 years)
  • Dimensions: 6"x1-3/4"x15/16" (152x44x24 mm)

Downloads

»Seco-Larm Enforcer Digital Access Keypad Data Sheet (.pdf)
»Seco-Larm Enforcer Digital Access Keypad Owner’s Manual (.pdf)
»Seco-Larm Enforcer Digital Access Keypad Quick User Programming Guide (.pdf)
