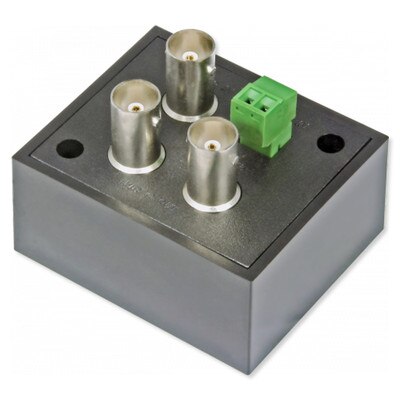

Seco-Larm Enforcer Video Distributor, 4 in 1 HD
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Splits 1 Video Signal 2 Ways
The Seco-Larm Enforcer Video Distributor, 4 in 1 HD, provides the perfect way to distribute a single video signal (HD-TVI/CVI/AHD/Analog) to two video display devices. It uses noise-rejection circuitry to actively duplicate video signals to two separate locations. The distributor also cleans and buffers the incoming signals before duplication to ensure clear, crisp video is displayed.
- Distributes one video input to two outputs
- Compatible with HD-TVI/CVI/AHD/Analog
- Connect to a video camera, multiplexer, DVR, etc.
- Multiple units can be stacked for additional outputs
- LED power indicator
Contents
- 4-in-1 HD Video Distributor
- (2) Mounting Screws
- (2) Plastic Wall Anchors
- Power Adapter
- DC Jack Connector
- Manual

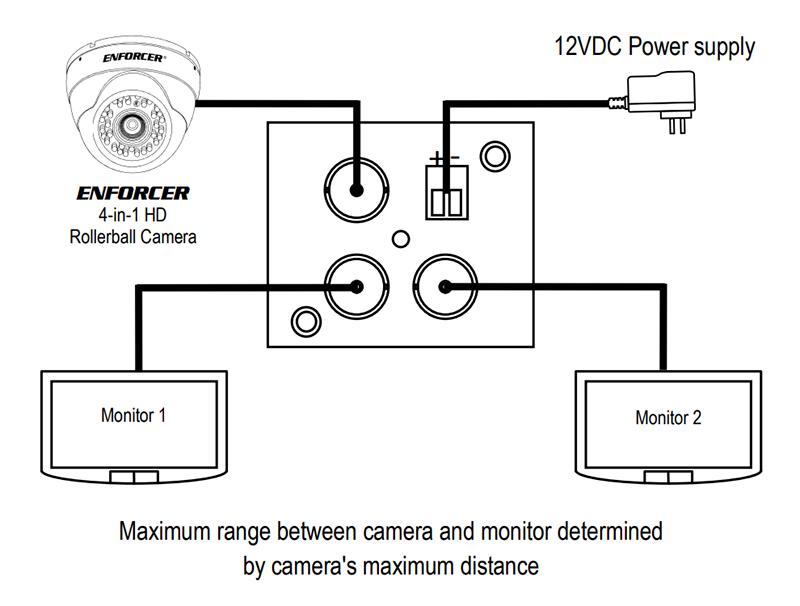

NOTE: Maximum distance between the camera and DVR/monitor is determined by the camera's recommended maximum distance.
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #: VA-1102B-WYQ
- Number of Inputs: 1 x BNC
- Number of Outputs: 2 x BNC
- Video Output Format: HD-TVI/CVI/AHD/Analog
- Video Input Level: 0.8 to 1.2Vp-p, 75 ohms
- Image Gain: 6dB
- Video Bandwidth: 350MHz, -3dB
- Power Supply: 60mA (included)
- Operating Humidity: 0 to 95% non-condensing
- Operating Temperature: 32° to 131° F (0° to 55° C)
- Dimensions: 2-5/16 x 1-15/16 x 1-11/16 inches (58 x 49 x 42 mm)
- Weight: 2.5 oz. (70g)
- Credentials: FCC, CE, RoHS
- Warranty: 1 Year
