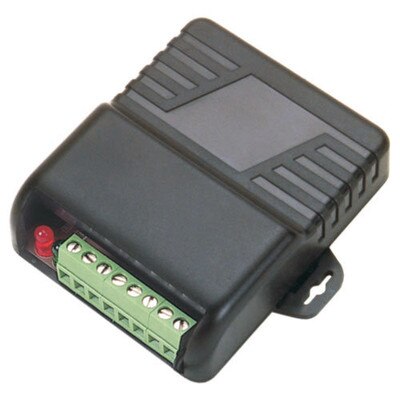

Seco-Larm Enforcer RF Receiver, 2-Channel
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Compatible With Seco-Larm Fixed Code & CodeBump Transmitters
The Seco-Larm Two-Channel Receiver is compatible with all SECO-LARM transmitters (fixed code and CODEBUMP).
- 5 Programmable relay output modes:
- 4-Second Momentary Output
- 1-Second Momentary Output
- Latch Output
- Validity Output
- Toggle Output
- Flexible operating voltage: 11~24 VAC/VDC
- Up to 500ft (152m) range
- Independently programmable channels with 5 output modes
- Controls garage doors, gates, house lights, alarm panels, or other devices via remote
- Compatible with all SECO-LARM transmitters (fixed code and CODEBUMP)
- 2 LEDs indicate RF reception, learn mode entered, transmitter learned, memory cleared, and relay output mode
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Operating frequency: 315MHz
- Memory capacity: 15 transmitter button codes per channel, 30 per receiver
- Operating voltage: 11~24 VAC/VDC
- Operating current:
- Standby: 8mA@12VDC
- Active: 30mA@12VDC per channel
- Relay output modes: 4-sec. momentary, toggle, latch, validity, 1-sec. momentary
- Relay contact rating: Form C 10A@24VDC or 120VAC per channel
- Connectors: Screw terminals, +. -, NO/NC/COM per channel
- Dimensions: 3-1/8 inch x2-9/16 inch x 1 inch (80x65x25 mm)
