Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated with Timer (Open Box)

SKU: SESD7103GCPTQ_OB

Huge Savings! (All Sales Final.)

1 available at this price.

Pay in 4 interest-free payments. Learn More.

$28.00 $43.06

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

More Products by Seco-Larm

Details

Slim Design For Narrow Installation

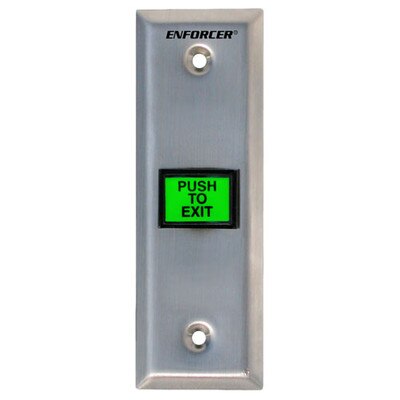

The Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated with Built-In Timer Plate is illuminated with a "PUSH TO EXIT" caption that can be easily changed to "PRESIONE PARA SALIR" in the field. It includes a built-in timer that allows you to extend activation time up to 180 seconds. The slimline plate features a narrow design for easy installation on tight wall panels.

  • Built-in timer, 1 to 180 seconds with buzzer output for audio status
  • Both English and Spanish messages included
  • Long-life green LED momentary button
  • Rubber-sealed switch to prevent liquid penetration

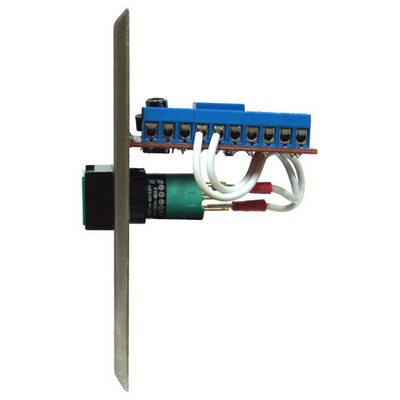

  • Plastic terminal protector for dividing individual terminals

Contents

  • "PUSH TO EXIT" and "PRESIONE PARA SALIR" message plates
  • (6) Wire leads with easy-to-attach spade lugs for fast installation
  • Stainless-steel slimline plate
  • 680 ohm resistor

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SD-7103GC-PTQ
  • UPC: 676544013198
  • Wire Leads: 12-inch, AWG 18, color-coded
  • Mechanical Lifetime: 2,000,000 operations
  • Unit Dimensions: 4-1/2 x 2-3/4 x 1-3/4 inches (114 x 70 x 45mm)
  • Button: N.O./N.C. contacts rated, DPST, 3 Amps at 24VDC
  • Button Dimensions: 15/16 x 11/16 inches
  • LED: 12/24 VAC/VDC, approx. 35,000-hour life
  • Resistor: 680 ohms, 0.5W
  • Plug-In Terminals: 6
  • Approvals: CE and UL
  • Warranty: 1 Year

Downloads

»Seco-Larm Enforcer SD-7103GC-PTQ Slimline Push-to-Exit Plate, Illuminated with Timer Installation Manual (.pdf)
