  • Seco-Larm Enforcer Relay Module, 3~24VDC Low Trigger Voltage, One 2A Form C DPDT Relay

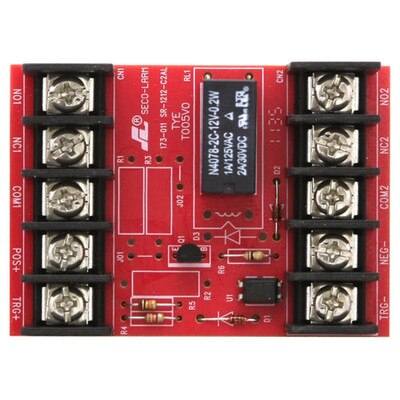

Seco-Larm Enforcer Relay Module, 3~24VDC Low Trigger Voltage, One 2A Form C DPDT Relay

SKU: SESR1212C2ALQ

Order now and we'll ship same business day (if ordered before 3 pm PST).

$8.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

General Purpose One Form C DPDT Relay

As a general purpose relay, the Seco-Larm Enforcer Relay Module (3~24VDC Low Trigger Voltage, One 2A Form C DPDT Relay) can be used for various Double Pull Double Throw (DPDT) applications. Pre-wiring and screw terminals on the board facilitate installation.

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it’s physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Supply Voltage: 12/24VDC
  • Trigger Voltage: 3~24VDC
  • Voltage Selection: Auto-sensing
  • Relay Type: DPDT
  • Relay Ratings: 2A
  • # of Relays: 1
  • Active Current: 15mA at 12VDC; 18mA at 24VDC
  • Size: 2-3/4 x 1-15/16 x 3/4 inches (70 x 50 x 20 mm)
  • Weight: 2 ounces (55g)
  • Approvals: FCC, RoHS, ISO 9001
  • Warranty: 1 Year

Downloads
