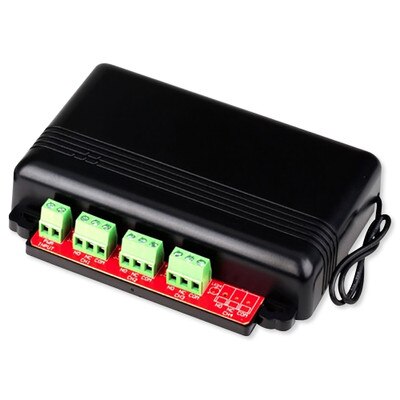

Seco-Larm Enforcer RF Receiver, 3-Channel

Secure RF Wireless Receiver

The Seco-Larm Enforcer RF Receiver, 3-Channel enables remote control for various home automation applications up to 500 feet from a transmitter. Open/close garage doors, notify alarm panels, turn lights On/Off and more via RF remote control. The Fixed Code Receiver features 3 independently programmable RF outputs and a Mode switch for easy programming. It also features 3 LEDs, one per channel to indicate RF reception, learn mode, transmitter cleared and output type. This Receiver is compatible with fixed code and code-hopping transmitters.

• Compatible with all SECO-LARM transmitters (fixed code and CODEBUMP)
• 3 Independent programmable channels with 4 output modes & mode switch
• 4 Output Modes: Timed Momentary, On/Off Toggle, Latch, Continuous/Validity
• 3 LEDs indicate RF reception, memory cleared, and relay output mode
• Receiver learns up to 15 remotes per channel
• Stores codes safely in EEPROM for up to one year in case of power loss
• Receives signals from up to 500 feet (150m)

Note: Optionally use in conjunction with the Seco-Larm Enforcer Extended Range RF Antenna (SESK91ERSD) for extended range by 1,000 feet.

Building A Secure Future Since 1971

SECO-LARM started as a developer of lighting devices in 1971. However, the company foresaw the need for reliable yet affordable security products, and over next few years established SECO-LARM as a leading multinational OEM and private label manufacturer of equipment for some of the best-known companies in the security business.

• Manufacturer Part #: SK-910R3Q
• Type: WIRELESS 3-Channel RF Receiver
• Operating Voltage: 11~24V AC/DC
• Operating Frequency: 315MHz
• Range: Up to 500 feet (150m) with SECO-LARM transmitters
• Dimensions: 5-5/16" x 3-15/16" x 1-1/8" (135 x 100 x 27.5 mm)
• Relay Rating: Three Form "C" dry relay contacts (NO/NC/COM); rated 10A@24VDC
• Current Draw: ~12mA@12VDC (standby), 50mA@12VDC per channel activated
• # of Stored Transmitter Codes: 15 per channel, 45 per receiver
• Extended Range Antenna Compatible: Yes (SK-91ERSD)
• Compatible Transmitters:
• Fixed-Code Models: (SK-919 Series)
• CODEBUMP Models: (SK-917T Series)
• Relay Output Modes: Programmable independent outputs: timed momentary (1, 2, 3, 4, 5, 10, 30, 60 sec.), toggle (ON/OFF), latched, continuous
• Connectors: Screw terminals, +, -, with NO/NC/COM per channel
• RF Codes: 18 quintillion, for ENFORCER CODEBUMP remotes. 68 billion, for ENFORCER fixed-code remotes
• Approvals: RoHS, FCC
• Warranty: 1 Year

»Seco-Larm SK-910Rx Enforcer RF Receiver Installation Manual (.pdf)
