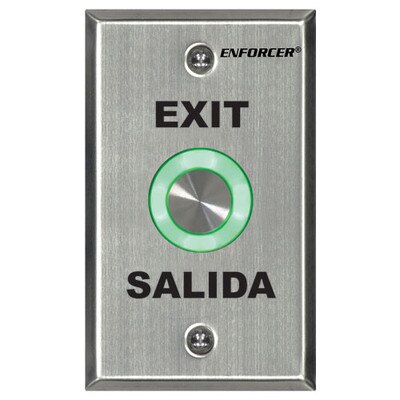

Seco-Larm Enforcer Piezoelectric Request-to-Exit Plate

SKU: SESD6276SS1Q

Usually ships in 3-5 days.

$42.99

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Simple Wall-Mount Button For Door Opening System

The Seco-Larm Enforcer Piezoelectric Request-to-Exit Plate is used with an electric door lock or opener and allows the user to request an exit with the push of a button. When the button is pressed, the door unlocks/opens and the LED ring around the button changes from green to red or from red to green (selectable). The plate’s relay is rated 2A at 30VDC with two individually programmable outputs (NO/NC).

  • Designed for indoor or outdoor use (IP65)
  • "EXIT" and "SALIDA" printed on plate
  • No moving parts for heavy duty applications
  • Timed or toggle output

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it’s physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Type: RTE Plates with piezoelectric pushbuttons
  • Operating Voltage: 12~24 VDC
  • Current Drain: 100mA at 12VDC
  • Contact Rating: 2A at 30VDC or 0.5A at 125VAC
  • Ring LED Default:
    • Standby: Red
    • Active: Green
  • Output Time: 1~30 seconds, Toggle
  • IP Rating: IP65
  • Operating Temperature: 32° to 158° F (0° to 70° C)
  • Plate Material: Stainless steel
  • Weight: 3.5 ounces (99g)
