Seco-Larm Enforcer Infrared Proximity Sensor, Square, Green/Red LED Sensors

IR Sensor Provides Hands-Free Operation And Access Control

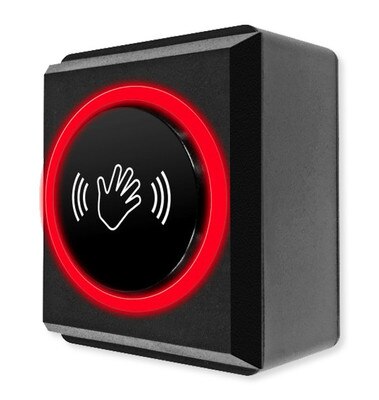

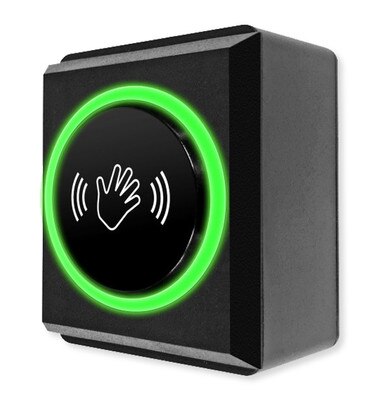

Provide touchless, hands-free access control to doors, lights, and other devices on your property by installing the Seco-Larm Enforcer Infrared Proximity Sensor (Square, Green/Red Sensors). This IR sensor detects nearby handwave motions in order to activate nearby devices, making it an excellent option to reduce the risk of spreading germs and viruses through cross-contamination. When activated, the sensor's built-in LED changes color (from red to green or green to red) to indicate a successful detection. The sensor's no touch design is an excellent option for installing in a variety of locations, including hospitals, labs, clinics, clean rooms, warehouses, factories, schools, and office buildings.

• Provides no-touch operation to help reduce the risk of spreading germs and viruses via cross-contamination
• Adjustable hand-wave/sensing range from 2-3/8" to 8" (6~20 cm)
• Adjustable trigger duration 0.5~30 seconds or toggle
• LED colors can be selected from red to green or green to red
• Relay type: Form C dry contact, NO/NC/COM, 3A@24VDC
• 1-Year Warranty

Contents

• Infrared Proximity Sensor
• Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: CS-PD535-TAQ
• UPC: 676544021346
• Operating voltage: 12~24 VAC/VDC
• Current Draw (max.): 120mA@12VDC
• Relay Type: Form C dry contact, 3A@24VDC
• Connectors: Quick-connect, screwless terminal block
• Response Time: 10ms
• Output Time: Adjustable 0.5~30 sec., toggle, or as long as the sensor is triggered
• Sensing Range: Adjustable 2-3/8" – 8" (6-20 cm)
• LED Indcators:
• Standby: Red
• Triggered: Green
• Operating Life:
• Relay: 500,000 cycles
• Sensor: 100,000 hours
• Case Material: ABS Plastic
• Operating Temperature: -4° to 131° F (-20° to 55° C)
• Dimensions: 1-3/4" x 2-1/8" x 1-7/16" (44x55x37 mm)
• Credentials: RoHS, CE
• Warranty: 1 Year
