Seco-Larm Enforcer HDMI Extender Over Two Wires

Share HDMI Signals Over 900 Feet!

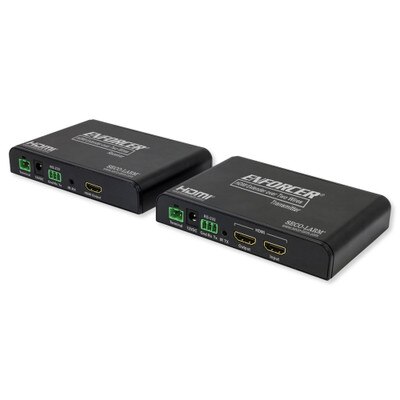

Seco-Larm's ENFORCER HDMI Extender Over Two Wires increases the range of HDMI connections over 900 feet for larger home theater or office setups. This transmitter and receiver duo sends video and audio from source to display over any two copper wires including Cat5e/6 cables, telephone wires, and coaxial cables. HDMI formats as large as 1080p can be transmitted up to 984 feet (300m) between the two units with zero signal loss.

• Extends HDMI signals via two alternate cable types
• Supports resolutions from 480i to 1080p with zero signal loss up to 984 feet
• HDMI Loop output for local HDMI display
• Supports up to four (4) receivers for multicast applications
• IR Pass-through for remote control extension and operation
• Bi-directional RS-232 pass-through

The transmitter of the HDMI Extender can send signals to up to four receivers for a wide range of multicast applications. Integrated IR and RS-232 passthrough enable local or remote control of connected sources and displays. HDMI signals can be sent locally from an HDMI source to display with HDMI loop support. This setup design is best used when adding RS-232 or IR control to an existing HDMI connection.

Contents

• HDMI Transmitter
• HDMI Receiver
• (2) 12VDC Power Adapters
• (2) Terminal 2-Pin Connectors
• (2) RS-232 3-Pin Connectors
• IR Transmitter
• IR Receiver
• Double-Sided Tape

NOTE: Range varies based on the cable type used and the signal format. This product is not to be used to bypass any copy protection or other content protection system. All usage of this product shall conform to the license that comes with the content.

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: MVE-AH1T1-01YQ
• Input video signal: 3.3V
• Input DDC signal: 5Vp-p (TTL)
• Maximum single link range: 1080p
• Deep color: 24bit
• Video formats supported: High-speed HDMI, HDCP 1.3
• Audio formats supported: PCM
• Output video: HDMI
• Resolutions supported: 1080p/1080i/720p/576p/576i/480p/480i
• Range: Up to 984 feet (300m)
• Video: Input/output connector
• HDMI Type: A 19-pin female
• Max. input/output cable length: 24AWG (15m), 26AWG (10m), 28AWG (5m)
• IR Pass-through frequency: 20~60 kHz
• RS-232 Pass-through baud-rate: Up to 115,200
• Operating voltage: 12VDC
• Power supply: 2A@12VDC (2.1mm plug) x2
• ESD Protection: (human body model), ±8kV (Air-gap discharge), ±4kV (Contact discharge)
• Current draw:
• Transmitter: 625mA@12VDC
• Receiver: 580mA@12VDC
• Operating temperature: 32° to 140° F (0° to 60° C)
• Dimensions: 5.125 x 0.937 x 3.437 inches (130 x 23 x 87 mm)
• Weight: 7.4 ounces (Each)
• Warranty: 1 Year
