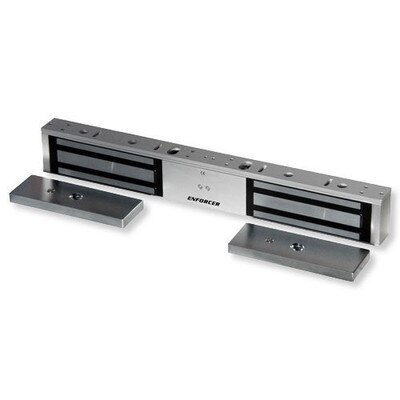

Seco-Larm Enforcer Double Door Maglock, 600 Lbs.

600 Pounds Of Resistance Per Door

The Seco-Larm Double Door Electromagnetic lock features 600 Lbs. per door resistance for premium security. The anodized aluminum housing and the detachable faceplate make this durable unit the choice for double door protection.

• Anodized aluminum housing (US 28).
• 12 or 24VDC (selectable).
• No residual magnetism.
• MOV surge protection.
• Adjustable mounting bracket.
• Complete mounting hardware for typical installations.
• "L" bracket and "Z" brackets available for easy mounting.
• Detachable faceplate.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: E-941DA-600Q
• Holding force: 600-lb (272kg)
• Operating voltage: 12 or 24 VDC±10%
• Current draw: 500mA@12VDC, 250mA@24VDC
• Temperature: 14° ~131° F (-10° ~55° C)
• Magnet size: 19-11/16" x 1-5/8" x 1" (500x42x25 mm)
• Armature size: 7-1/4" x 1/2" x 1-1/2" (185x12x38 mm)
• Certification: UL, ULC, CE
• RoHS compliance: Yes
• Warranty: 1 Year

»Seco-Larm Enforcer Double Door Maglock Door Installation Manual (.pdf)
»Seco-Larm Enforcer Double Door Maglock Door Template (.pdf)
