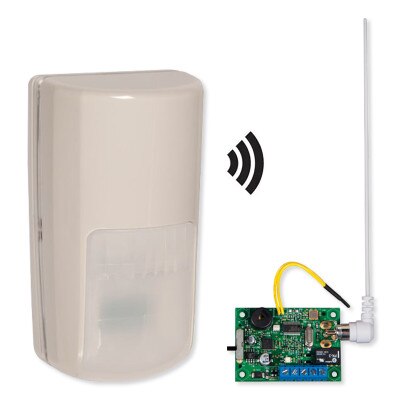

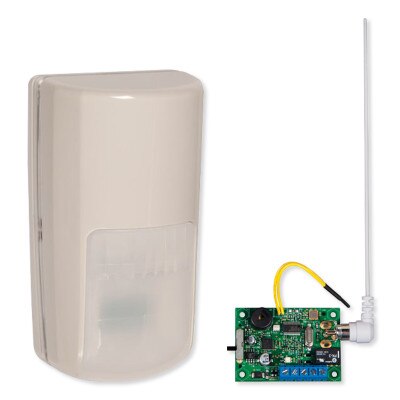

STI Wireless Outdoor Motion Detector with Single Channel Slave Receiver

SKU: STI34759

This is a popular product! Shipping is currently delayed by a few weeks, but you can still place your order. Please feel free to contact us for more information.

$122.22

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Pet Immune Wireless Motion Detector

Set up an outdoor motion detection zone with the STI Wireless Outdoor Motion Detector with Single Channel Slave Receiver. The STI Wireless Outdoor Motion Detector senses motion up to 33 feet away, while ignoring animals up to 100 pounds. The STI Single Slave Receiver hard-wires into your third-party home automation or security system control panel to enable wireless communication with the sensor.

  • Senses motion up to 33 feet away within 90 degrees
  • Ignores pets up to 100 pounds (45 kg)
  • Supervised for low battery and signal reception
  • Slave Receiver connects sensor to third-party control panel
  • 1000 feet line of sight transmission range between sensor and receiver

How It Works

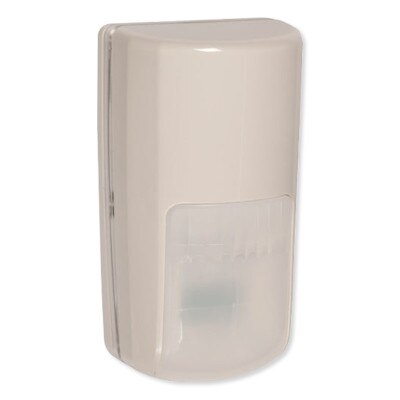

The weatherproof outdoor detector features Dual-Frequency infrared (DFIRT) opto-electronics to further minimize the chance of false activations. When a true alarm is activated, the detector signals your STI wireless receiver (sold separately) to alert you.

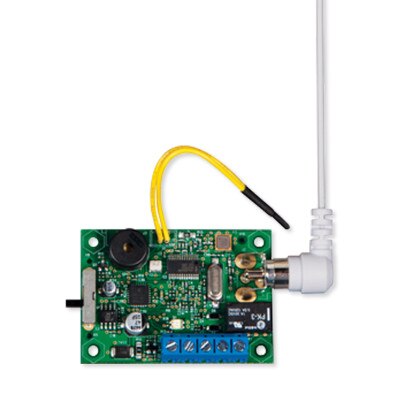

The STI Single Channel Slave Receiver receives STI encoded 433.92 MHz radio signals from the sensor. It utilizes Form C relay contacts rated at 1A at 12 VDC to wire into your control panel. It should be installed into a protected enclosure to prevent signal interference.

Installation Details

The battery-powered motion detector installs outdoors either on a flat wall or in a 45-degree corner with the included screws. If its tamper cover is opened after installation, a tamper signal will be sent to the receiver. Additionally, if the unit is removed from the wall, loses signal, or has low battery, the receiver produces a single beep once a minute.

To activate the slave receiver, move the onboard switch to Program. Connect the Motion Detector or desired transmitter to the receiver by activating the transmitter (see transmitter instructions). The receiver will beep twice to confirm programming. Afterwards, move the mode switch to the intended mode. Activate the connected transmitter again to confirm enrollment.

Contents

  • Outdoor Motion Detector (STI-34752)
  • Slave Receiver (STI-34098)
  • Lithium Battery
  • Mounting Screws

NOTE: STI-34098 receives signal from only one transmitter. Attempting to program a second transmitter will delete original transmitter.

We Protect The Things That Protect You®

Safety Technology International (STI) is a family owned and operated business that began over 35 years ago with Jack Taylor's invention of the Stopper Pull Station Protector. STI now markets more than 1,000 products throughout the world that help prevent false fire alarms, theft, and vandalism of the devices that protect us all.

Specifications

  • Manufacturer Part #: STI-34759
  • Warranty: 1 year

Outdoor Motion Detector

  • Mounting Hardware: #6 screw
  • Mounting Height: 7.5 feet (ideal height)
  • Replacement Battery: CR123A 1500mAH
  • Temperature Range: -40° to 131° F (-40° to 55° C)
  • White Light Immunity: 25000 lux
  • RF Immunity: 50 V/m 10-1000 MHz; 20 V/m 1-2 GHz
  • Housing Dimensions: 4.4(H) x 2.4(W) x 2(D) inches
  • Tamper Switch: Form A (NC). 50 mA at 30 VDC
  • Wireless Range: 33 feet (10 m) in sensor-facing direction

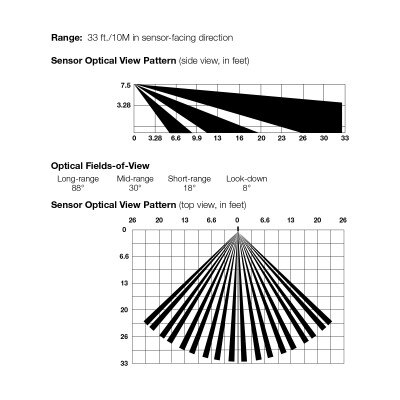

  • Optical Fields-of-View:
    • Long-range: 88 degrees
    • Mid-range: 30 degrees
    • Short-range: 18 degrees
    • Look-down: 8 degrees
  • Approvals: FCC, IC

Slave Receiver

  • Operating Voltage: 12 VDC; 16mA
  • Standby Voltage: 12 VDC; 10mA
  • Resistive Contact Ratings: 30 AC/DC, 1A
