Platinum Tools EZ-RJ45 Shielded Cat5e/6 Connector, External Ground

Easily Verify Wiring Sequence

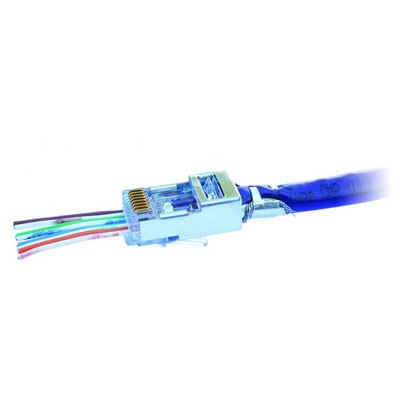

Designed for use with Cat5e/6+ shielded cable, solid or stranded, the Platinum Tools EZ-RJ45 Shielded Cat5e/6 Connector (External Ground) makes your twisted pair terminations quick and easy. Wires pass through the connector and out the front, allowing you to verify the wiring sequence without hassle. As shielded connectors, these are perfect for applications where NEXT, FEXT, and AXT present problems.

• Connectors for Cat5e/6+ shielded cable
• Works on solid or stranded wire
• 50 microinch gold-plated

Packs Available: 10 connectors, 50 connectors

Platinum Tools Makes Connections Easy!

Platinum ToolsPlatinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of our products absolutely must satisfy three critical benchmark criteria – Utility of function, Quality of function, and Economic value.

• Internal Ground:
• Maximum cable OD: 0.260 inches
• Maximum conductor OD: 0.041 inches
• External Ground:
• Maximum cable OD: 0.280+ inches
• Maximum conductor OD: 0.041 inches
• Approvals: FCC, UL, RoHS

»Platinum Tools EZ-RJ45 Shielded Cat5e/6 Connector Specifications (.pdf)
