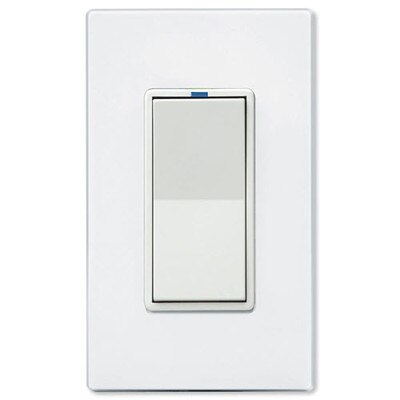

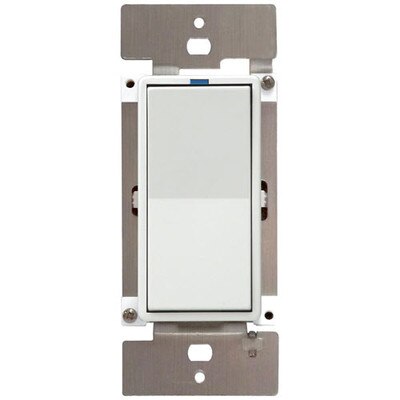

PCS PulseWorx UPB LED/CFL Dimmer Wall Switch, 600W, White (Open Box)
Dim/Brighten Control For Any Type Of Light
PulseWorx UPB LED/CFL Dimmer Wall Switches are your one stop for light dimming control. This switch was specifically designed to operate all major types of dimmable light sources, including LED lights, CFL lights, fluorescent lights, inductive loads, magnetic LV loads, incandescent lights and halogen lights. No need to search for the right dimmer switch. It's right here.
- Reduces light flickering
- Adjustable minimum dimming
- Top Rocker Max Out: Tap once for preset light-level. Twice for full brightness.
- Auto-Off Timer: Choose a max amount of time the light stays on (1 to 240 minutes).
These switches offer smoother dimming throughout the light's range, and an adjustable minimum dimming level to reduce drop-off and prevent flickering. A multi-color (Blue, Magenta, Red or Off) LED on top of the rocker guides you through the dark.
How It Works
Tapping the rocker switch turns lights on/off, while holding it down dims/brighten lights. Separate brightness levels (between 0 to 100 percent) are chosen for single-tap and double-tap events. Sixteen selectable fade rates (instant-on to one hour) give you absolute flexibility.
Compatible with Scene Lighting
Each switch may become a member of 16 individual scenes, 250 different scenes per system. Switches can store a pre-set lights-on level and fade rate for each scene, allowing you to install a sophisticated lighting system at a fraction of typical costs.
PulseWorx Lighting Control System
These switches are designed to be an integral part of a complete PulseWorx Lighting Control System. Like all PulseWorx devices, the Dimmer Wall Switches use UPB powerline communication technology to reliably communicate with other UPB-compatible devices over your existing electrical wires. No new wiring is required, making PulseWorx perfect for retrofit applications. When initial configuration is complete, a single push of a button is all you need to simultaneously activate any group of lights (or virtually anything else that connects to AC power wiring) throughout your house.
Three-way (or multi-way) light switch functionality can be obtained by connecting one (or more) RWS "remote" switches (sold separately) to its yellow traveler wire.
The switch can also be configured as a two-button transmitter. Select from a list of commands to be transmitted when each rocker button (top or bottom) is tapped, held or released. This allows the switch to remotely control other devices or update indicators (LEDs on the keypads).
NOTE: Wallplate not included.
UPB PulseWorx Lighting Control System
An integral part of a complete PulseWorx Lighting Control System, this device uses the patented UPB powerline communication technology (invented by PCS) to reliably communicate with any other UPB-compatible devices over the existing house electrical wires. No new wires are necessary, thus making PulseWorx perfect for retrofit situations. When initial configuration is complete, a single push of a button is all you need to activate any group of lights (or virtually anything else that connects to AC power wiring) throughout the house simultaneously.
- Manufacturer Part #: WS1DL-6-W (White)
UPStart UPB Software
This Windows-based application, along with a UPB Powerline Interface Module (PIM), allows you to program, configure and test your UPB smart home automation system. »Free download here
