PCS PulseWorx UPB Tabletop Controller, 8 Button


Please Select Option To View Availability


WARNING: Cancer and Reproductive Harm –


Single Pushbutton Activates Scenes

The PCS 8-Button Keypad Controller is a high quality home automation keypad device that is capable of transmitting and receiving digital commands and status over the existing powerlines. The 8-Button Keypad can control single lights, trigger dramatic scenes, or send messages to a central controller.

Select from 16 commands to be transmitted when each pushbutton is tapped, double-tapped, held or released. This allows the KPC to remotely control other UPB-compatible devices and/or update feedback indicators (like LEDs).

This Controller is a plug-in desktop device that plugs into any 120VAC electrical outlet.

UPB PulseWorx Lighting Control System

An integral part of a complete PulseWorx Lighting Control System, this device uses the patented UPB powerline communication technology (invented by PCS) to reliably communicate with any other UPB-compatible devices over the existing house electrical wires. No new wires are necessary, thus making PulseWorx perfect for retrofit situations. When initial configuration is complete, a single push of a button is all you need to activate any group of lights (or virtually anything else that connects to AC power wiring) throughout the house simultaneously.


  • Manufacturer Part #: KPCD-8

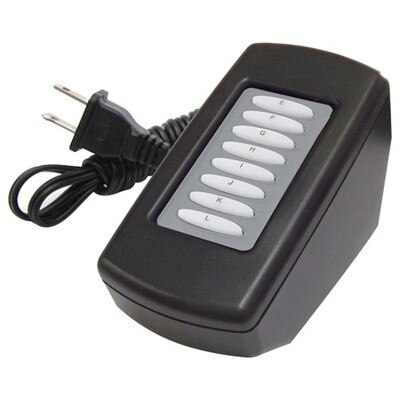

    • KPCD-8-B (Black)

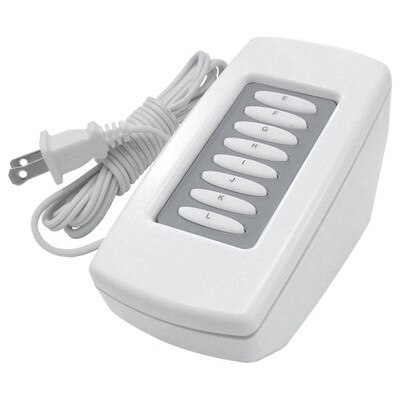

    • KPCD-8-W (White)

UPStart UPB Software

This Windows-based application, along with a UPB Powerline Interface Module (PIM), allows you to program, configure and test your UPB smart home automation system. »Free download here
