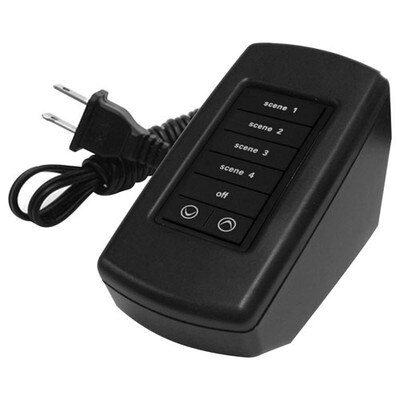

PCS PulseWorx UPB Tabletop Controller, 7 Button

SKU: PCKPCD7B

Please Select Option To View Availability

$233.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Control Single UPB Devices Or Entire Scenes

Control your PulseWorx system exactly the way you want with the PulseWorx UPB Keypad Desktop Controller (7 Button). As a plug-in UPB transceiver, this desktop automation keypad can operate seven single PulseWorx devices or entire scenes, and transmit signals to a central control unit. Just set it on a table top for convenient, reliable PulseWorx control!

  • Controls 7 single loads or entire scenes
  • Backlighting for easy nighttime viewing
  • Temporary lockout prevents unauthorized use
  • Plugs into a standard power outlet

Each of the "scene" buttons on the keypad controls one of 16 modes and sends commands upon a single tap, double tap, long press, or release. The controller is pre-programmed with six preset lighting scenes, which you can use to create inviting light levels without custom programming. LED presets also individually configure which LED indicators will light up or turn off in response to different scenes.

The controller features adjustable LED brightness and blue backlighting for easy nighttime viewing, as well as a temporary lock to keep children or guests from changing your settings.

IR Remote Control

Because the keypad accepts infrared (IR) commands, connected PulseWorx devices can be controlled with an optional IR remote (sold separately). The remote will reproduce commands for each of the buttons, allowing true remote control from across the room.

Simple Installation

The Keypad Desktop Controller plugs into a standard 120VAC power outlet. Once plugged in, it can transmit and receive UPB commands and status reports over your home's existing powerlines.

PulseWorx Products Utilize UPB Technology

PulseWorx is a complete Lighting Control System that uses existing powerlines to give residential customers one-touch control over their home's lighting. PulseWorx products are designed to work within the current framework that already exists in the home, no new wires are required. PulseWorx products utilize UPB technology, providing the most reliable powerline controls available today.

Specifications

  • Manufacturer Part #:
    • KPCD-7-B: Black
    • KPCD-7-W: White

Electrical

  • Power Requirements: Primary: 120 Volts AC, 50/60Hz
  • Transmission Channels: 7 Links/Scenes
  • Connections/Power Wire: Two 16 AWG gauge, 105 C insulation; Black - Hot/Line; White - Neutral
  • Standby Power Consumption: 0.8 Watts
  • Environmental Conditions: Indoor Use Only
  • Operating Temperature: -40 to 194 degrees F (-40 to 90 degrees C)
  • Operating Humidity: 10 to 90 percent RH (non-condensing)
  • Certifications: Safety tested for USA and Canada to ETL tested to UL508; UL-508-2010CSA C22.2 #14-2010

Operation

  • Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
  • LED Indicators: One per button; LED reflects status of Group
  • IR Receiver: Yes
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Set-Up Mode: Press and Hold ON and OFF Button for 3 Seconds - All LEDs will Flash

Mechanical

  • Button Type: 5 mechanical latching contact type buttons, 2 Momentary contact type buttons
  • Wire Nuts: 2 included
  • Mounting: Single Gang or multiple-ganged junction box
  • Dimensions: 4.1(H) x 1.7(W) x 1.8(D) inches
  • Weight: 5 ounces
  • Warranty: 5 years

UPStart UPB Software

This Windows-based application, along with a UPB Powerline Interface Module (PIM), allows you to program, configure and test your UPB smart home automation system. »Free download here
