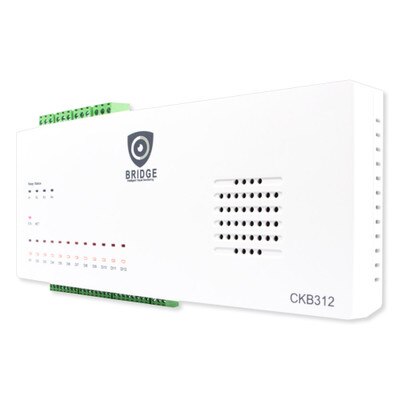

Optex Visual Verification Bridge, 12 Channel


Usually ships in 3-5 days.


WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov


Never Doubt When a Security Alert Arises

Verify security alerts with surveillance coverage with the OPTEX 12 Channel Bridge. This security gateway module allows end users or security professionals to connect their ONVIF compatible cameras and alarm sensors to visually verify alarm threats within seconds and respond accordingly, effectively eliminating 100% of false alarms. The 12 Channel Bridge connects with CHeKT, a cloud based surveillance monitoring service, providing constant monitoring and verification of your surveillance system.

  • Gateway security module activates security cameras when sensors are triggered
  • Pairs up to 12 ONVIF S compliant cameras with 12 ONVIF sensors
  • Shares footage with emergency contacts or CHeKT service team for verification
  • Supports HD over coax camera/DVR (supports DVR)
  • Line level output source for talk-down capability
  • 5 second average delivery time to Central Station
  • SMS text notifications when events are triggered
  • Secure video from protected premise to Central Station (SSL)
  • LEDS lights indicate power, connection, and device status

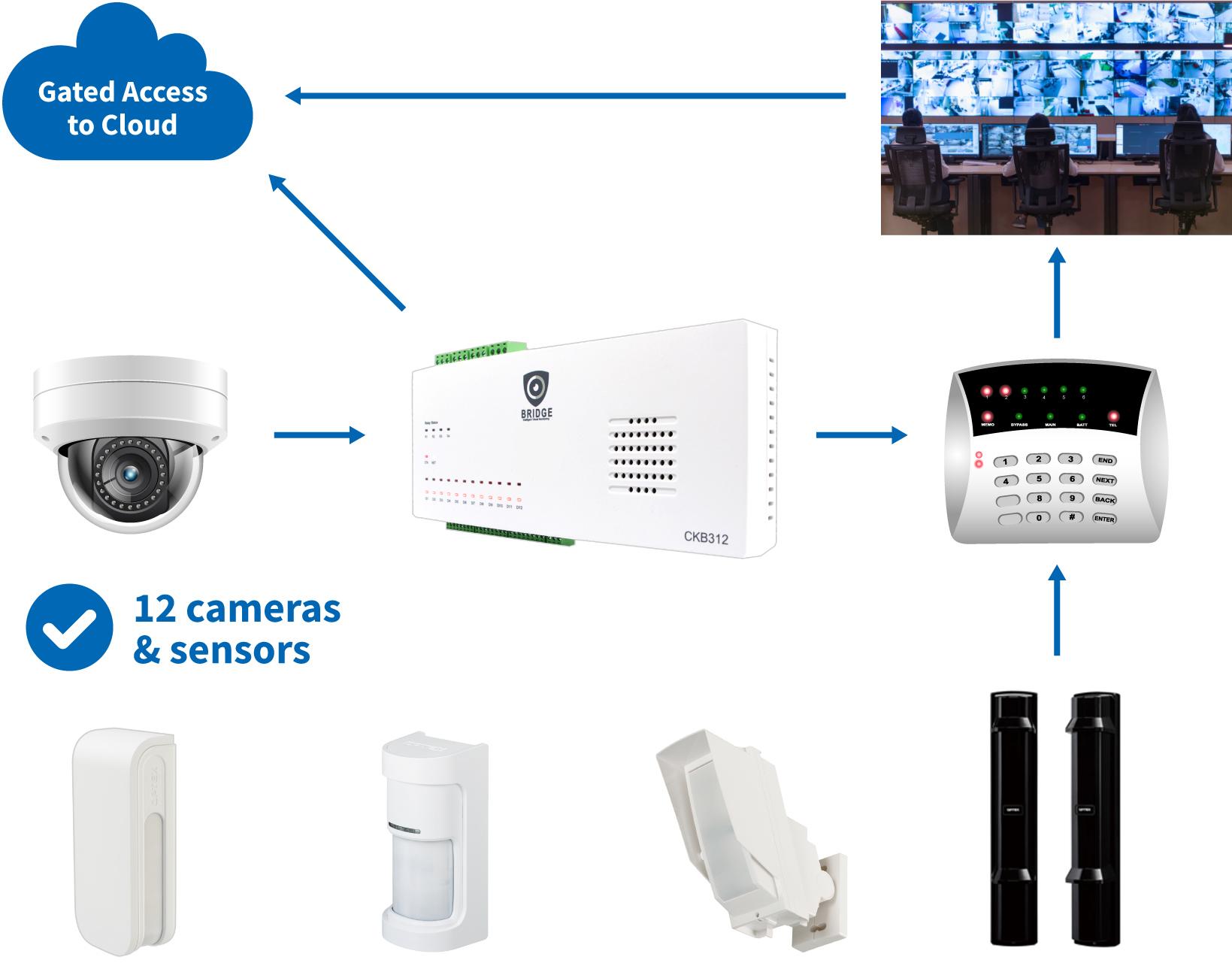

Up to twelve cameras with twelve sensors can be paired with the Channel Bridge for complete visual verification of events. When an alarm zone is triggered the user is shown the live camera view of the triggered zone, the pre- and post event video recordings, and a site map with the location of additional cameras. Depending on the agreed procedure and the assessment of the alarm, the user can either take immediate action or push the notification to a key holder or emergency contacts so they can verify the alarm and notify the user. All interactions are recorded for later review, creating a comprehensive visual verification solution.

The Optex Visual Verification Bridge can be controlled through the Optex Vision app for iOS and Android.


  • Optex Visual Verification Bridge, 12 Channel

Optex: The Quality Products People Expect

Optex specializes in passive and active infrared technology, control systems and CCTV products for home and business security. Since its founding in 1979, Optex has established a world-wide reputation for quality, innovation and technical excellence. Their products always represent an investment in performance and long-term satisfaction.


  • Manufacturer Part #: CKB-312
  • UPC: N/A
  • Ethernet: Standard 10/100 Base-T
  • Button: 1 Reset (reserved)
  • Power: 12V DC
  • Power Consumption: 800mA peak
  • Relay Out Rating: max 5Amp @ 24V DC
  • Arming Status: 0 – 12V DC Programmable, Arming Options
  • Alarm IN/OUT:
    • 12x Alarm Input Zones
    • 4x Relay Output(N.O./N.C.)
  • SD Card Slot: MicroSD/SDHC card slot, (MicroSD card Inc. for OS)
  • Audio: 1/8" (3.5mm) Line level output
  • LED Indicators: 6EA (Power/Arm Status, Net, Alarm 1-4)
  • LED Color:
    • Alarm Status: Green/Red
    • Network Status: Blue
  • Alarm 1-12: Red. Relay 1-4
  • Alarm Input Zones:
    • Input voltage range: 0V DC minimum to 12VDC maximum
    • Ground Terminals all Common
  • Protection: SSL (Secure Socket Layer)
  • Material: Polycarbonate (PC)
  • Color: White
  • Operating Temperature: 32° – 104°F (0 – 40°C)
  • Operating Humidity: Up to 85% RH (non-condensing)
  • Weight: 0.8 lbs (350g)
  • Dimensions (W x D x H): 8.9" x 3.8" 1.4" (225mm x 96mm x 36mm)
