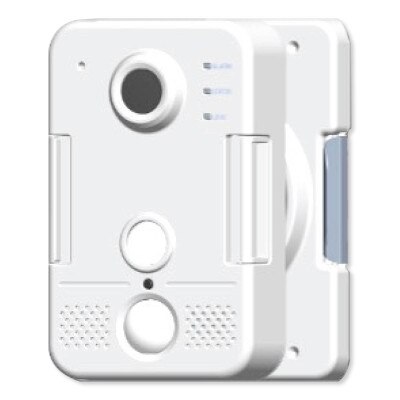

Optex InSight Cube Visual Verification Indoor Camera

SKU: OPINSCUBE

Usually ships in 3-5 days.

$244.44

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Install a Camera, Motion Sensor & Intercom All at Once

Minimize false alarms and quickly identify movement within an indoor environment with the Optex InSight Cube Visual Verification Indoor Camera! This combination HD video camera, PIR motion detector, and 2-way audio provides superior indoor surveillance for your home or business while minimizing false alarms and excessive notifications. The HD camera and PIR motion detector work in tandem to scan a room for movement and determine where the camera should be focusing at the highest possible resolution. When both the PIR sensor and camera detect a subject, the InSight Cube notifies you and any connected 3rd party security services. This effectively eliminates false alarms caused by minor movement from objects or small animals. Additionally, the InSight Cube allows you to talk with anyone the camera can see, so you can talk with familiars or intimidate intruders.

  • 3-in-1 camera, PIR sensor, and 2-way audio security device for indoor applications
  • Captures footage in 1080p@30fps with the option for adjusting resolution, frame rate, and video aspect ratio
  • Only alerts you when a subject is seen by both PIR sensor and camera, minimizing false alarms from minor movement or small animals
  • Optimizes video quality by focusing on high movement/low movement areas for clear footage of motion
  • 2-way audio enable users to communicate with views subjects
  • Compliant with ONVIF compatible DVRs, NVRs, and other devices
  • Fully integrated with Optex Bridge devices and CHeKT online web portal
  • Flexible plug-ins support any web browser, such as Google Chrome, Firefox, Safari, etc.

Optex Vision App

The Optex InSight Cube Visual Verification Indoor Camera can be controlled through the Optex Vision app for iOS and Android. The Optex Vision app enables users to see real time feeds from their connected security cameras, receive notifications from triggered cameras or sensors, and review recorded footage saved on compatible DVR or NVR devices. Users may also utilize the app to adjust device settings and configurations.

Installation Details

The camera mounts onto an interior wall with included mounting plate and hardware. The camera can be powered via DC power cable.

Contents

  • Indoor Cube
  • Mounting Bracket
  • Mounting Template
  • (4) Mounting Screws
  • (4) Plastic Anchors
  • Screw
  • DC Plug Jack

Optex: The Quality Products People Expect

Optex specialize in passive and active infrared technology, control systems and CCTV products for home and business security. Since its founding in 1979, Optex has established a world-wide reputation for quality, innovation and technical excellence. Their products always represent an investment in performance and long-term satisfaction.

Specifications

  • Manufacturer Part #: INS-CUBE

Camera

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Lens: 2.8mm, F1.6
  • Min. Illumination: 0.035Lux, AGC On : 0Lux with IR (F1.6)
  • IR Range: Up to 10m
  • Angle of View: 110°
  • PIR Range: Up to 10m, 120° Angle of View
  • Day/Night: IR cut filter with auto switch
  • Shutter Times: 1/15s – 1/32,000s

Compression Standard

  • Video Compression: H.264, H.265, MJPEG
  • Video Bit Rate: 100Kbps – 10Mbps
  • Audio Compression: G.711


  • Max. Image Resolution: 1920 x 1080
  • Frame Rate: 60Hz : 30fps
  • Digital Noise Reduction: 3D DNR
  • Wide Dynamic Range: True WDR
  • Image Setting: Rotate mode, Saturation, Brightness, Contrast, Sharpness, AGC, ROI

Functions

  • Alarm Triggers: Motion detection, Network disconnect, IP address conflict, Storage exception, Temperature critical, PIR detection, Audio detection
  • Local Storage: Built-in Micro SD, SDHC, SDXC card slot, Up to 128GB
  • Security: One-key reset, Flash-prevention, Dual Stream, Password protection, Privacy mask, IP address filtering, Anonymous access
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Interface

  • Communications: 1 RJ45 10M/100M Ethernet Port
  • Audio Input: Built-in Microphone
  • Audio Output: Built-in Speaker
  • Alarm Out (NO/NC): 1 Channel Signal
  • Tamper Alarm (Switch): 1 Channel Signal

Wi-Fi

  • Wireless Standard: IEEE802.11b, 802.11g, 802.11n
  • Frequency Range: 2.4 GHz ~ 2.4835 GHz
  • Channel Bandwidth: 20MHz Support
  • Protocols: 802.11b : CCK, QPSK, BPSK ; 802.11g/n : OFDM
  • Security: 64/128bit WEP, WPF/WPA2, WPA-PSK/WPA2-PSK, WPS
  • Wireless Range: 25m (Dependent Upon Environment)

Physical

  • Working Temperature: -20°C – 50°C (-4°F – 122°F), 90% Max Humidity
  • Dimensions (V x H): 3.44 x 4.48 x 2.83 inches (87.6 x 114mm x 72.1mm)
  • Weight: 0.65lb (297g)

Electrical

  • Power Supply: 12V DC ±10%, PoE (802.3af)
  • Power Consumption: 12V DC 6.4W, PoE (802.3af) 6.8W
  • Certifications: FCC, CE
