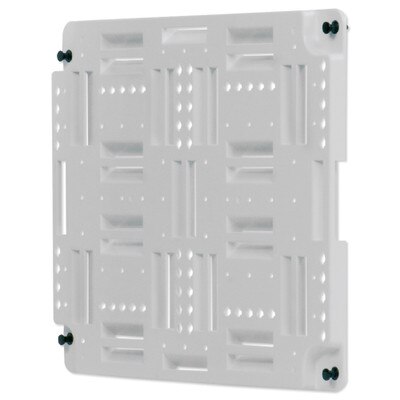

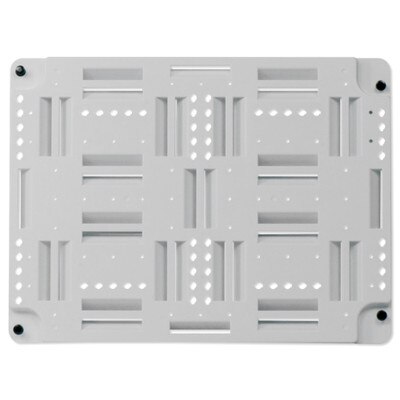

On-Q/Legrand Universal Mounting Plate

Secure 3rd-Party Devices Within an On-Q/Legrand Structured Wiring Enclosure

The On-Q/Legrand Universal Mounting Plate allows 3rd-party wired and wireless devices to be securely mounted within an On-Q/Legrand plastic or metal structured wiring enclosure. It's designed with Wi-Fi transparent ABS plastic and has vertical and horizontal lancing locations with strategically placed screw holes throughout the mounting plate. Eight feet of hook-and-loop fastener strapping is included to strap down large or small devices such as ISP modems/routers, fiber optic network units (ONU), cable splitters, cable amplifiers, and more.

• Allows 3rd-party devices to be mounted within an On-Q/Legrand structured wiring enclosure
• Vertical and horizontal lancing locations
• Screw holes are strategically placed to affix devices
• Universal mounting holes accept 3rd-party modules
• Includes eight feet of strapping and (4) plungers and grommets
• Made with durable Wi-Fi transparent ABS Plastic

Installation Details

Four grommets and plungers are included to snap the On-Q/Legrand Universal Mounting Plate into an On-Q/Legrand plastic or metal structured wiring enclosure. The included hook-and-loop fastener strapping can be threaded through the horizontal and vertical lancing locations. Screw holes are strategically placed throughout the mounting plate to allow devices to be screwed into place.

Contents

• On-Q/Legrand Universal Mounting Plate
• Strapping (8 feet)
• (4) Plungers and Grommets
• User Manual

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

• Manufacturer Part #: AC1040
• Material: ABS Plastic
• Color: White
• Operating Temperature: 32° to 122° F (0° to 50° C)
• Dimensions: 13.2(W) x 10(H) x 0.5(D) inches (335 x 254 x 13 mm)
• Certifications: RoHS

»On-Q/Legrand AC1040 Universal Mounting Plate Spec Sheet (.pdf)
»On-Q/Legrand AC1040 Universal Mounting Plate Installation Manual (.pdf)
