On-Q/Legrand Radiant RF Lighting Control System Starter Kit
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Complete Kit for App-Based Lighting Control
Begin creating a smart lighting control system for your home with the On-Q/Legrand Radiant RF Lighting Control System Starter Kit. This all-inclusive starter kit provides you with an intelligent control hub, along with two smart dimmer switches, one smart On/Off switch, and one 3-way auxiliary switch that links with the On/Off switch. (Plus, you get four white wallplates to finish each switch.) In the Radiant style, all included switches and wallplates share the Radiant collection's elegant fit and finish for consistent color and clean, low-profile design.

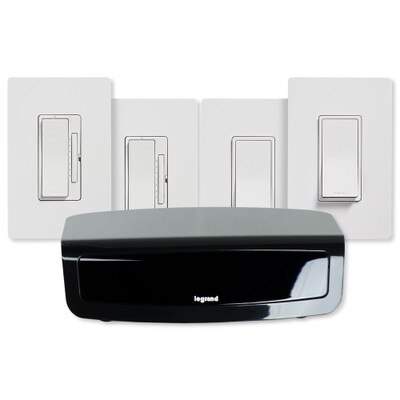

Kit Includes
- (1) On-Q/Legrand Whole-House Lighting Controller
- (2) On-Q/Legrand Radiant Universal RF Dimmer Wall Switches
- (1) On-Q/Legrand Radiant RF On/Off Wall Switch
- (1) On-Q/Legrand Radiant 3-Way RF Wall Switch
- (4) On-Q/Legrand Radiant Screwless Wallplates
Simply swap out your old light switches for these new ones. Once it's all set up, you can control your lights with a free mobile app on your smartphone or tablet (iOS or Android), or your Apple Watch, and you also have the option to use voice control through Amazon Alexa or Google Home (not included).
Kit Features
- Complete lighting control system with option to expand
- Includes hub and switches to control 3 light fixtures via app or voice control
- Control individual lights, trigger scenes, and create automated schedules
- Can integrate with Legrand's Intuity system and 3rd-party automation systems
- Compatible with other On-Q/Legrand RFLC and most adorne lighting controls
- Used with the free Legrand Lighting Control app for iOS and Android

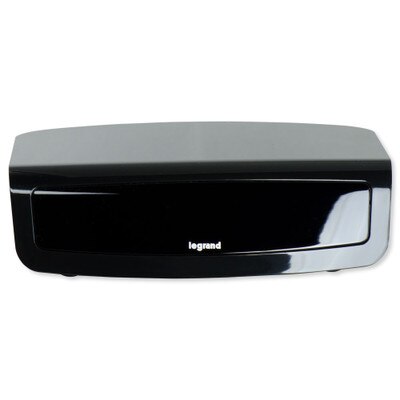

Whole-House Lighting Controller (LC7001)

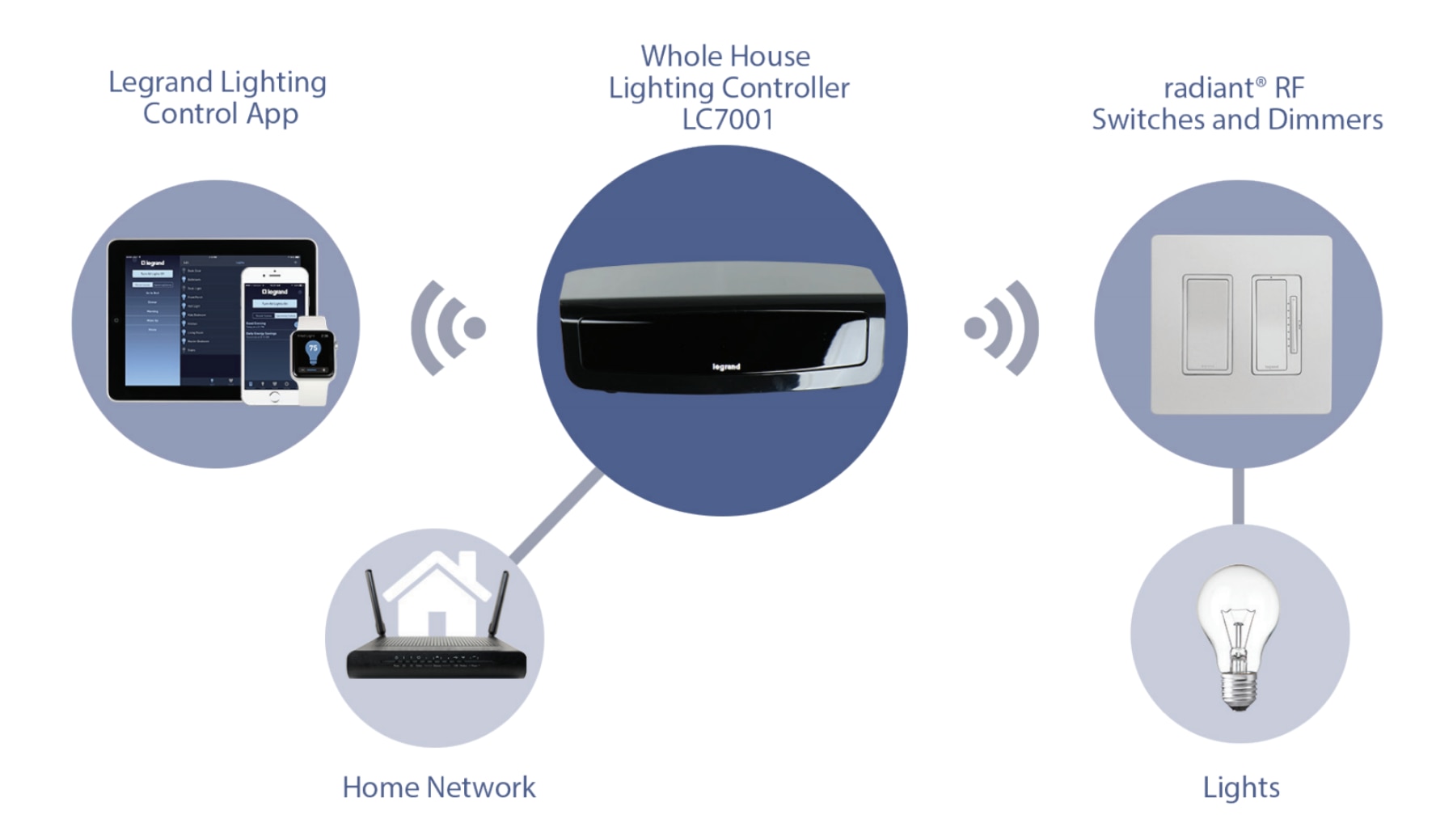

Through a simple internet connection, the controller links the included smart light switches to the free Legrand Lighting Control app on your mobile device, giving you app-based control over your lights.
Allowing you to expand this starter system as you wish, the controller supports up to 100 individual devices (4 included) and enables control of up to 100 scenes through up to 20 scene controllers (LC2303-XX, sold separately), allowing you to set the right mood with the press of a button. Movie time? Dim all the living room lights at once by pressing a single scene button in the app.
The controller works with dimmer switches, On/Off switches, and scene controllers in both the On-Q/Legrand radiant (RF Lighting Control) and adorne (Wi-Fi Ready) lighting control collections.
Real-Time Scheduling & Optional System Integration
In addition to enabling manual app-based control over your lights, the Whole-House Lighting Controller has a built-in real-time clock for scheduling time-of-day lighting scenes. Through the app, you can easily program lighting scenes for specific times, including sunrise and sunset based on your specific location. With this sunrise and sunset feature, a scene can automatically adjust its activation time throughout the year, such as lights on at sunset, or lights out at dawn.
Finally, the controller optionally integrates with Legrand's Intuity home automation system or third-party automation systems, so you can include your app-controlled lighting system in an entire automation network.

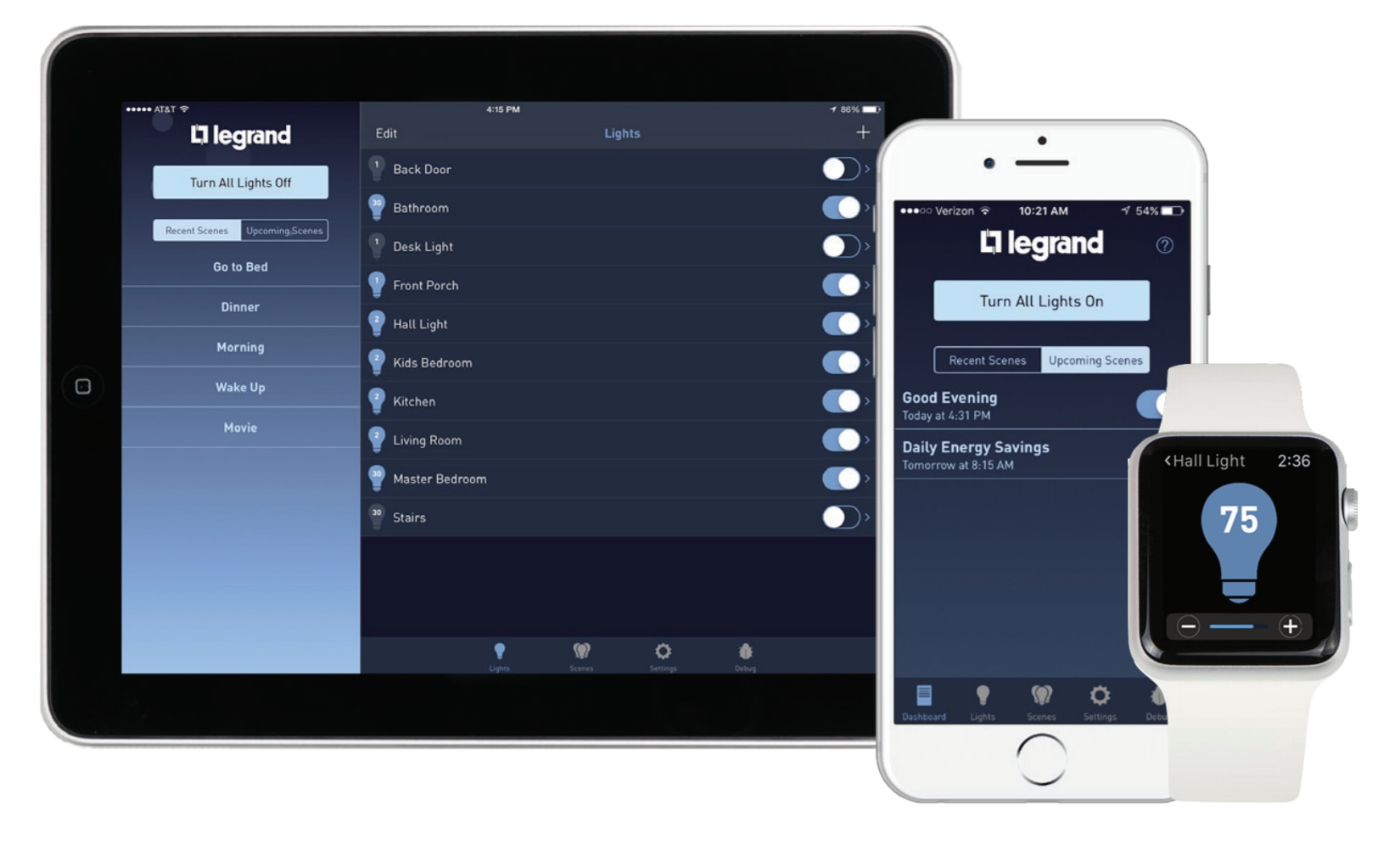

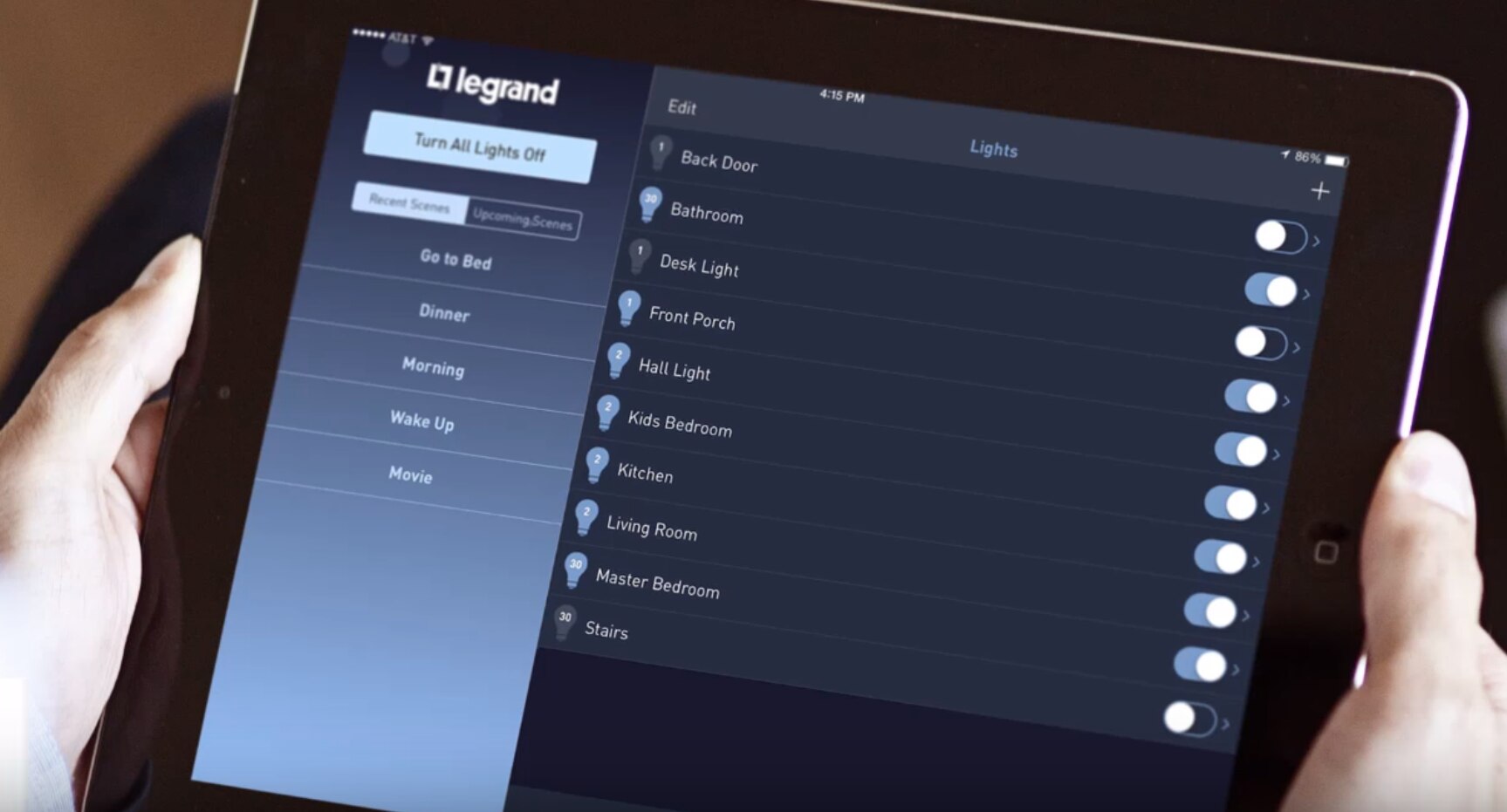

Lighting Control App Features
- Automate your lighting with programmable scenes that match your schedule
- Turn all lights on or off with a single tap
- Quickly adjust light levels in any room of your house
- Advanced scene setup by time of day and sunrise and sunset
- Available for free from iTunes and Google Play

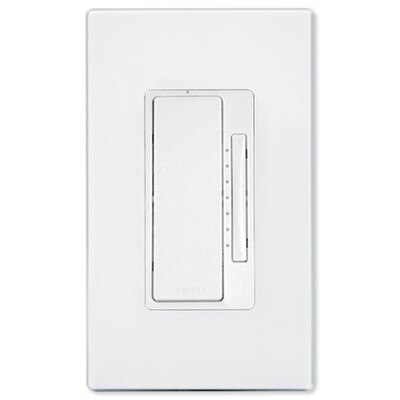

Radiant Universal RF Dimmer Wall Switches, White (LC2101-WH)
Add convenient on/off/dim remote control to any two dimmable light fixtures with the two included On-Q/Legrand Radiant In-Wall True Universal RF Dimmers. These truly universal dimmer switches support any dimmable load to provide easy-to-use wireless control.
- Pairs with the included Whole-House Lighting Controller
- Supports dimmable incandescent, CFL, LED, ELV, MLV, and EFL loads
- Mounts in a standard electrical box (single-gang in size)

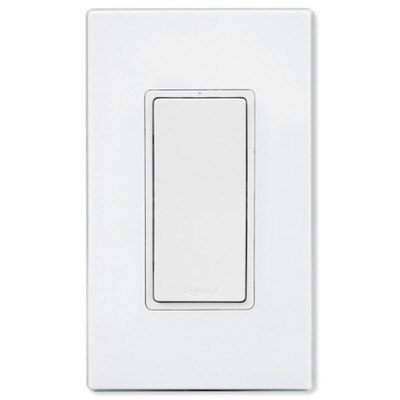

Radiant RF On/Off Wall Switch, White (LC2201-WH)
Add convenient on/off remote control to an incandescent light fixture or small appliance with the included On-Q/Legrand Radiant RF On/Off Wall Switch. This simple non-dimming switch supports lights up to 1500W and motor loads up to 1/4 HP.
- Pairs with the included Whole-House Lighting Controller
- Supports non-dimming incandescent lights up to 1500 Watts
- Supports small appliances (motor loads) up to 1/4 HP
- Mounts in a standard electrical box (single-gang in size)
Radiant 3-Way RF Wall Switch, White (LC2203-WH)
Create 3-way on/off lighting control without running new wires by installing the On-Q/Legrand Radiant 3-Way RF Wall Switch along with the master On-Q/Legrand RF On/Off Wall Switch (included, described above). This 3-way auxiliary switch communicates wirelessly with the other switch, so you can control the master switch's light/load from either switch. It's the perfect no-new-wires solution for lights or small appliances in hallways, stairways, and other similar locations.
- Enables multi-location, 3-way control for a non-dimming load
- Works in conjunction with the included On/Off switch
- Mounts in a standard electrical box (single-gang in size)
Kit Installation & Setup Details
The controller comes with a Cat5 Ethernet cable for connection to your home network. It also includes a USB power cable and plug-in adapter for plugging into a standard power outlet; although as a PoE-capable controller, you can opt to power the controller through the same Ethernet cable used for your network connection, without plugging in the USB power cable.
Pairing the controller with your network is easily accomplished through the Legrand Lighting Control app (mobile device must be connected to Internet via Wi-Fi or data connection). Once the controller is auto-discovered by your network through the app, you will then be guided by the app to discover and name each lighting device in your system.
Contents
- (1) On-Q/Legrand Whole-House Lighting Controller (LC7001)
- USB Power Cable
- Power Adapter
- Cat5 Cable
- (2) On-Q/Legrand Radiant Universal RF Dimmer Wall Switches, White (LC2101-WH)
- (1) On-Q/Legrand Radiant RF On/Off Wall Switch, White (LC2201-WH)
- (1) On-Q/Legrand Radiant 3-Way RF Wall Switch, White (LC2203-WH)
- (4) On-Q/Legrand Radiant Screwless Wallplates, 1-Gang, White (RWP26W)
- Sub-Plates
- Screws
Notes
- Requires a mobile device (iOS or Android) with the free Legrand Lighting Control app (AKA the RF Lighting Control app).
- To use PoE power for the Whole-House Lighting Controller, instead of the plug-in power adapter, the Cat5 cable must be connected to a PoE port on your home network device.
- 3-Way Switch (LC2203-WH) does not directly control a light/load; requires use with the master RF on/off switch (included).
Start With A Strong Foundation
From innovative enclosures to high-performance connection outlets, On-Q/Legrand products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.
Specifications
- Manufacturer Part #: LC7500-WH
Whole-House Lighting Controller (LC7001)
Compatibility
- Mobile Devices: App requires iOS 8.0 or later, or Android 4.1 or later. Compatible with iPhone, iPad, iPod Touch, and Apple Watch.
- System Controllers: The LC7001 works in conjunction with the Legrand Lighting Control iOS/Android app and the Samsung ARTIK Cloud platform to provide uninterrupted control and automation of RF Lighting Control System devices.
- Lighting Control Devices: The LC7001 is compatible with all dimmer, switch, and scene controller products in both the radiant (RF Lighting Control) and adorne (Wi-Fi Ready) collections. The compatible legacy RF Lighting Control devices include the DRD2x dimmer, DRD3x switch, and DRD4x dimmer. The DRD9x fan speed controller is discoverable as a dimmer and offers only adjustable speed control in that capacity.
Technical Details
- Type: The Hub
- Color: Gloss Black
- Material: FR4 (PCB)
- Interoperability: Radio Frequency TopDog RF communication protocol
- Wireless Range: RF Lighting Control devices offer a default range of 100 feet between devices. Using a MRR2-G repeater (sold separately) extends this range by 100 feet. The system supports up to two repeaters for a maximum range of 300 feet between devices.
- Amps: 500mA
- Watts: 2.5W
- External Power Input: 5 VDC 500mA VFA-0012
- Compatible Power Supplies: Included
- Cord Assembly Type: Lighting control system
- LAN Ports: RJ45 Ethernet port
- Mounting: Desktop Unit
- Bracket Required: Yes (included)
- Operating Temperature: 32° to 122°F (0° to 50°C)
- Operating Humidity: 0 to 93 percent relative humidity, non-condensing
- Dimensions: 10.38(D) x 3(H) x 10.5(W) inches (263.65 x 76.2 x 263.65 mm)
- Weight: 1.62 pounds
- Approvals: FCC, RoHS, UL
- Warranty: Lifetime Limited
On-Q/Legrand Radiant Universal RF Dimmer Wall Switch, White (LC2101-WH)
- Type: Universal Lighting Control, Radiant Series
- Housing Material: High Impact Plastic
- Special Features: Dimmable, 3-wire, Programmable, Intuity Home Intelligence
- AC Voltage Input: 120 VAC
- Frequency Rating: 900 MHz
- Humidity: Up to 90 percent Relative Humidity (non-condensing)
- Max. Load:
- Incandescent: 700W
- Magnetic Low Voltage (FWD): 500VA
- Electrodeless Lamp (EFL/Induction): 5.5A
- Electronic Low Voltage (REV): 700W
- CFL/LED: 450W
- Mounting: Mounts in a standard electrical box
- Operating Temperature: 32° to 110°F (0° to 43°C)
- Power Consumption: Varies based on load
- Regulatory Approvals: UL, FCC, cULus, RoHS
- Dimensions: 4.185(H)
- Warranty: 15 Years
On-Q/Legrand Radiant RF On/Off Wall Switch, White (LC2201-WH)
- Type: Lighting Control, Radiant Series
- Housing Material: High Impact Plastic
- Special Features: Remote dimmer, RH, Intuity Home Intelligence
- AC Voltage Input: 120 VAC
- Frequency Rating: 900 MHz
- Humidity: Up to 90 percent Relative Humidity (non-condensing)
- Max. Load:
- Incandescent, Non-Dimmable Fluorescent, CFL, Integral Fixtures: 1500W
- Motors: 1/4 HP
- Mounting: Mounts in a standard electrical box
- Operating Temperature: 32° to 110°F (0° to 43°C)
- Power Consumption: Varies based on load
- Regulatory Approvals: UL, FCC, cULus, RoHS
- Dimensions: 4.8(H) x 2.48(L) x 3.03(W) inches (121.92 x 62.99 x 76.96 mm)
- Warranty: 15 Years
On-Q/Legrand Radiant 3-Way RF Wall Switch (LC2203-WH)
- Type: Lighting Control, Radiant Series
- Typical Applications: Incandescent, Halogen, MLV, Fluorescent, ELV, CFL, and LED bulbs
- Housing Material: High Impact Plastic
- Special Features: Remote dimmer, RH, multiple access points, Intuity Home Intelligence
- AC Voltage Input: 120 VAC
- Frequency Rating: 900 MHz
- Humidity: Up to 90 percent Relative Humidity (non-condensing)
- Max. Load: 1500W
- Mounting: Mounts in a standard electrical box
- Operating Temperature: 32° to 110°F (0° to 43°C)
- Power Consumption: Varies based on load
- Regulatory Approvals: UL, FCC, cULus, RoHS
- Dimensions: 4.8(H) x 2.48(L) x 3.03(W) inches (121.92 x 62.99 x 76.96 mm)
- Warranty: 15 Years
On-Q/Legrand Radiant Screwless Wallplates, 1-Gang, White (RWP26W)
- Materials:
- Wallplate: Polycarbonate
- Sub-Plate: Polyphenylene Ether and Polystyrene
- Screws: Steel
- Size: 1-Gang
- Special Features: Screwless
- Dimensions: 4.94(H) x 3.15(W) inches (125.476 x 80.01 mm)
