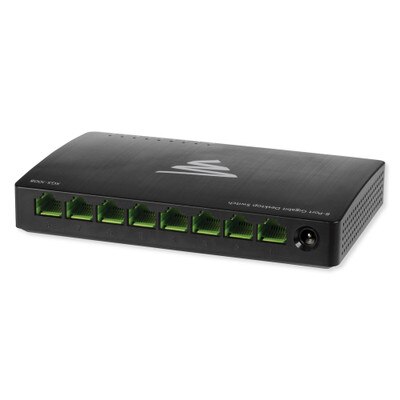

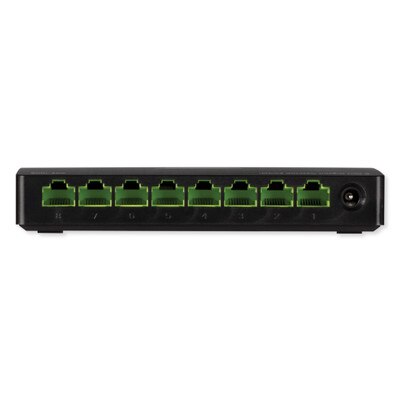

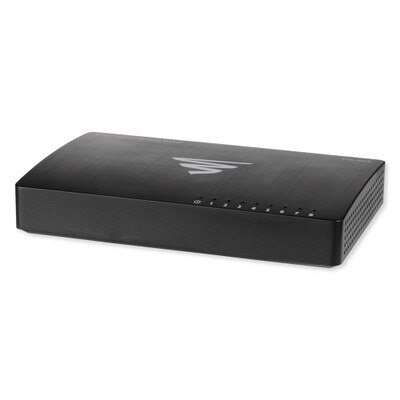

Luxul 8-Port Desktop Gigabit Ethernet Switch

SKU: LXXGS1008

Usually ships in 3-5 days.

$Dealer

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

DEALER ONLY ITEM: Not Available Directly to End Users.

Dealers, log on to see pricing. »Sign up to become an authorized installer.

Expand & Improve Your Home Network

Expand the network in your home or office with the Luxul Desktop 8-Port Gigabit Ethernet Switch (16Gbps). This 8-port Gigabit switch delivers high-speed (1000Mbps) connectivity and will allow you to network up to eight Ethernet-enabled devices. It's designed to support Gigabit devices, providing faster, fluid communication for networked TVs, gaming systems, and other bandwidth demanding devices.

  • Upgrades or expands your network with Gigabit speeds
  • Connects up to 8 Ethernet-enabled networked devices
  • Delivers speeds up to 1000Mbps
  • Enhance your network for VoIP, video, security, or gaming applications
  • Easy installation, just plug and play

Luxul ProWatch Provides Off-Site Monitoring

ProWatch is a free cloud management solution that provides app-based remote monitoring and management of your network devices from anywhere with an Internet connection. ProWatch consists of three classifications: ProWatch Enabled, ProWatch Integrated, and ProWatch+.

  • ProWatch Enabled products are designed with ProWatch compatibility to provide remote access and monitoring of the device, deliver alert notifications and firmware updates, and allow for remote rebooting of the device.
  • ProWatch Integrated products are devices that have been added into a ProWatch connected network and are capable of reporting information to the network.
  • ProWatch+ products allow non-ProWatch enabled devices to be controlled remotely and report information as if they were native ProWatch Enabled devices.

As a ProWatch Integrated device, this device is capable of self-reporting its information to a connected ProWatch+ device, such as a Luxul router, Mesh Node, or Access Point.

Contents

  • 8-port Gigabit Switch
  • External Power Adapter
  • Quick Install Guide

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

Specifications

Product Features

  • Full-duplex flow control
  • NWay auto negotiation
  • Auto uplink (MDI/MDI-X)
  • Non-blocking architecture
  • Designed for desktop or wall-mount

Requirements

  • Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab gigabit Ethernet
  • Ethernet cable (sold separately)
  • Internet connection to view documentation online

Technical Details

  • Manufacturer Part #: XGS-1008
  • UPC: 729440674038
  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab IEEE 802.3x
  • Interface:
    • 8 RJ-45 ports
    • Cable Recognition for Straight-through or Crossover Cables
  • LED:
    • Per Unit: Power
    • Per Port: Link/Activity
  • Power Supply: External Power Adapter
  • Network Data Transfer Rate:
    • Ethernet: 10Mbps (Half-duplex)
    • Ethernet: 20Mbps (Full-duplex)
    • Fast Ethernet: 100Mbps (Half-duplex)
    • Fast Ethernet: 200Mbps (Full-duplex)
    • Gigabit Ethernet: 1000Mbps (Half-duplex)
    • Gigabit Ethernet: 2000Mbps (Full-duplex)
  • Packet Filtering/ Forwarding Rate:
    • 14880pps (10Mbps) per Port
    • 148800pps (100Mbps) per Port
    • 1488000pps (1000Mbps) per Port
  • MAC Address Table: 8K
  • MAC Address Learning: Yes
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity: 10% to 90% (Non-condensing)
  • Dimensions: 6.8 x4.3 x 1.2 inches (172.72 x 109.22 x 30.5 mm)
  • Weight: 0.55 lbs (2.1Kg)
  • Certification: FCC, IC, Class B, CE, RoHS
  • Warranty: 3 Year Limited
