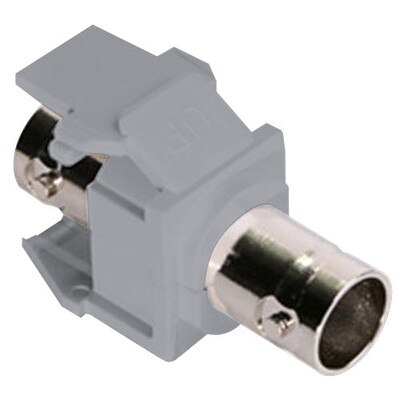

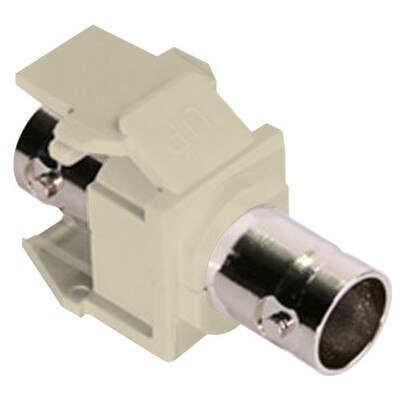

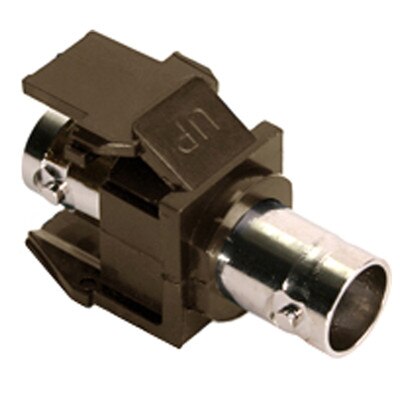

Leviton QuickPort BNC Snap-In Connector

SKU: LV41084BxF

Please Select Option To View Availability

$7.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Customize Your Own Multi-Media Wallplates With Mix & Match Components

The Leviton Quickport Female BNC Connector has twist-on front and rear connections using BNC plugs. These Connectors are designed to be used for high-end video, home theater, CCTV, LAN.

  • Voice/data/video connectivity for workstation cabling termination on coaxial cable.
  • Connection adapter is for cables that have male connectors already installed on cables.
  • Connectors are compatible with a variety of patch panels, QuickPort and MOS wallplates, including flush and surface mount styles.
  • Twist-on front and rear connections using BNC plugs for easy termination.
  • Check clearance behind proposed location of bulkhead module to ensure space for proper bend-radius of cabling.
  • Applications include high-end video, home theater, CCTV, LAN.

Leviton's QuickPort Family

The QuickPort system – Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes – allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort family of connectors is compatible in any QuickPort housing. This simple solution is ideal for any environment that has frequent moves, adds and changes.

Specifications

Design Considerations

  • Check clearance behind proposed location of bulkhead BNC module, to ensure space for proper bend-radius.
  • BNC bulkhead module is for cables that have male connectors already installed on cables.

Technical Details

  • Dimensions: .650"H x .600"W x 1.40"D
  • Materials: Snap-in module bodies are high-impact, fire-retardant plastic rated UL 94V-0.
  • Compliances: Meets or exceeds all applicable standards; Bulkhead Modules are cULus Listed
