Leviton Passive Video Splitter Module, 2GHz

SKU: LV47690xC2

Please Select Option To View Availability

$29.03 to $41.81

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Split Video Signals Through Your Structured Media Center

The Leviton Passive Video Splitter Module (2GHz) is used to distribute one video signal to multiple TVs in the home. The splitter is available in three different configurations, allowing distribution to four, six, or eight TVs.

  • Distributes one video signal to multiple TVs
  • Works with digital cable, standard cable, and off-air signals
  • Die-cast housing and printed circuit board
  • Gold-flashed contacts for lowest conductive resistance
  • Mounts into a Leviton Structured Media Center

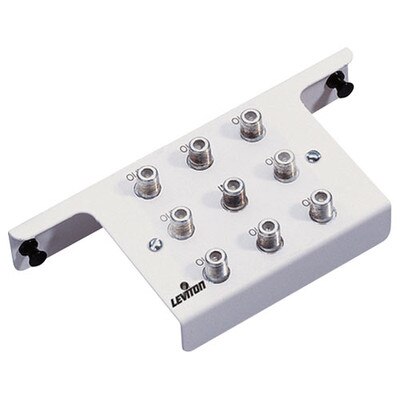

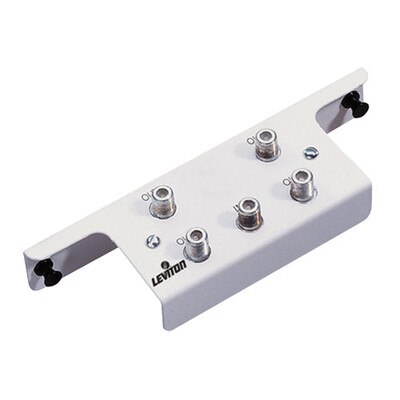

Available Configurations: 1x4, 1x6, 1x8

With the included mounting bracket, the Splitter Module can be installed in any Leviton structured media enclosure (140, 280 or 420 Series). The module also comes with 75 Ohm termination caps to cover unused connectors.

Contents

  • Splitter Module
  • Mounting Bracket

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today’s residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

Specifications

  • Color: White
  • Bracket Material: Steel Powder-Coated
  • Type: Passive Video Splitter
  • AC Power Adapter: No
  • Frequency Range: 2 GHz
  • Impedance: 75 Ohm
  • Insertion Loss dB:
    • 1X4: 7.7 dB – 10.5 dB
    • 1X6: 11.0 dB – 14.0 dB
    • 1X8: 11.9 dB – 15.7 dB
  • Return Loss dB Forward:
    • 1X4: 9.5 dB – 21.0 dB
    • 1X6: 11.5 dB – 23.5 dB
    • 1X8: 9.9 dB – 30.0 dB
  • Isolation dB:
    • 1X4: 24.0 dB – 30.0 dB
    • 1X6: 35.0 dB – 39.5 dB
    • 1X8: 32.0 dB – 39.2 dB
  • Standards and Certifications: Meets all applicable standards
  • Warranty: 2-Year Limited
