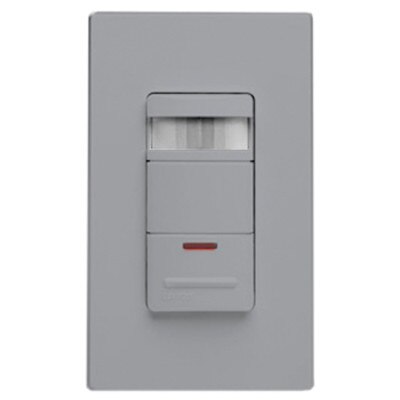

Leviton Wall Switch Occupancy Sensor with LED Nightlight

Occupancy & Vacancy Sensing With Guide Light Functionality

The Designer Occupancy Sensor Wall Switch with LED NightLight is designed to provide occupancy detection with a Guide Light/NightLight all in one clean, attractive wall switch device. The NightLight automatically illuminates based on the ambient level of light present in the space providing a comfortable, low level of light that helps guide the occupant without activating general lighting. It operates separately from the lighting load controlled by the occupancy sensor.

The passive infrared (PIR) sensor detects motion from a heatemitting source within its field-of-view to automatically switch lights ON and OFF. Offering the same performance features as the ODS family of occupancy sensors. This model has the ability to reduce (dim) and turn off the luminance of the "Guide Light" function with a simple dial setting. The LED NightLight consumes less than one half of a watt providing energy savings and guide lighting when room lights are off.

Leviton Lighting Controls

Leviton offers a wide variety of lighting controls that combine sophisticated design with state-of-the-art technology. These include dimmers, scene controllers, timers, motion sensors, and occupancy sensors. The comprehensive line comes in a vast array of styles and lighting loads. Their contemporary styling provides precise, dependable control and complements all home decors, while offering the potential for significant energy savings. Discover how Leviton's lighting controls can be one of the easiest and most cost-effective ways to upgrade any living area.

Product Features

• Auto-ON/Auto-OFF or Manual-ON/Auto-OFF selectable operation
• Convenient push-button provides manual ON/OFF light switching at any time
• LED NightLight offers "Guide Light" functionality
• Adjustable NightLight illumination
• Setting for continuous or dimmed NightLight
• Proprietary segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive "small motion" area where even the slight body movements will be detected
• Horizontal field-of-view may be adjusted between 180 and 32 32 degrees of arc by using internal blinders located on either side of the lens
• One unit can be used for either 120V or 277V lighting compatible with both electronic and magnetic ballasts
• Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
• Fits in a standard wallbox and replaces single-pole wall switch; ground and neutral connection required. Gangable with other units

Technical Details

• Switch Type: Single-Pole Selectable-ON/Auto-OFF
• Adjustment: Manual
• Technology: Passive Infrared
• Pattern Degrees: 32-180
• Coverage Range Sq. Ft.: 1200
• Time Adjustment: 30s-2h
• Load Rating: 800W@120V INC 1200VA@120V 2700VA@277V FL
• Voltage: 120/277 Volt AC 60Hz
• Wiring Neutral / Ground: Required
• Feature: With NightLight
• Color: Gray, Ivory, Light Almond, White
• Wallplate: Order Separately
• Standards and Certifications: UL/cUL Listed
• Code Compliance: California Title 24
