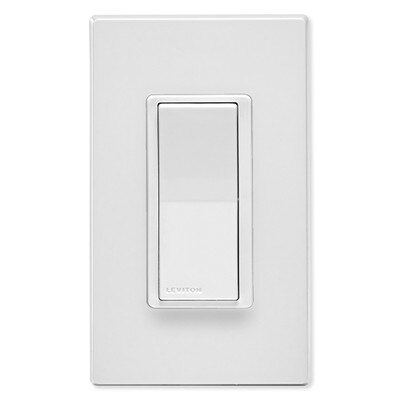

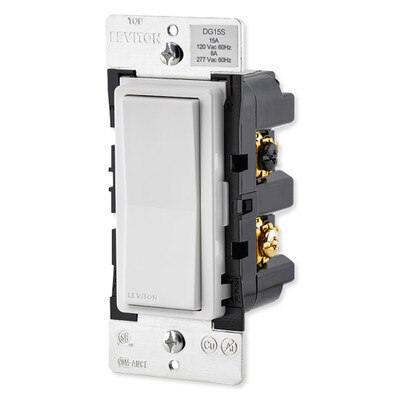

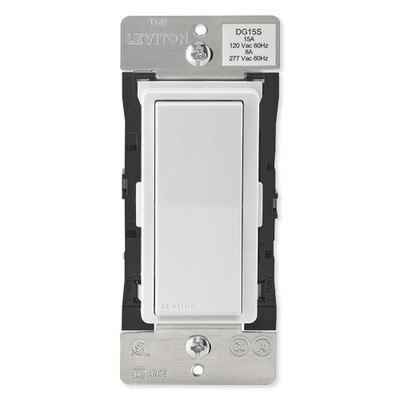

Leviton Decora Smart Zigbee 3.0 Switch, 15A

Wireless Single Lighting Control, No Hub Needed

Control connected electrical loads locally or remotely via Zigbee with the Leviton Decora Smart Zigbee 3.0 Switch, 15A. This Zigbee switch commands and schedules connected wired loads to turn On/Off according to your schedule or as part of programmed automated scenes. The Smart Zigbee 15A Switch can be included in automated scenes and be remotely controlled by a Zigbee automation hub or gateway to operate.

• Zigbee connected light switch enables local and remote On/Off control of lights and devices
• Commands LEDs and CFLs up to 600W/5A, Incandescents and Fluorescents up to 1800W/15A
• Supports Inductive loads up to 1800VA, Resistive loads up to 15A, and Motor loads up to 1/2 HP
• Program individual or grouped lights to turn On/Off at scheduled times or as part of lighting or automated scenes
• Voice-control compatible with Amazon Alexa
• Compatible with Xfinity, Amazon Echo Plus, Echo Show (2nd Gen), and Echo Studio
• Supports wired multiway applications with the DD0SR Switch Companion

Contents

• Smart Zigbee Switch
• Decora Wallplate, White

Notes

• Wireless operation requires a Zigbee automation controller, its associated mobile app, and an Internet connection.
• Requires a neutral wire connection.

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

• Manufacturer Part #: DG15S-1BW
• UPC: 078477269855
• Color: White
• Ratings:
• LED/CFL 5A – 600W
• Incandescent/Halogen – 1800W
• Resistive – 15A
• Fluorescent – 15A, 1800W
• Inductive – 1800VA
• Motor – 1/2 HP
• Neutral Required: Yes
• Termination: Screw Terminals
• Voltage: 120VAC, 50/60Hz
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Operating Humidity: 0 to 90% non-condensing
• Certifications: UL, FCC, CSA, NOM, Zigbee 3.0
• Warranty: 5-Year Limited
