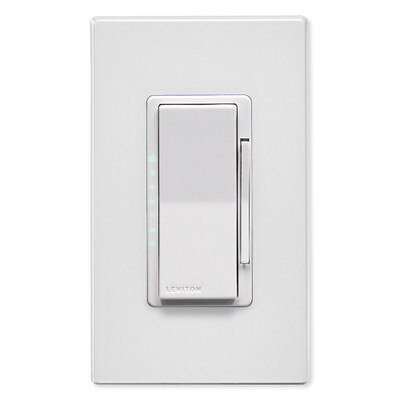

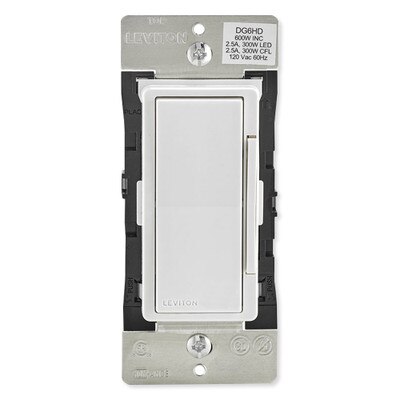

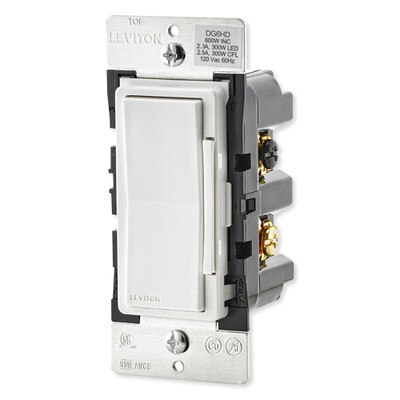

Leviton Decora Smart Zigbee 3.0 Dimmer Wall Switch, 600W

Add Zigbee and Voice Control Over Your Lights

Control connected electrical loads locally or remotely with a smartphone via Zigbee with the Leviton Decora Smart Zigbee Dimmer Wall Switch, 600W. This Zigbee dimmer switch commands connected lights to turn On/Off and Dim/Brighten. The dimmer switch can be remotely controlled when connected to a Zigbee automation hub, allowing it to be included in automated scenes and schedule when to adjust the lights. LED indicator lights on the left side and bottom of the switch display current and target light levels.

• Commands LEDs and CFLs up to 300W, Incandescents up to 600W, and MLVs up to 600VA
• Turn On/Off and Dim/Brighten connected lights locally or remotely via a compatible Zigbee hub
• Program individual or grouped lights to turn On/Off at scheduled times or as part of lighting or automated scenes
• Soft fade on/off
• Voice-control compatible with Amazon Alexa
• LED indicator light displays current and target light levels
• Compatible with Xfinity, Amazon Echo Plus, Echo Show (2nd Gen), and Echo Studio
• Supports wired multiway applications with the DD00R Dimmer Companion or DD0SR Switch Companion

Contents

• Zigbee 600W Dimmer
• Decora Wallplate, White

Notes

• Wireless operation requires a Zigbee automation controller, its associated mobile app, and an Internet connection.
• Requires a neutral wire connection.

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

• Manufacturer Part #: DG6HD-1BW
• UPC: 078477269848
• Color: White
• Ratings:
• LED/CFL – 300W – 120VAC, 60Hz
• Incandescent – 600W – 120VAC, 60Hz
• Neutral Required: Yes
• Termination: Wire Leads
• Voltage: 120VAC, 50/60Hz
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Operating Humidity: 0 to 90% non-condensing
• Certifications: UL, FCC, CSA, NOM, Zigbee 3.0
• Warranty: 5-Year Limited
