Leviton Decora Preset Countdown Timer Wall Switch (5, 10, 15, 30 Min)

Usually ships within 3-5 business days

SKU: LVLTB301LZ
$35.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Ideal For Heat Lamps, Hot Tubs, Exhaust/Attic Fans

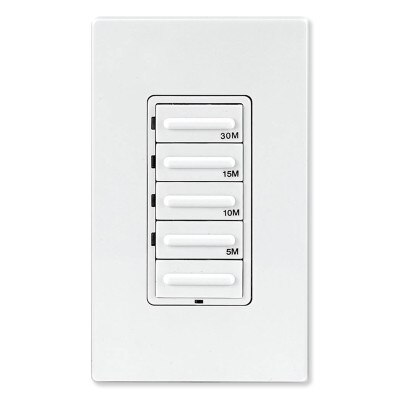

When you need a switched light or appliance to stay On for only 30 minutes or less, put it on a timer with the Leviton Decora Preset Countdown Timer Switch (30 Minute). This in-wall auto-Off timer replaces a standard wall switch to add four preset timer buttons (and an Off button). Choose from four different countdown options when turning the load On just by pressing the corresponding button. This 30-minute model counts down from 5, 10, 15, or 30 minutes.

As soon as your selected time runs out, the timer automatically turns the load Off. You can also override the timer anytime. To extend the load's On time, simply press and hold any timer button. To turn the load Off manually, press the Off button.

  • Choose from 4 countdown times with 4 preset buttons
  • 30-minute model counts down from 5, 10, 15, or 30 minutes
  • Press and hold timer button to extend On time
  • Replaces a standard wall switch (neutral required)
  • Suitable for single or 3-way applications

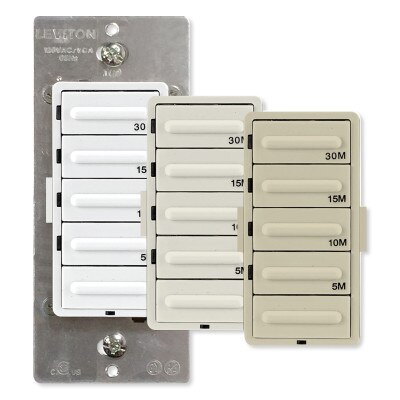

Available Colors: White faceplate installed. Light Almond and Ivory color change kits included.

The Timer indicates how much time is left through LEDs alongside each button. When you choose a countdown time, the LED next to that button lights up, as well as any LEDs below it. As time passes, the lights will go out. For example, if you press the 15Min button, the three LEDs next to the 5Min, 10Min, and 15Min buttons will light up. After 5 minutes pass, the 15Min LED will go out, while the 10Min and 5Min LEDs remain lit.

Contents

  • Preset Countdown Timer Switch, 30 Minute
  • White Faceplate
  • Ivory Faceplate
  • Light Almond Faceplate

Note: Neutral wire required.

Leviton Preset Timer Switches

Leviton Decora Timer Switches offer advanced features, superior accuracy and contemporary aesthetics. Their robust selection provides convenient timed control of lighting and motor loads in homes, offices, schools, hotel rooms and other small commercial applications. An easy upgrade, automatic timers help reduce energy costs, improve security and add convenience. Homeowners can set lights to turn on and off for a lived-in look while they are away, or automate control of heat lamps, pool pumps or bathroom fans. Leviton's versatile selection includes fully programmable and preset timers in popular styles and colors. All are backed by Leviton's long history of quality and reliability.

  • Manufacturer Part #: LTB30-1LZ
  • Max. Time: 30 minutes
  • Interval: 5-10-15-30 minutes
  • Load Rating:
    • Resistive: 20A (2400W)
    • Incandescent: 1800W
    • Inductive: 20A
    • Motor: 1HP
  • Power: 120 VAC, 60 Hz
  • Operating Temperature: 0° C to 40° C
  • Approvals: Complies with FCC Part 15, Class B; CSA Certified (File #152105); UL Listed
  • Warranty: 5-Year Limited
