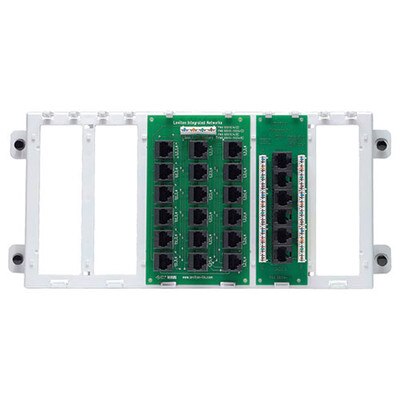

Leviton 4x18 Telephone Distribution Panel with Cat5e Board

Combines 4x18 Phone Board & 6-Port Cat5e Board

The Leviton 4x18 Telephone Distribution Panel with Cat5e Board combines a 4x18 Telephone Distribution Board and a 6-port Cat5e voice and data board in a space-saving mounting bracket. The telephone board distributes up to four phone lines through 18 RJ-45 connections, making it perfect for phone, fax, or modem applications. The Cat5e board features six Category 5e ports and six 110-IDCs to distribute voice and data service to six remote locations.

• 18 modular RJ-45 jack outputs
• 4-pair 110 type IDC inputs
• 6 Category 5e ports and 6 110-IDCs
• Fits into any Leviton Structured Media enclosure

The distribution panel includes a mounting bracket and easily fits into a Leviton Structured Media Enclosure (140, 280 or 420).

Contents

• Distribution Board
• Cat5e Board
• Mounting Bracket

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today’s residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

• Materials:
• Bracket: ABS plastic, white.
• Telephone Distribution Board: Printed circuit board with 18 8P8C jacks for 4-line distribution.
• Category 5e Voice and Data Board: Printed circuit board with 6 Category 5e ports and 6 110-IDCs.
• Dimensions:
• Bracket: 6.13(H) x 13.3(W) x 2.01(D) inches
• Telephone Distribution Board: 5.8(H) x 3.5(W) x .063(D) inches
• Category 5e Voice and Data Board: 5.75(H) x 1.75(W) x 0.63(D) inches
• Standards Compliance: cULus Listed; TIA/EIA-568A and FCC Part 68 compliant
• Warranty: 2 Year Limited

»Leviton 47603-8C1 4x18 Telephone Distribution Panel with Cat5e Board Specification (.pdf)
