Leviton Midsize QuickPort Wallplate, 1-Gang, 4-Port

SKU: LV410914x

Please Select Option To View Availability

$2.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Customize Your Own Multi-Media Wallplates With Mix & Match Components

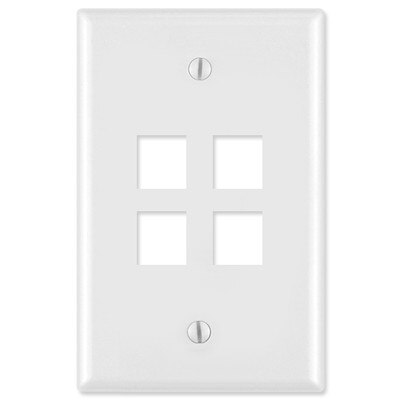

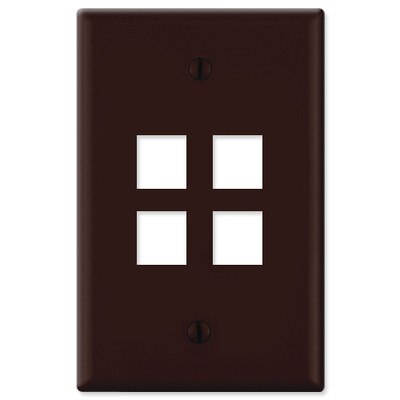

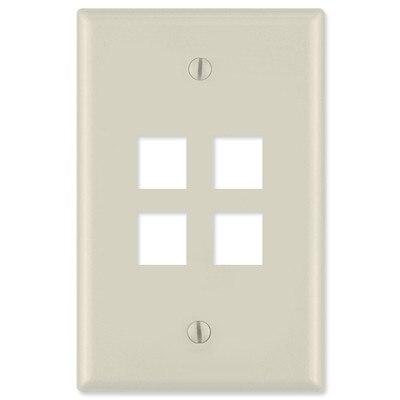

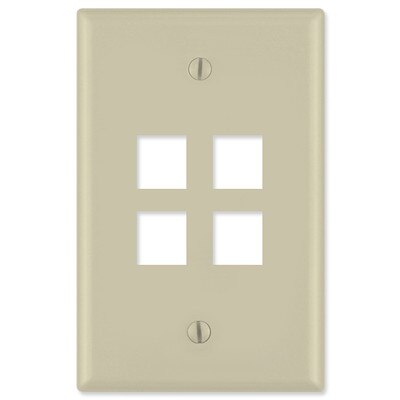

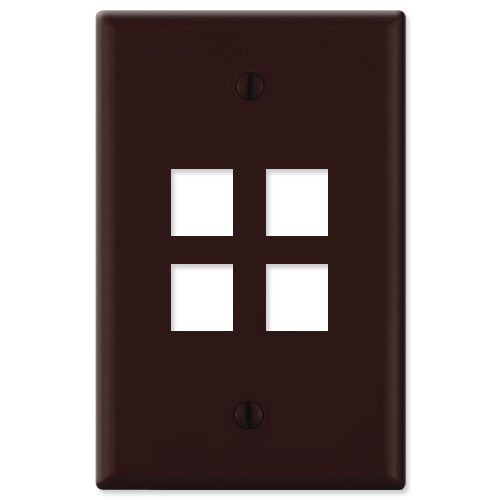

Leviton's Midsize Single-Gang QuickPort Wallplates offer field-configurable flexibility, accept all QuickPort Snap-in connectors and Adapters, and support a variety of commercial and residential applications. Midsize plates are 3/8" higher and wider than standard plates to help disguise irregular or oversize wall openings, resulting in a neat, professional finish.

  • 4-Port Multimedia Wallplate
  • 3/8" taller and wider than standard wallplates
  • Durable smooth finish nylon material
  • Color-matched wallplate screws
  • Compatible with all individual QuickPort modules
  • Individual port configurability allows specification flexibility
  • Narrow module width allows high port density in a small area

Leviton's QuickPort Family

The QuickPort system – Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes – allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort family of connectors is compatible in any QuickPort housing. This simple solution is ideal for any environment that has frequent moves, adds and changes.

Specifications

Design Considerations

  • Fits single-gang back boxes, or four-square boxes with appropriate user-provided reducer
  • Put QuickPort blanks in unused ports for future expansion

Technical Details

  • Dimensions: 4.88" H x 3.13 " W x .26" D (in-wall depth 1.2" with connectors installed)
  • Materials: High-impact, fire-retardant plastic rated UL 94V-0
  • Compliance: Meets or exceeds all applicable standards: cULus Listed; complies with TIA-568-C.
