Kwikset SmartCode 916 Z-Wave Plus Touchscreen Deadbolt, Gen5

SKU: KW99160021

Huge Savings! (All Sales Final.)

Please Select Option To View Availability

$151.00 $242.99

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov


Communicate With Your House Using Z-Wave Plus

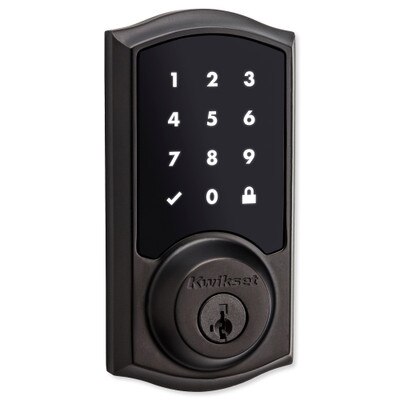

Secure your home with a smart lock by installing the Kwikset SmartCode 916 Z-Wave Plus Touchscreen Deadbolt. It features a 10-digit touchscreen for coded entry, as well as Z-Wave technology to communicate with other Z-Wave devices in your home. When you arrive home, punch in your code to unlock the door and automatically set up your home just the way you like it. Z-Wave also supports remote control, so you can lock/unlock your door from anywhere in the world!

  • Lock/unlock door via touchscreen keypad, remote, or turnkey
  • SecureScreen helps ensure codes can't be identified by fingerprints on screen
  • BumpGuard prevents lock bumping (picking)
  • SmartKey Re-key Technology allows you to re-key the lock yourself in seconds
  • Z-Wave Plus certified with Z-Wave 500 chipset, extends wireless range and provides superior wireless encryption
  • Tapered deadbolt enables misaligned doors to lock without pulling or pushing the door shut
  • Works with Amazon Alexa via Samsung SmartThings and/or Wink

The Kwikset SmartCode 916 Z-Wave Plus Touchscreen Deadbolt is designed to allow fast code entry with a touchscreen that's exceptionally responsive, detecting every touch. With just the touch of your fingertip, you can "wake up" the touchscreen, then immediately type in your entry code and listen to the door automatically unlock! The cool white LED display provides crisp LED illumination for easy use in the dark.

916 Series Features

The wireless Kwikset SmartCode 916 Series Z-Wave Plus Touchscreen Electronic Deadbolt supports up to 30 different user access codes, allowing family, friends, and temporary guests to enter their own codes and benefit from personalized Z-Wave settings (if connected to a Z-Wave network). Codes are easily created and deleted, so you can give temporary access to housesitters, maintenance workers, etc. Also featured in the 916 Series is the MasterCode option, which allows you to give one user complete control over the system and prevent other users from adding or deleting codes.

The deadbolt operates on a one-touch motorized locking mechanism to enable remote locking and unlocking. Use a Z-Wave controller or a smartphone app to lock/unlock your door from anywhere.

A backup keyway allows you to lock/unlock the door manually with a turnkey, the same way you would use a key with a traditional deadbolt. To protect against lock bumping (type of lock picking), the Kwikset SmartCode 916 Touchscreen Electronic Deadbolt features BumpGuard, a patented side locking bar that replaces the traditional pin and tumbler locking mechanism.

Additionally, the Kwikset SmartCode 916 Touchscreen Electronic Deadbolt's tapered design offers enhanced compatibility with misaligned doors. Even if your door is a little off kilter, you will be able to lock the deadbolt without having to pull and push the door repeatedly to shut it.

SmartCode Electronic Locks

With your own personal code, you can enter your home with just a few simple pushes of a button and lock it with just one. You also get more control over who has access to your home. Just assign a temporary code and delete it when you see fit. Now you can totally eliminate the need for keys. SmartCode is easy to install, program and use and operates on 4 AA batteries.

Home Connect Technology

Kwikset's Home Connect Technology allows your front door lock to talk to other smart devices in your house, such as the security system, lighting, thermostat and entertainment system – all through wireless Z-Wave.

A new, smarter way to connect to your home:

  • Lock or unlock doors with a mobile device or secure Internet connection
  • Check lock status remotely
  • Receive notification and/or video of who enters your home
  • Remotely add or delete access codes

Integrate with security systems:

  • Lock doors when system is armed
  • Disarm Security System when door is unlocked
  • Communicate door lock status

Integrate with home control systems:

  • Lock doors with handheld remote, touch screen or smartphone
  • Customize lighting scenes upon unlocking the main entry door or garage entry door
  • Ability to limit access for users to specific times and/or days of the week
  • Ability to provide temporary access to friends and house sitters

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.


  • Kwikset 916 Series Deadbolt
  • (2) Keys
  • (4) AA Batteries
  • Installation Hardware
  • User Manual


  • Requires a Z-Wave network controller (sold separately).
  • Do not use an electric drill or an electric screwdriver to tighten screws.

The Best Security Is Smart Security

An established leader in lock technology, Kwikset is widely recognized for providing families security and peace of mind with high quality door locks and door hardware. No more worrying about keys! The convenience of keyless technology is now available at your fingertips.


Product Features

The Smart Approach to Home Security:

  • Replaces existing door hardware with a screwdriver
  • No hard wiring needed
  • Z-Wave wireless protocol
  • BHMA Grade 2 Certified
  • 20 Minute Fire Rating – UL Certified
  • Full 128-bit encryption security

Technical Details

  • Manufacturer Part #:
    • Polished Brass: 99160-019
    • Satin Nickel: 99160-020
    • Venetian Bronze: 99160-021
  • Input Power: 6V (4 x AA alkaline batteries)
  • Wireless Protocol (Frequency): Z-Wave 908.42 MHz (U.S.)
  • Door Prep: 2-1/8 inches diameter face hole and 1 inch diameter latch hole
  • Backset: Adjustable to 2-3/8 or 2-3/4 inches
  • Door Thickness: Automatic adjustment 1-3/8 to 2-1/8 inches
  • Cylinder: SmartKey Re-Key Technology
  • Faceplate: Round corner standard 1 x 2-1/4 inches
  • Strikes: Round corner strike 2-3/4 x 2-1/8 inches
  • Latch: Round corner adjustable 2-3/8 x 2-3/4 inches
  • Bolt: 1 inch throw, steal deadbolt
  • Door Handing: Reversible
  • Warranty: Lifetime mechanical and finish warranty; 1 year electronics warranty
