Kwikset Obsidian Z-Wave Plus Touchscreen Deadbolt, Gen5

Communicate With Your House Using Z-Wave Plus

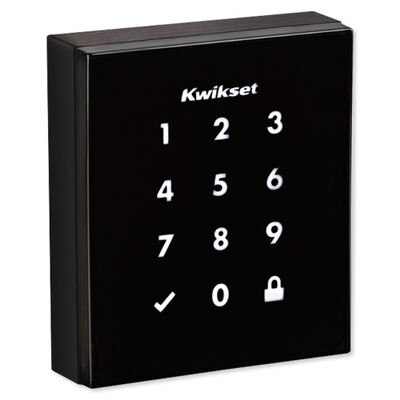

Secure your home with a smart lock by installing the Kwikset Obsidian Z-Wave Plus Touchscreen Deadbolt. This deadbolt has an attractive modern design with a glass-like surface. It features a 10-button backlit keypad with one-touch locking for coded entry, as well as Z-Wave technology to communicate with other Z-Wave devices in your home. When you arrive home, punch in your code to unlock the door and automatically set up your home just the way you like it. Z-Wave also supports remote control, so you can lock/unlock your door from anywhere in the world!

• Lock/unlock door via keypad or remote
• Z-Wave Plus certified with Z-Wave 500 chipset, extends wireless range and provides superior wireless encryption
• SecureScreen Patented technology helps prevent code detection from fingerprints on the touchscreen
• Keyless entry means no more keys to carry and no keyway to pick or bump
• Use a 9V battery as backup power in case the batteries run out
• Easy installation, no wiring needed

Obsidian Series Features

The wireless Obsidian Series Z-Wave Plus Deadbolt supports up to 30 different user access codes, allowing family, friends, and temporary guests to enter their own codes and benefit from personalized Z-Wave settings (if connected to a Z-Wave network). Codes are easily created and deleted, so you can give temporary access to housesitters, maintenance workers, etc. Plus, the Obsidian Series also provides a MasterCode option, which allows you to give one user complete control over the system and prevent other users from adding or deleting codes.

The deadbolt operates on a one-touch motorized locking mechanism to enable remote locking and unlocking. Use a Z-Wave controller or a smartphone app to lock/unlock your door from anywhere.

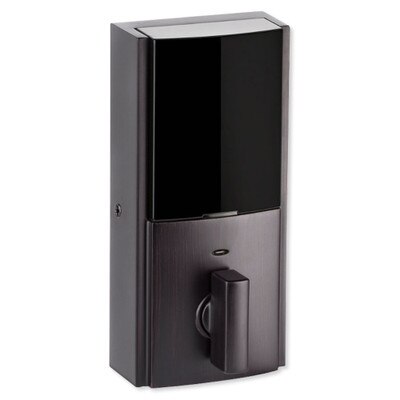

Additionally, the Obsidian deadbolt has a tamper-resistant interior cover to prevent unauthorized access to programming buttons. It also has a code alarm feature, which automatically sounds the alarm after three incorrect codes are consecutively entered, locking out the screen temporarily.

SmartCode Electronic Locks

With your own personal code, you can enter your home with just a few simple pushes of a button and lock it with just one. You also get more control over who has access to your home. Just assign a temporary code and delete it when you see fit. Now you can totally eliminate the need for keys. SmartCode is easy to install, program and use and operates on 4 AA batteries.

Home Connect Technology

Kwikset's Home Connect Technology allows your front door lock to talk to other things in your house, such as the security system, lighting, thermostat and entertainment system – all through wireless Z-Wave.

A new, smarter way to connect to your home:

• Lock or unlock doors with a mobile device or secure Internet connection
• Check lock status remotely
• Receive notification and/or video of who enters your home
• Remotely add or delete access codes

Integrate with security systems:

• Lock doors when system is armed
• Disarm Security System when door is unlocked
• Communicate door lock status

Integrate with home control systems:

• Lock doors with handheld remote, touch screen or smartphone
• Customize lighting scenes upon unlocking the main entry door or garage entry door
• Ability to limit access for users to specific times and/or days of the week
• Ability to provide temporary access to friends and house sitters

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

• Kwikset Obsidian Z-Wave Plus Touchscreen Deadbolt
• (4) AA Batteries
• Installation Hardware
• User Manual

Notes

• Requires a Z-Wave network controller (sold separately).
• Do not use an electric drill or an electric screwdriver to tighten screws.

The Best Security Is Smart Security

An established leader in lock technology, Kwikset is widely recognized for providing families security and peace of mind with high quality door locks and door hardware. No more worrying about keys! The convenience of keyless technology is now available at your fingertips.

Product Features

• Replaces existing door hardware with a screwdriver
• No hard wiring needed
• Z-Wave wireless protocol
• BHMA Grade 2 certified
• Full 128-bit encryption security

Technical Details

• Manufacturer Part #:

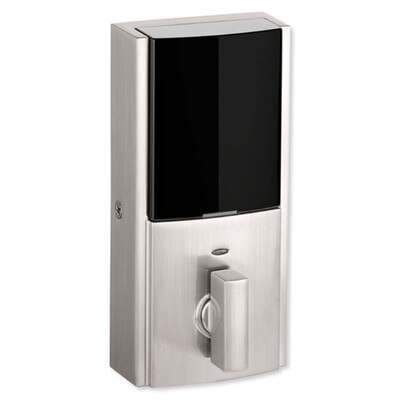

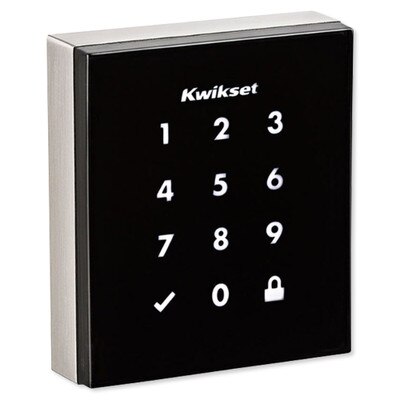

• Satin Nickel: 99540-001
• Venetian Bronze: 99540-002
• Input Power: 6V (4 x AA alkaline batteries)
• Wireless Protocol (Frequency): Z-Wave 908.42 MHz (U.S.)

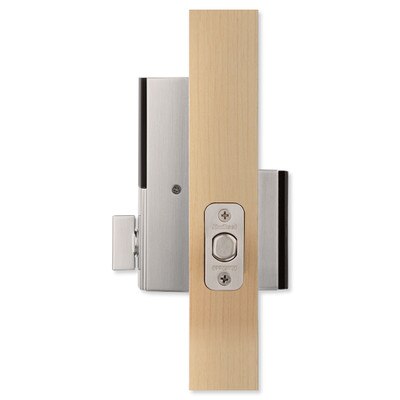

• Door Prep: 1-1/2 and 2-1/8 inches diameter face hole and 1 inch diameter latch hole
• Backset: Adjustable to 2-3/8 or 2-3/4 inches
• Door Thickness: 1-3/8 to 2 inches
• Faceplate: Round corner standard 1 x 2-1/4 inches
• Strikes: Round corner 1-1/8 x 2-3/4 inches
• Latch: Round corner adjustable 2-3/8 x 2-3/4 inches
• Bolt: 1 inch throw, steal deadbolt
• Door Handing: Reversible
• Warranty: Lifetime mechanical and finish warranty; 1 year electronics warranty
