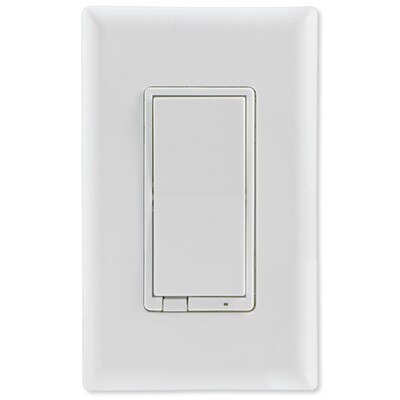

Jasco Z-Wave Plus In-Wall Smart Fan Control, Gen5

Remote Z-Wave Control For Your Ceiling Fan

Add Z-Wave Plus remote control to your ceiling fan with the Jasco 14314 Z-Wave Plus In-Wall Smart Fan Control (U.S). Replace your existing indoor fan control with this smart switch to include remote Z-Wave control. Once the switch is wired in, you can turn the fan On/Off and choose from three speed levels (High, Medium, Low) locally or remotely with your Z-Wave controller. The switch has a built-in signal repeater to strengthen and extend the range of your Z-Wave wireless network.

• 3-speed and On/Off fan control locally & with Z-Wave controller
• LED indicates fan speed and points out the switch in the dark
• Inclusion into scenes or scheduled events
• Optional voice control with Amazon Alexa via compatible smart hubs

The Jasco 14314 Z-Wave Plus In-Wall Smart Fan Control supports single-way or multi-way applications, and works in conjunction with up to three auxiliary switches (sold separately).

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

NOTE: Requires a Z-Wave network controller. Wallplate not included. Not rated for outdoor use. Requires Line (Hot), Load, Neutral and Ground wires. Traveler wire required for multi-way applications. Controls fan motors only.

Jasco: Leader And Innovator In Electronics

Established in 1975, Jasco Products is a leader in the design and development of home automation products and wireless accessories. Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).

• Manufacturer Part #: 14314
• Power: 120 VAC, 60Hz
• Signal Frequency: Z-Wave Plus - 908.42 MHz (U.S.)
• Maximum Load: 1.5 Amps.
• Range: Up to 150 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
• Operating Temperature: 32 to 104 degrees F
• Environmental Conditions: For indoor use only
• Approvals: UL/cUL Listed. Complies with FCC and Industry Canada regulations.

»Jasco 14314 In-Wall Wirelss Smart Fan Control Installation Manual (.pdf)
