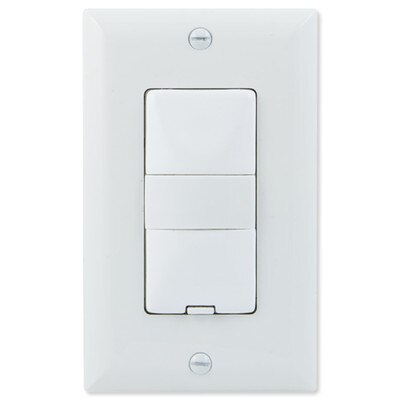

Jasco Z-Wave Plus Motion Sensor Dimmer Wall Switch (Gen5)

SKU: JA26932

Huge Savings! (All Sales Final.)

9 available at this price.

$47.41 $59.04

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Z-Wave Dimmer with Vacancy/Occupancy Sensing

Save energy while enjoying Z-Wave control of your dimmable wired light fixture by replacing your traditional dimmer switch with the Jasco Z-Wave Plus Motion Sensor Dimmer Wall Switch (Gen5). This Z-Wave light dimmer has a built-in PIR motion sensor to serve as a vacancy or occupancy sensor, automatically turning the light off when the room is empty. You can also manually turn the light on/off and adjust dim settings through your Z-Wave controller or using the local button switch. A blue LED indicator helps guide you to the switch through the dark.

  • Works with dimmable incandescent, CFL, and LED lights
  • Sensor can be set to occupancy, vacancy, or manual mode
  • Suitable for single-pole or multi-pole applications
  • Can be included in multiple groups or scenes
  • "Z-Wave Plus" certified for wide compatibility
  • Uses a standard decorative-size wallplate (sold separately)

The switch's motion sensor can be set to occupancy mode, vacancy mode, or manual mode. In vacancy mode, a person has to manually turn the light on, but the light will turn off after the room has become vacant (no motion detected). In occupancy mode, the light automatically turns on when a person enters the room and also optionally only if the room is dark, and automatically turns off when the room becomes vacant. In manual mode, the motion sensor does not come into play and lights must be turned on/off manually, either at the button switch or via Z-Wave.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Installation Details

The Z-Wave Plus Motion Sensor Dimmer Wall Switch works with incandescent lights (up to 600 Watts for 1-gang, 500 Watts for 2-gang, or 400 Watts for 3-gang), as well as CFLs and LEDs up to 150 Watts. The switch supports single-pole or multi-pole applications, and works in conjunction with up to three aux/remote switches (requires the toggle or rocker-style Jasco Z-Wave Auxiliary Switch, sold separately). This model can also be included in multiple zones/scenes.

The switch requires standard screw terminal installation with wiring connections for Line (Hot), Load, Neutral, and Ground. Multi-pole installation also requires a traveler wire.

NOTE: Requires a Z-Wave network controller. Wallplate not included. Uses standard single-gang wallplate. For indoor use only. Not compatible with fluorescent, xenon, or halogen lights. Does not support motor loads.

Jasco: Leader And Innovator In Electronics

Established in 1975, Jasco Products is a leader in the design and development of home automation products and wireless accessories. Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).

Specifications

  • Manufacturer Part #: 26932
  • Power: 120VAC, 60Hz
  • Signal (Frequency): 908.42 MHz (U.S.)
  • Protocol: Z-Wave Plus
  • Maximum Loads: 1-gang 600W, 2-gang 500W or 3-gang 400W incandescent, 150W CFL/LED
  • Wireless Range: Up to 150 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
  • Operating Temperature Range: 32° to 104°F (0° to 40°C)
  • Environmental: For indoor use only.
  • Approvals: FCC, IC
  • Warranty: 2 Years

This Z-Wave device has advanced features that allow you to customize your experience. These features can be adjusted by a Z-Wave enabled controller that supports the Z-Wave Configuration command class.
