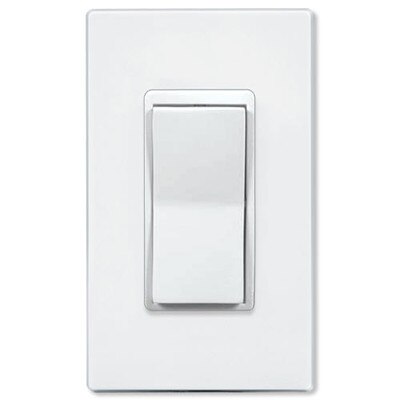

Jasco Z-Wave Auxiliary/Remote Wall Switch
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
DEALER ONLY ITEM: Not Available Directly to End Users.
Dealers, log on to see pricing. »Sign up to become an authorized installer.
Used With A Main Jasco Switch
You can create a 3-way or 4-way switch by combining the Jasco Add-On Auxiliary Switch with a main Jasco light switch. This add-on On/Off switch is compatible with any Jasco In-Wall Smart Switches, including Z-Wave or Zigbee models. When used in conjunction, these auxiliary switches allow you to control one load with multiple switches, up to 6-way operations. This Jasco switch is perfect for hallways, staircases, or other areas where multiple switches would add convenience.
- Supports up to 6-way wiring configurations when used with other Jasco Z-Wave or Zigbee switches
- Requires wiring connections: Neutral, Traveler and Ground

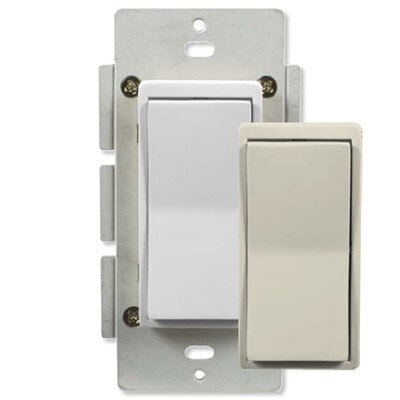

- Includes interchangeable paddles
The Jasco Add-On Auxiliary Switch includes QuickFit and SimpleWire features:
QuickFit switches are 20% smaller than older switch models with no break-off tabs to remove, which makes them ideal for older-style switch boxes, multi-gang configurations, or any other application with limited space.
SimpleWire features include auto-detecting line/load terminals, which simplifies installation by detecting line and load wires and configuring the dimmer accordingly.
Notes
- Not for direct control of loads.
- Wallplate not included. Uses standard single-gang wallplate.
- For indoor use only.
Jasco: Leader & Innovator In Electronics
Established in 1975, Jasco Products is a leader in the design and development of home automation products and wireless accessories. Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).
Specifications
- Manufacturer Part #: 46560
- UPC: 030878465601
- Power: 120 VAC, 60 Hz
- Environmental Conditions: For indoor use only.
- Operating Temperature Range: 32 to 104° F (0 to 40° C)
- Approvals: UL Listed
- Warranty: 2 Year
