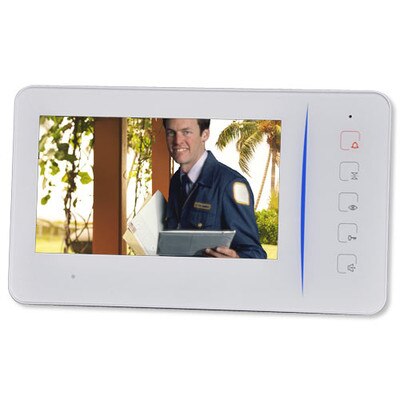

IST Video Door Intercom Monitor

Add-On Monitor for IST Video Door Intercoms

When you add an extra IST Video Door Intercom Monitor to your IST Video Door Intercom System, you can answer your door from another location and enable room-to-room intercom communication between monitors.

• Monitor displays color video of visitors
• Adjustable brightness, contrast, volume
• Protrudes out only 7/8" from the wall
• Optional support for door release mechanism
• System supports four monitors total

This monitor works just like your original Intercom Monitor; you can see visitors, speak with visitors, and unlock an optional door release mechanism. Furthermore, by integrating multiple monitors into one system, you will create a room-to-room intercom system, which allows communication not only between a monitor and the Door Station, but also between different monitors.

Versatile Installation

The add-on Intercom Monitor wires into the system with the included 30-foot cable. If you need a longer connection, you can connect the components using 4 conductor, 20 AWG minimum wire (sold separately) up to 400 feet.

Expandable System

The IST Video Door Intercom System supports up to four Intercom Monitors and four Door Stations total. You can also unlock your door through any Intercom Monitor if you install the optional IST Door Release Mechanism (sold separately).

Contents

• Door Intercom Monitor
• Cable, 30 Feet
• Power Supply
• Installation Hardware

NOTE: Requires at least one IST Video Door Intercom Door Station (VIDOOR, sold separately).

IST Takes You Inside Your Sound

Since 2005, IntraSonic Technology (IST) has been enriching the residential audio experience by manufacturing robust yet easy-to-use home audio systems. The IST product line offers a premium home audio selection, including music distribution systems, video door intercom systems, and associated accessories. Envelop yourself "inside your sound" with IntraSonic Technology.

• Manufacturer Part #: V18MONITOR
• Display: 6-Inch TFT-LCD
• Video Output: 1Vpp / 75 Ohm
• Cable: 4 Conductor 20AWG Minimum (included)
• Distance: 400 feet, system total, first monitor to last
• Power: DC18 Volts ±10 percent
• System Current:<1A
• Input Voltage: 110VAC
• Approvals: FCC
• Warranty: 2 Year Limited
