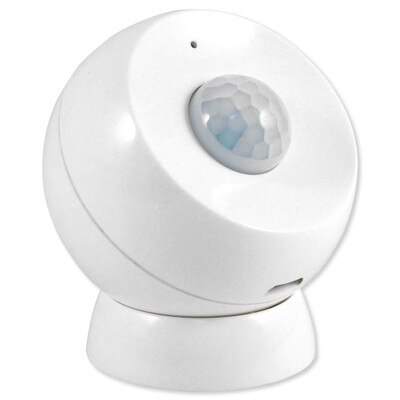

HomeSeer Z-Wave Plus Motion Sensor

Simple Mounted Motion Sensor with Built-In Shock Sensor

The HomeSeer Z-Wave Plus Motion Sensor (U.S.) monitors movement and activity in a room and reports directly to your home automation controller (sold separately). The motion sensor informs you of activity in a room or zone while you are away and can be used to trigger home automation events when it is triggered. The motion sensor can also be programmed to control wall switches or plug-in modules when motion is detected or after long periods of inactivity.

• Detects movement and/or inactivity within a room
• Integrates into Z-Wave automation system to trigger lights, devices, or events
• Powered by included battery or USB adapter
• Built-in shock and battery life sensors
• 300 feet line of sight range

Installation Details

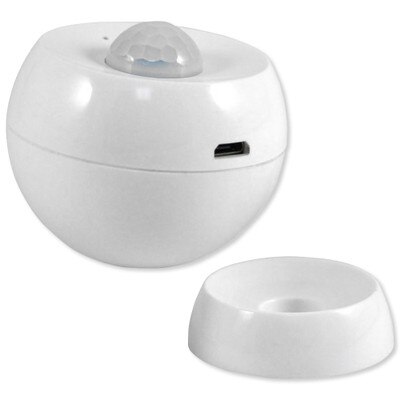

The Z-Wave Plus Motion Sensor is battery powered or can alternatively be powered with a USB adapter (not included). Adhere the magnetic mount to your selected location with the included double-sided adhesive tape or installation screws. Place the sensor in the mount with the lens pointing at the location you wish to monitor.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

• Motion Sensor
• (1) CR123A Battery
• Magnetic Mount
• Adhesive Tape
• Installation Screws

NOTE: Sensor requires a certified Z-Wave hub or controller to operate (sold separately).

Home Automation For Your Life And Family

HomeSeer can be used to monitor and control lighting, appliances, climate, security, telephones, irrigation, window shades and home entertainment equipment. Then mix and match any combination of interfaces you like to suit the needs of your family. Control the system with your choice of in-wall button controllers, touchscreens, wireless remotes, microphones, mobile devices, standard telephones (voice and touch-tone control), and personal computers.

All HomeSeer home automation systems are web-enabled to allow access to your home while you're away at work or on vacation. Easily keep tabs on your home and family using any web browser from anywhere. Receive emails or calls when things happen at home or people come and go.

Now, with HomeSeer home automation, you can finally have the peace of mind that comes from knowing your family is safe and secure and your home is operating at peak efficiency!

• Manufacturer Part #: HS-MS100
• UPC: 757347266292
• Z-Wave Frequency: 908.42 MHz (U.S.)
• Range: Up to 300 feet line of sight
• Power: 1 CR123A Battery
• Operating Temperature Range: 32° to 104° Fahrenheit (0° to 40° Celsius)
• Dimensions: 2 x 2 x 2 inches
• Certification: Z-Wave Plus
• Warranty: 1 Year

»HomeSeer HS-MS100+ Z-Wave Motion Sensor Installation Manual (.pdf)
