HomeSeer Z-Wave Plus Leak Sensor, Gen5

Reliable Environmental Reporting

The HomeSeer Z-Wave Plus Leak Sensor (U.S.) monitors hard to reach areas for leaks and excess moisture and reports directly to your home automation controller (sold separately). When the sensor detects moisture through its probe cable it can notify its connected automation controller to sound an alarm, shut off a water valve (additional equipment required), and inform you of the leak. The sensor can also be programmed to send regular status updates to the automation controller to notify you of the amount of time no water has been detected.

• Detects leaks and moisture in hard to reach areas with probe cable
• Works with most certified Z-Wave controllers
• Built-in shock and battery life sensors
• 300 feet line of sight range

Installation Details

The Z-Wave Plus Leak Sensor is battery powered. It can either be placed free standing in a desired location or remotely mounted to a surface and have its wired probe installed in the designated area. If you wish to remote mount the sensor, adhere the magnetic mount to your selected location with the included double-sided adhesive tape or installation screws, attach the sensor to the mount, connect the wired probe to the sensor, and place the probe in the selected area where leaks might occur.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

• Leak Sensor
• Lithium Battery

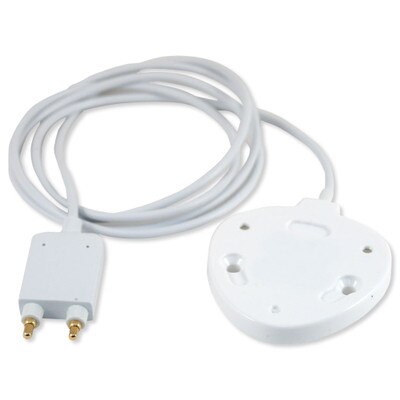

• Magnetic Wall Mount with Cable Probe
• Mounting Hardware
• User Guide

NOTE: Sensor requires a certified Z-Wave hub or controller to operate (sold separately). Additional equipment is required to control a valve.

Home Automation For Your Life And Family

HomeSeer can be used to monitor and control lighting, appliances, climate, security, telephones, irrigation, window shades and home entertainment equipment. Then mix and match any combination of interfaces you like to suit the needs of your family. Control the system with your choice of in-wall button controllers, touchscreens, wireless remotes, microphones, mobile devices, standard telephones (voice and touch-tone control), and personal computers.

All HomeSeer home automation systems are web-enabled to allow access to your home while you're away at work or on vacation. Easily keep tabs on your home and family using any web browser from anywhere. Receive emails or calls when things happen at home or people come and go.

Now, with HomeSeer home automation, you can finally have the peace of mind that comes from knowing your family is safe and secure and your home is operating at peak efficiency!

• Manufacturer Part #: HS-LS100
• Z-Wave Frequency: 908.42 MHz (U.S.)
• Range: Up to 300 feet line of sight
• Power: (1) ER14250 Battery
• Operating Temperature Range: 32° to 104° Fahrenheit (0° to 40° Celsius)
• Dimensions: 2.75 x 2.75 x .75 inches
• Certification: Z-Wave Plus
• Warranty: 1 Year

»HomeSeer HS-LS100+ Z-Wave Leak Sensor Installation Manual (.pdf)
