HomeSeer Z-Wave Plus Indicator Light Sensor, Gen5

Trigger and Notify Your Z-Wave Devices

The HomeSeer Z-Wave Plus Indicator Light Sensor is a Z-Wave multi-sensor capable of triggering Z-Wave devices or scenes and emitting audio alerts when it detects changes in light or temperature. This multi-part sensor module consists of the main sensor body that contains the temperature and the Z-Wave buzzer and the indicator light sensor cable. When either sensor's parameters are triggered, they will alert your Z-Wave network of the change of status.

• Z-Wave multi-sensor module detects temperature & light and emits audio alerts
• Z-Wave buzzer can be programmed to activate when the sensors are triggered or to relay Z-Wave alarms
• Temperature sensor sends alerts when a monitored subject reaches a certain temperature
• Light sensor notifies your Z-Wave network when indicator lights on devices flash On/Off
• Powered with 3 AAA batteries or via microUSB wired connection

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

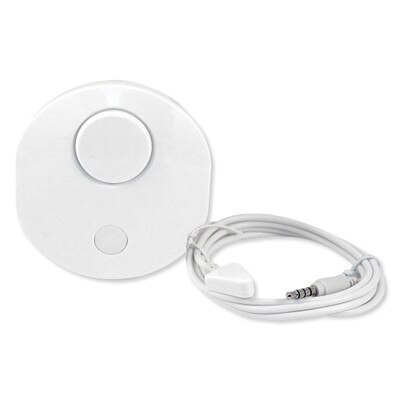

Contents

• Temperature Sensor and Buzzer
• Indicator Light Sensor

Notes

• Sensor requires a certified Z-Wave hub or controller to operate (sold separately).
• Batteries and wired power supply not included. Acts as a Z-Wave repeater when line-powered.

Home Automation For Your Life And Family

HomeSeer can be used to monitor and control lighting, appliances, climate, security, telephones, irrigation, window shades and home entertainment equipment. Then mix and match any combination of interfaces you like to suit the needs of your family. Control the system with your choice of in-wall button controllers, touchscreens, wireless remotes, microphones, mobile devices, standard telephones (voice and touch-tone control), and personal computers.

All HomeSeer home automation systems are web-enabled to allow access to your home while you're away at work or on vacation. Easily keep tabs on your home and family using any web browser from anywhere. Receive emails or calls when things happen at home or people come and go.

Now, with HomeSeer home automation, you can finally have the peace of mind that comes from knowing your family is safe and secure and your home is operating at peak efficiency!

• Manufacturer Part #: HS-F100-L
• Operating Temperature Range: 0°C to 40°C (32°F to 104° F)
• Power Supply: (3) AAA 1.5V Batteries or microUSB power adapter
• Z-Wave Frequency: 908 MHz (US)
• Z-Wave Range: Up To 300 Ft line of sight
• Z-Wave Certification: Z-Wave Plus
• Dimensions:
• Main Unit: 3 (H) x 3 1/8 (W) x 7/8 (D) inches
• Light Cable: 4 feet
• Warranty: 1-Year Limited
