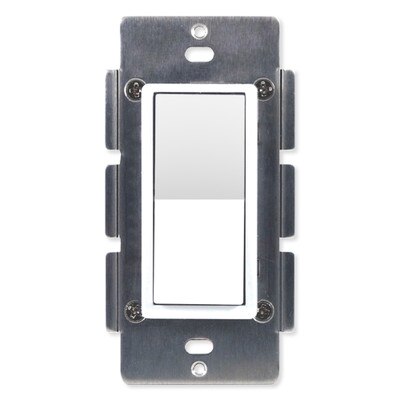

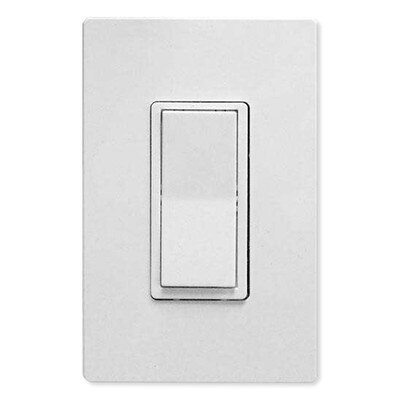

HomeSeer Wired 3-Way Companion Switch

Create a Multi-Way Z-Wave Switch

Perfect for creating a multi-way switch in stairways or hallways, the HomeSeer Wired 3-Way Companion Switch works with the HS-WS100+, HS-WD100+, HS-WD200+, and HS-WS200+ wall switches and dimmers to provide multi-location control over the main switch's/dimmer's connected load.

• Works with main HomeSeer Z-Wave wall switches/dimmers
• Supports 3-way, 4-way, or 5-way wiring configurations
• Compatible with 2-tap, 3-tap, press and hold features
• Requires wiring connections: Neutral, Traveler and Ground

NOTE: Not for direct control of loads; requires at least one HS-WS100+, HS-WD100+, HS-WD200+, or HS-WS200+, sold separately. Wallplate not included. Uses standard single-gang wallplate. For indoor use only.

Home Automation For Your Life And Family

HomeSeer can be used to monitor and control lighting, appliances, climate, security, telephones, irrigation, window shades and home entertainment equipment. Then mix and match any combination of interfaces you like to suit the needs of your family. Control the system with your choice of in-wall button controllers, touchscreens, wireless remotes, microphones, mobile devices, standard telephones (voice and touch-tone control), and personal computers.

All HomeSeer home automation systems are web-enabled to allow access to your home while you're away at work or on vacation. Easily keep tabs on your home and family using any web browser from anywhere. Receive emails or calls when things happen at home or people come and go.

Now, with HomeSeer home automation, you can finally have the peace of mind that comes from knowing your family is safe and secure and your home is operating at peak efficiency!

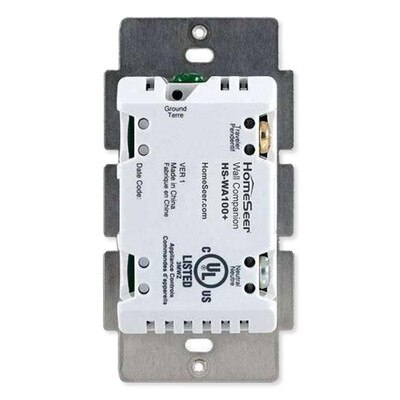

• Manufacturer Part #: HS-WA100+
• Power: 120 VAC, 60 Hz
• Wiring: Copper 12-14 AWG neutral and traveler wire required
• Size: 1-gang
• Approvals: UL
• Warranty: 1-Year Limited

»HomeSeer HS-WA100+ Wall Companion Installation Manual (.pdf)
