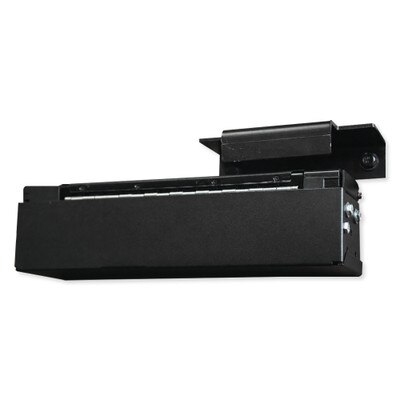

HAVEN LockDown BLE

Smarter, Stronger Way To Stop An Active Threat Via Bluetooth

Lock your room within seconds to prevent an active threat from entering your room with the HAVEN LockDown BLE (for inward or outward doors). This smart lock installs on a commercial door with a standard 2-inch frame and works via Bluetooth technology. This allows teachers, administrators, and other office personnel quick access control for locking down doors and other access points using a smartphone, keyfob, or manually when needed.

• Locks commercial doors via Bluetooth within seconds

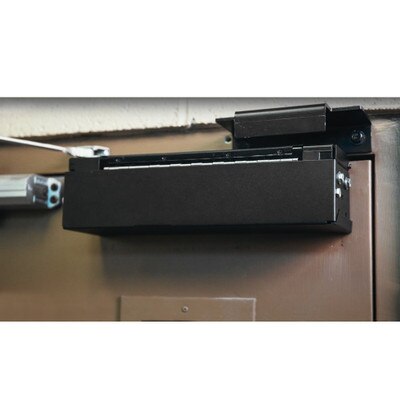

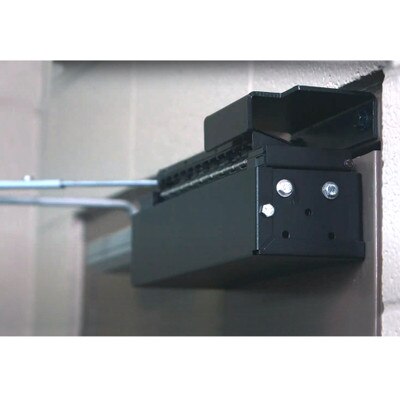

• Installs on top of a commercial door (inward or outward) with a 2" frame
• Locks/unlocks with a key fob, smartphone, or manual operation
• 10x stronger than conventional locks
• Long-lasting internal rechargeable LiPo battery
• Made with military-grade materials with government-level encryption

HAVEN Lockdown is constructed with military-grade materials and uses government-level encryption to ensure access to all connected locks is well protected. It features a long-life internal rechargeable LiPo battery, is 10x stronger than conventional locks, and is one motion unlock compliant. It's also designed to meet ADA, Fire, Code, and Safety Regulations and is FCC, IC, Bluetooth, and UL tested.

The HAVEN Lockdown is made with a patented wedge lock design and mounts permanently on top of a standard commercial door. Administrators, teachers, and other office personnel can use a keyfob to activate the lock in less than a second with the touch of a button. You can also use the HAVEN Lockdown app for iOS and Android devices to lock or unlock the door using your smartphone, and the app will also notify you when the power is low so you can recharge the battery. Additionally, the lock is designed to allow you to mechanically activate or deactivate the lock using your hand, plus, HAVEN offers lockdown accessories such as a Panic Button and Motion Sensor (both sold separately) as other lock/unlock options.

HAVEN Lockdown Main Components

• Bottom Plate: Made out of stamped steel, it provides the core strength of the lock.
• Top Portion: The lock's top portion is constructed out of Dupont industrial plastic and triple-stitched nylon, which is woven through the industrial plastic locking gate. As the door is attacked, this design creates extreme resistance and allows give to the door as it's attacked.
• Mounting Bracket: HAVEN Lockdown materials were selected for strength, reliability, and durability, which is why the bracket is made out of steel to hold the lock firmly in place.
• HAVEN App and Key Fob: Created with military-level encryption, only pre-authorized users will have access control of the lock. Plus, the robust security measures built into the HAVEN App easily match the strength of the lock for optimal security against intrusions.

Contents

• HAVEN LockDown BLE
• Mount
• Key Fob
• Egress Button

HAVEN Lockdown: Keeping You Safe From Intruders

HAVEN Lockdown is specifically designed to keep active threats from entering your property. Constructed out of military-grade materials and government level encryption, HAVEN Lockdown integrates one motion access control with smart functionality so schools, office buildings, hospitals, churches, and other buildings with commercial doors are well-secured to keep dangerous intruders at bay.

• Manufacturer Part #: HL1-CNT-001-LD
• UPC: 866198000495
• Protocol: Bluetooth
• Access Control:
• Key Fob
• Mobile App
• Manual Operation
• Egress button
• Panic button
• Power: Internal rechargeable LiPo battery
• Range: 20 to 60 feet, depending on the walls
• Installation: Fits commercial doors with a standard 2" frame
• Dimensions: 4.1(W) x 4.5(H) x 15.5(L) inches (104 x 114 x 394mm)
• Certifications: FCC, IC, Bluetooth, UL
• Warranty: 2 Years
