HAVEN Internal Frame Sliding Door Kit

Reliable Security For Your Sliding Glass Door Entryway

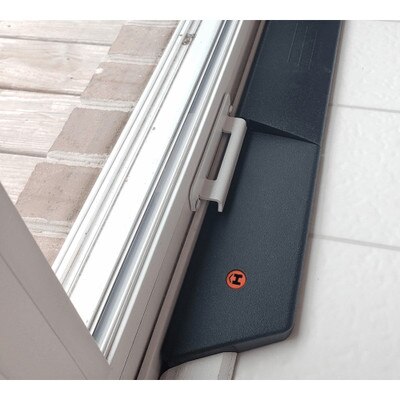

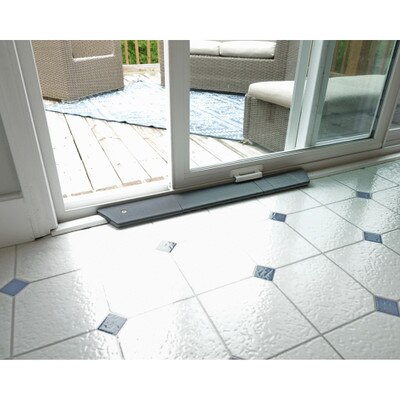

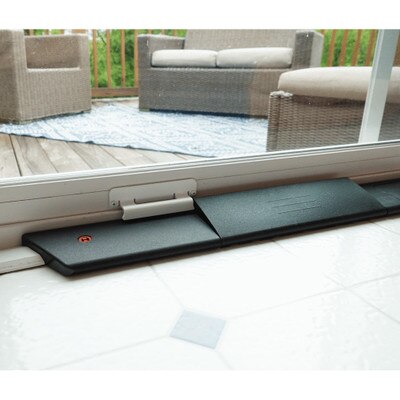

Ensure that your sliding glass door entryway is properly secured with the HAVEN Internal Frame Sliding Door Kit. This unique kit is specifically designed to work with any HAVEN lock (sold separately) and includes all of the hardware needed to install on the inside of a sliding glass door entryway. The kit comes in a white color but can easily be painted (use common finishing spray paint).

• Secures sliding glass door entryway with a bracket and any HAVEN Lock (sold separately)
• For internally tracked or framed doors that open to the left and to the right
• 3/4-inch depth and 1-1/2-inch depth options
• Made in the U.S.A.
• 10-year warranty

This kit is available in to 2 options:

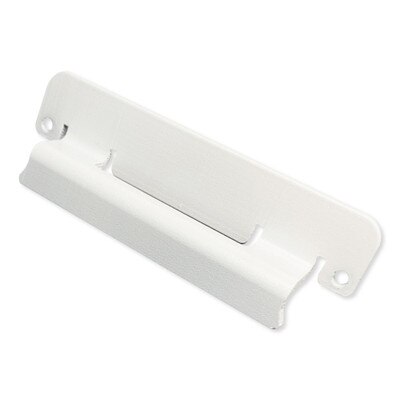

• 3/4-inch: This option has a 3/4-inch depth from the bracket lip to the attachment point on the door, which is great if you have a thinly framed sliding glass door.

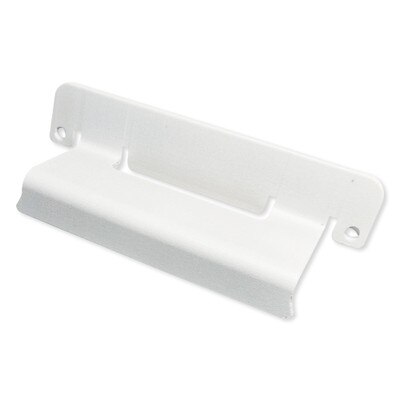

• 1-1/2-inch: This option has a 1.5 inch depth from the bracket lip to the attachment point on the door, which is ideal for sliding glass doors that have a thicker frame.

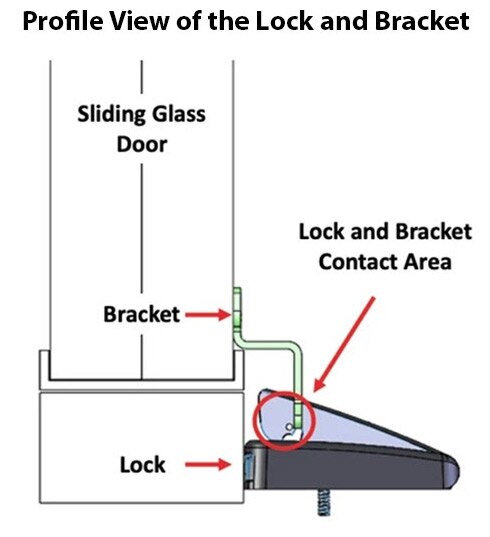

The main component of the HAVEN Internal Frame Sliding Door Kit is a bracket that makes contact with the side of the HAVEN Locking Gate:

Contents

• Bracket
• VHB Tape
• Screws

Notes

• It's recommended that you use both the VHB tape and the screws together when you install the bracket for maximum strength.
• You can also use Gorilla Glue that is construction grade (sold separately).

Find Your Safe Haven with HAVEN Locks

HAVEN is an American made and a veteran owned and operated company created with safety in mind. The idea for HAVEN Locks came from improvised applications of welded metal bars across the edges of door frames. HAVEN devices offer premium protection, easy installation, and keep you constantly connected to your home.

• Manufacturer Part #:
• HL1-SDK-OPA: 3/4-inch depth
• HL1-SDK-OPB: 1-1/2-inch depth
• UPC:
• HL1-SDK-OPA: 850018664011
• HL1-SDK-OPB: 850018664004
• Color: White (can be painted, use common finishing spray paint)
• Installation: For internally framed doors only
• Warranty: 10-Years

»HAVEN Sliding Glass Door Kit (SGDK) Bracket Sizing Guide (.pdf)
»HAVEN Sliding Glass Door Kit Installation Manual (.pdf)
