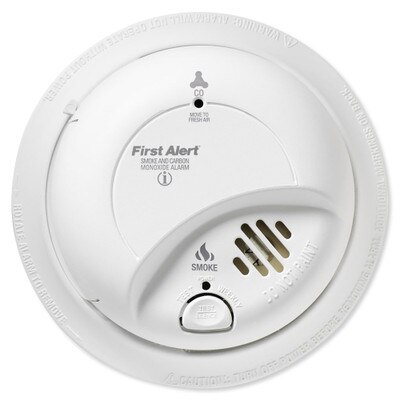

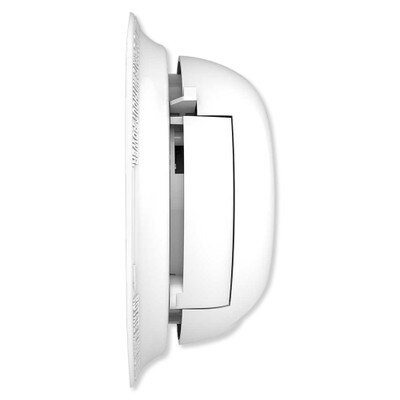

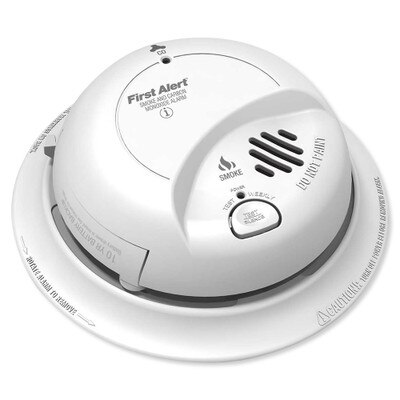

First Alert AC Smoke & Carbon Monoxide Alarm with Lithium Battery Backup

Detects Smoke & Carbon Monoxide

Keep your family safe from both smoke and carbon monoxide leaks with the First Alert AC Smoke & Carbon Monoxide Alarm with 10 Year Lithium Battery Backup. This detector features ionization technology and an electromechanical sensor with Intelligent Sensing Technology that reduces unwanted or nuisance alarms. It connects directly to your home electrical system and comes with a 10 year lithium battery backup.

• Intelligent Sensing Technology that reduces unwanted or nuisance alarms
• Improved UV resistance prevents discoloration over time
• Dust cover included to keep the alarm clean during construction
• Can be interconnected with other BRK Alarms
• Easy to install and maintain

Smart Technology

The alarm includes "Smart Interconnect" technology, enabling it to interconnect with other BRK Smoke, Heat, and "Smart Interconnect" CO Alarms. When smoke is detected, all alarms sound the distinctive smoke horn pattern. When CO is detected, all alarms sound the CO horn pattern. Alarms that do not have the "Smart Interconnect" feature remain silent during a CO alarm. Additionally, the Latching Alarm Indicator easily identifies the initiating alarm even after the alarm condition has subsided.

Latching Alarm Indicator

As part of the Smart Technology system, the Latching Alarm feature remembers which detector in your home initiated an alarm. When interconnected in a series of detectors, the unit that triggered the alarm rapidly flashes its red LED indicator. After the alarm condition subsides, the initiating unit will store in memory or "latch" the information and begin to flash the green LED indicator two seconds on, two seconds off, signaling the source of smoke.

First Alert Interconnect Alarms

This First Alert Alarm can be integrated into a mesh network with other First Alert Alarms using “Interconnect Technology”. First Alert Interconnect Alarms operate on a mesh network that integrates multiple wireless or wired alarms for better safety and response in an emergency. The mesh network of alarms re-routes and resends the signal via other First Alert alarms, providing a greater chance all alarms will receive the signal. Up to 18 total units can be interconnected, wireless or hardwired: with a maximum of 12 smoke alarms and 6 carbon monoxide alarms. Ordinarily, wireless and hardwired alarms cannot work together on the same interconnected network. However, with the hardwired bridge unit (model SA520B), hardwired and wireless models can be interconnected together on the same mesh network.

Easy Installation and Maintenance

This alarm is designed for easy installation with its Perfect Mount System, which includes a gasketless base and a mounting bracket that keeps the alarm secure over a wide rotation range to allow for perfect alignment. The alarm is also designed for easy maintenance. The mounting bracket features a large opening for easy access to wiring, and a side load battery drawer provides quick battery replacement without the need to remove the alarm from the ceiling or wall.

Contents

• Smoke Detector
• Dust Cover
• Mounting Bracket
• Installation Components

NOTE: Requires the 120VAC Smart Relay (sold separately) to activate an alert device.

BRK Brands: A Leader In Saving Lives

You can install BRK Brands, Inc. products with confidence! Our products are designed to save lives. It's a responsibility we don't take lightly. We build each smoke alarm, carbon monoxide alarm, heat alarm, and fire extinguisher to the highest standards. Over the years, we've seen competitors come and go. We're still here, still making the most recognized consumer brands of smoke and CO alarms on the market.

• Manufacturer Part #: SC9120LBL
• Audio Alarm: 85dB at 10 feet
• Test/Silence:
• Electronically simulates smoke or CO condition, causing the unit to alarm
• Press and hold test/silence button
• Alarm Reset: Automatic when smoke or CO clears
• Interconnections:
• Up to 18 units of First Alert or BRK Smoke, CO and Heat Alarms
• Maximum of 12 smoke alarms
• Smoke Sensor: Dual Ionization
• CO Sensor: Electrochemical
• Indicator Lights/Sounds:
• AC Power: Constant Green LED
• DC Power: Intermittent Red LED
• Local Alarm: Red LED flashes rapidly
• Remote Alarm: Red LED out
• Latching Alarm: Green LED flashes 2 sec. on/2 sec. off after local alarm
• Low Battery Latch: Green LED flashes on for 2 seconds, off for 2 seconds
• Operating Voltage: 120V AC 60Hz w/ 9V lithium battery backup
• Operating Current: 0.09 amps (standby/alarm)
• Temperature Range: 40°F to 100°F (4°C to 38°C)
• Humidity Range: 10% to 95% relative humidity (RH)
• Dimensions: 5.6(Dia) x 2.0(H) inches
• Weight: 8.5 oz
• Listing: Listed to UL217 and UL2034 Standards
• Warranty: 10-Year Limited

»First Alert SC9120LBL AC Smoke and CO Combo Alarm Spec Sheet (.pdf)
»First Alert SC9120LBL AC Smoke and Carbon Monoxide Alarm User Manual (.pdf)
